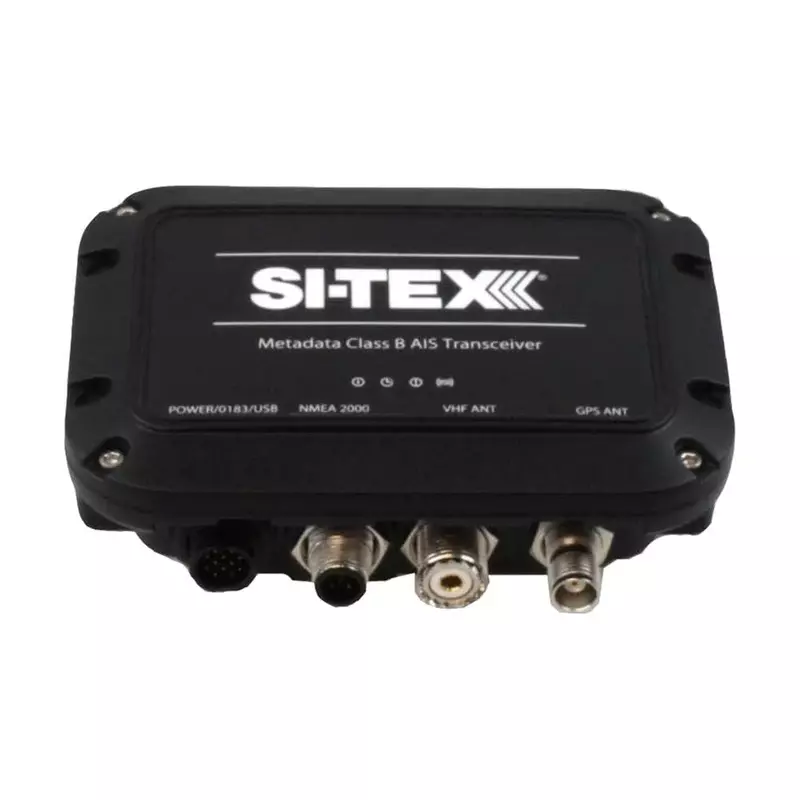

SI-TEX MDA-1 Metadata Class B AIS Transceiver w/Internal GPS - Must Be Programmed

MDA-1 Metadata Class B AIS Transceiver. As the FCC requires all units sold in the US to be programmed by a qualified technician, please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form. Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment. Class B AIS Transceiver featuring an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data. Unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna. Power: 12 to 24V DC. Power consumption: 150mA @12VDC. Data Interfaces: USB, NMEA2000, IEC61162-1 (NMEA0183) output (38400 baud) and input (4800 baud). Silent mode switch input. Supplied with 2m power and NMEA0183 cable, user manual and quick start guide, product CD, fixing screws. Display Included: No. GPS Included: Yes. Function: Receive/Transmit. AIS Class: B. Antenna Included: No. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

• Includes internal GPS antenna
• Receives and sends AIS data
• Class B transceiver
• Metadata AIS
