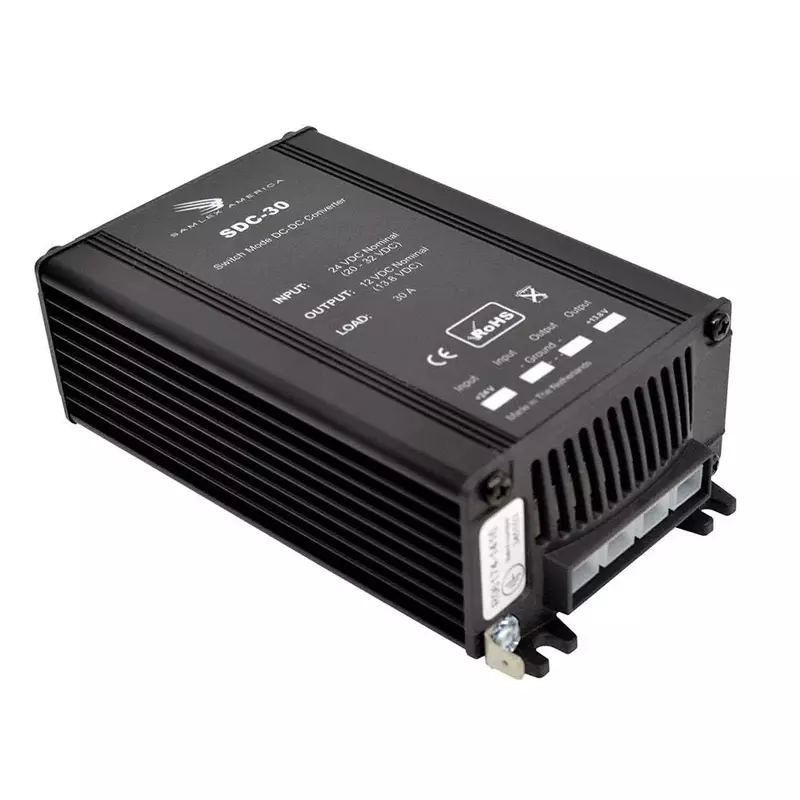

Samlex 30A Non-Isolated Step-Down 24VDC-12VDC Converter

30A Non-Isolated Step-Down 24VDC-12VDC Converter This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection. Features: Advanced switchmode design Mount in almost any location Compact and light weight Reverse polarity protection High efficiency Cycle by cycle current limiting circuit Overvoltage protection Short circuit protection Specifications: Input: 20-32 VDC Output: 13.8 VDC Amps: 30 Amps Weight: 1.2 (lbs) Weight: 0.54 (kg) Dimensions: 6 x 3.5 x 1.9 (in) Dimensions: 15.2 x 8.9 x 4.8 (cm) Warranty: 2 Year Limited Applications: Earth moving equipment Heavy trucks Buses Marine vehicles CB radios 12 Volt lighting systems AM/FM sound systems. Features from marketplace: High efficiency. Cycle by cycle current limiting circuit. Overload, over-heating, reverse polarity and over-voltage protection. Compact and light weight. Advanced switch mode design.

• High efficiency
• Cycle by cycle current limiting circuit
• Overload, over-heating, reverse polarity and over-voltage protection
• Compact and light weight
• Advanced switch mode design
