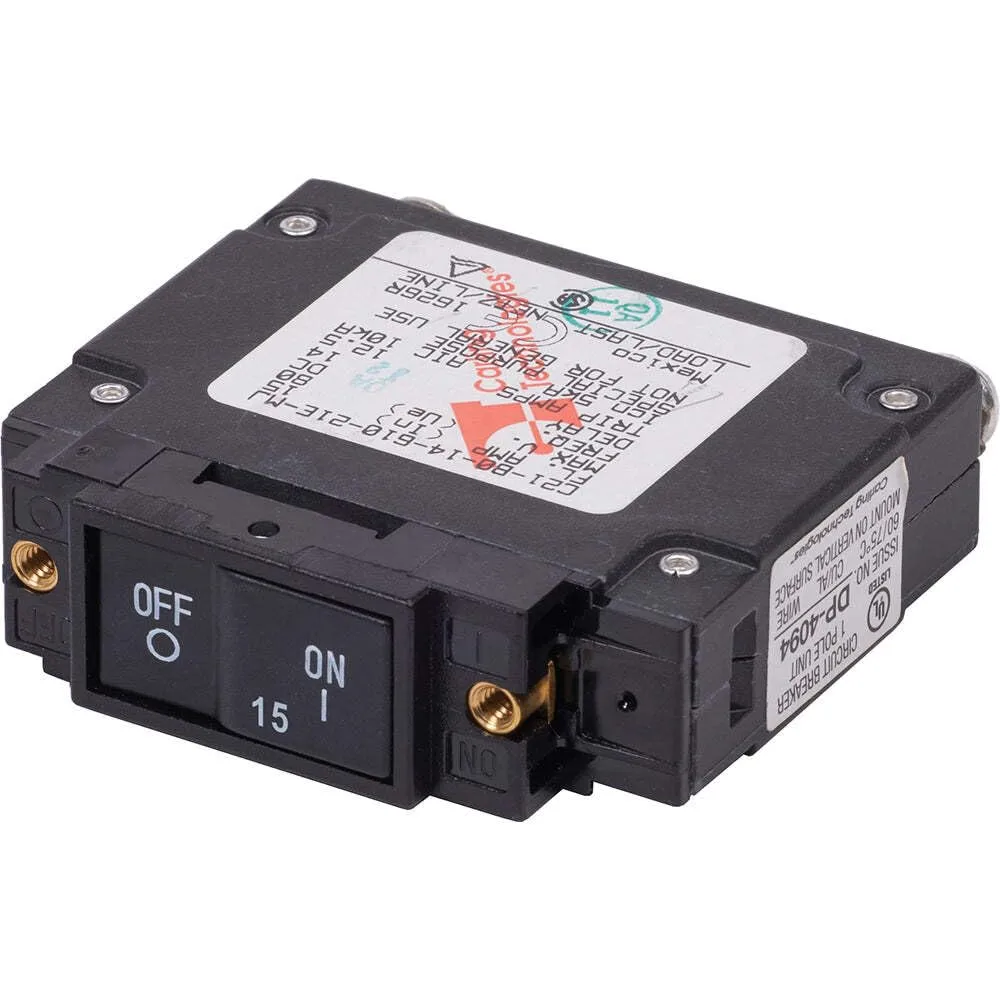

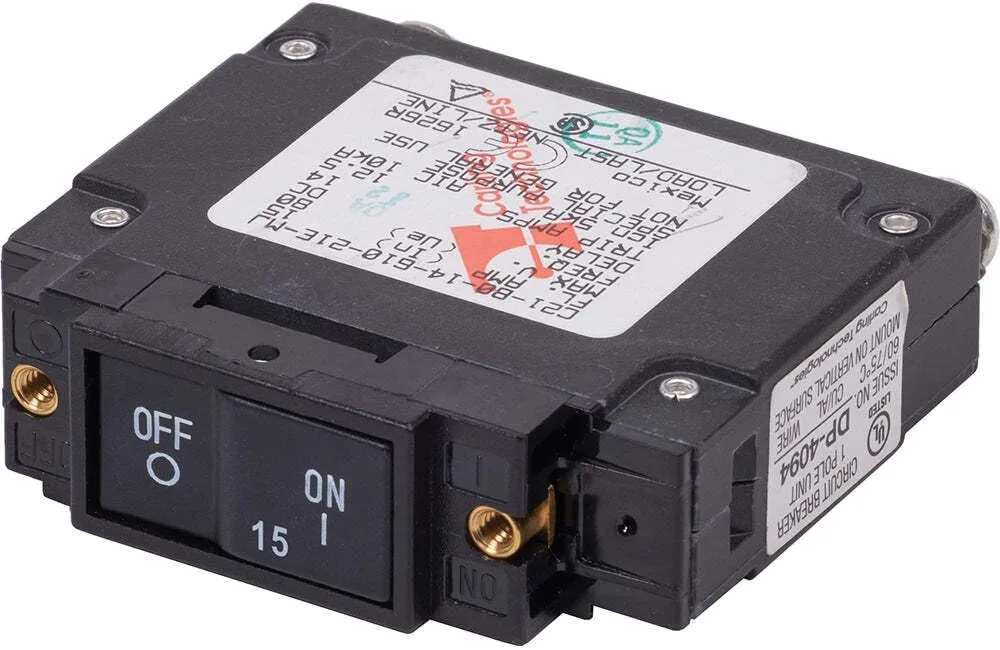

Blue Sea Systems 7442 Circuit Breaker C-Series Flat Rocker 15A DC UL489

7442 UL-489 Circuit Breaker - 15A Flat Rocker. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Features: 15A DC rating, flat rocker actuator, single pole design, maximum operating voltage 80V DC, terminal type #10-32 screw (tin-plated brass) with terminal torque 15-20 in-lb, mounting screw #6-32 SS with torque 7-9 in-lb. Interrupting capacity 10,000A. Temperature operating range -40°C to 85°C. Package and weight info: item weight ~0.25 pounds; package weight ~3.36 ounces; item package dimensions 4.38 x 2.69 x 0.94 inches. Manufacturer: Blue Sea Systems. Model: 7442 C-Series, UL-489 Circuit Breaker. Warranty: Lifetime.

• Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
• Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
• Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
• Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C
• 15A DC Flat Rocker UL 489 Circuit Breaker
