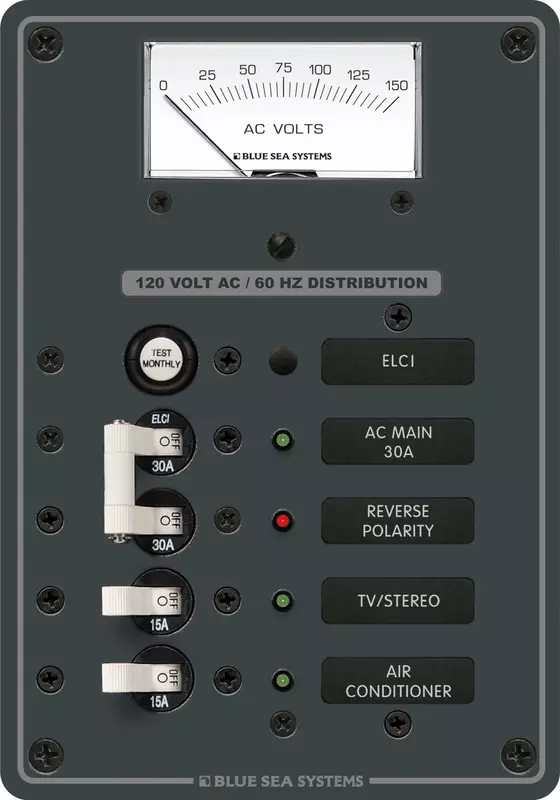

Blue Sea Systems 8102 ELCI Main 30A Double Pole + 2 Positions with Voltmeter
Customize
ELCI Main 30A Double Pole + 2 Positions with Voltmeter. One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperage - 30 mA. ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection. Red "Reverse Polarity" LED. All circuit label positions are backlit "ON" indicating LEDs. Nickel-plated brass and phenolic non-corrosive construction. Specifications: Positions 2. Nominal Voltage 120V AC. Leakage Trip Amps 30mA. Height 5.25" (133.35mm). Width 7.50" (190.5mm). Depth 3.50" (88.9mm). Weight 2.25lb (1.02kg). AC/DC: AC. Max Breaker Quantity: 2. Voltage: 120V. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Nickel-plated brass and phenolic non-corrosive construction
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperage - 30 mA
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC/DC | Ac |
| Circuit Breaker Type | Standard |
| Current Rating | 30 Amps |
| Included Components | Great Product |
| Max Breaker Quantity | 2 |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Number Of Poles | 2 |
| UPC | 632085081027 |
| Voltage | 120v |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 11 inches |
| Product Dimensions | 11 x 9 x 5 inches |
| Size | One Size |
| Weight | 2.3 pounds |
| Width | 9 inches |
| Technical Specifications | |
| Item Package Dimensions L x W x H | 12 x 9.2 x 4.4 inches |
| Warranty | Warranty |
