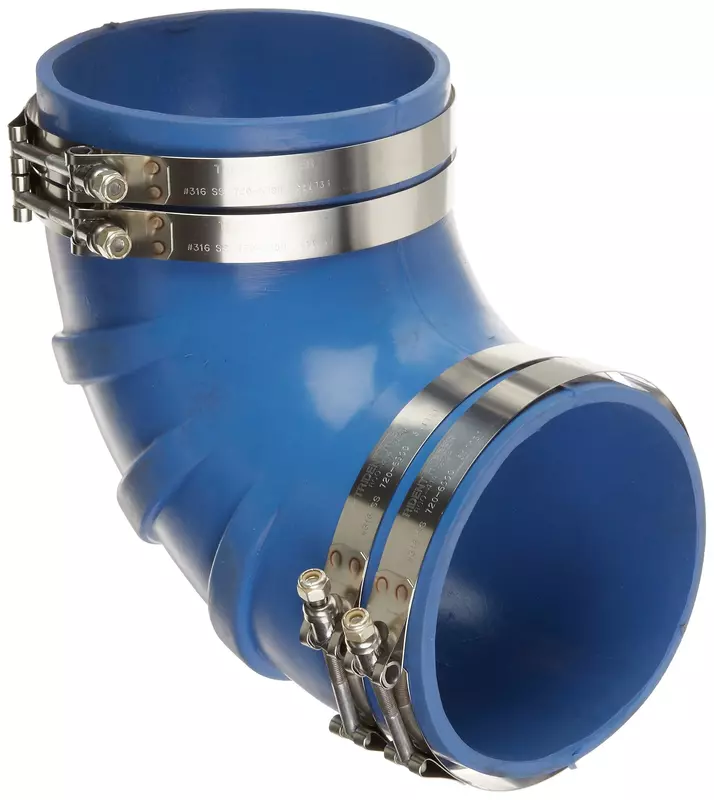

Trident Marine 6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps
Customize
Great Product 6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside. Features: Four stainless steel t-bolt clamps Very high temp silicone/EDPM blend rubber - molded This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous Construction: Color: Blue Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 350°F (177°C) Specifications: Inner Diameter: (inch) 6” / 152.4 mm A: (inch) 7” / (mm) 178 B: (inch) 7” / (mm) 178 C: (inch) 2.25” / (mm) 57.2 D: (inch) 2" / (mm) 57.2 R: (inch) 1.75” / (mm) 44.5 W: (inch) 0.25" / (mm) 6.4 Elbow Degree: 90 degrees, ID Diameter (inches): 6"
Materials & Construction
- Color:No Color
- Material:Plastic
Product Details
- Global Trade Identification Number:00704917002125
- UPC:704917002125
Sizing & Dimensions
- Height:5.2 inches
- Id Diameter (Inches):6"
- Length:9.4 inches
- Product Dimensions:9.4 x 6.8 x 5.2 inches
- Weight:5 pounds
- Width:6.8 inches
Technical Specifications
- Elbow Degree:90 degrees
- Temperature Range:up to 350°F (177°C)
