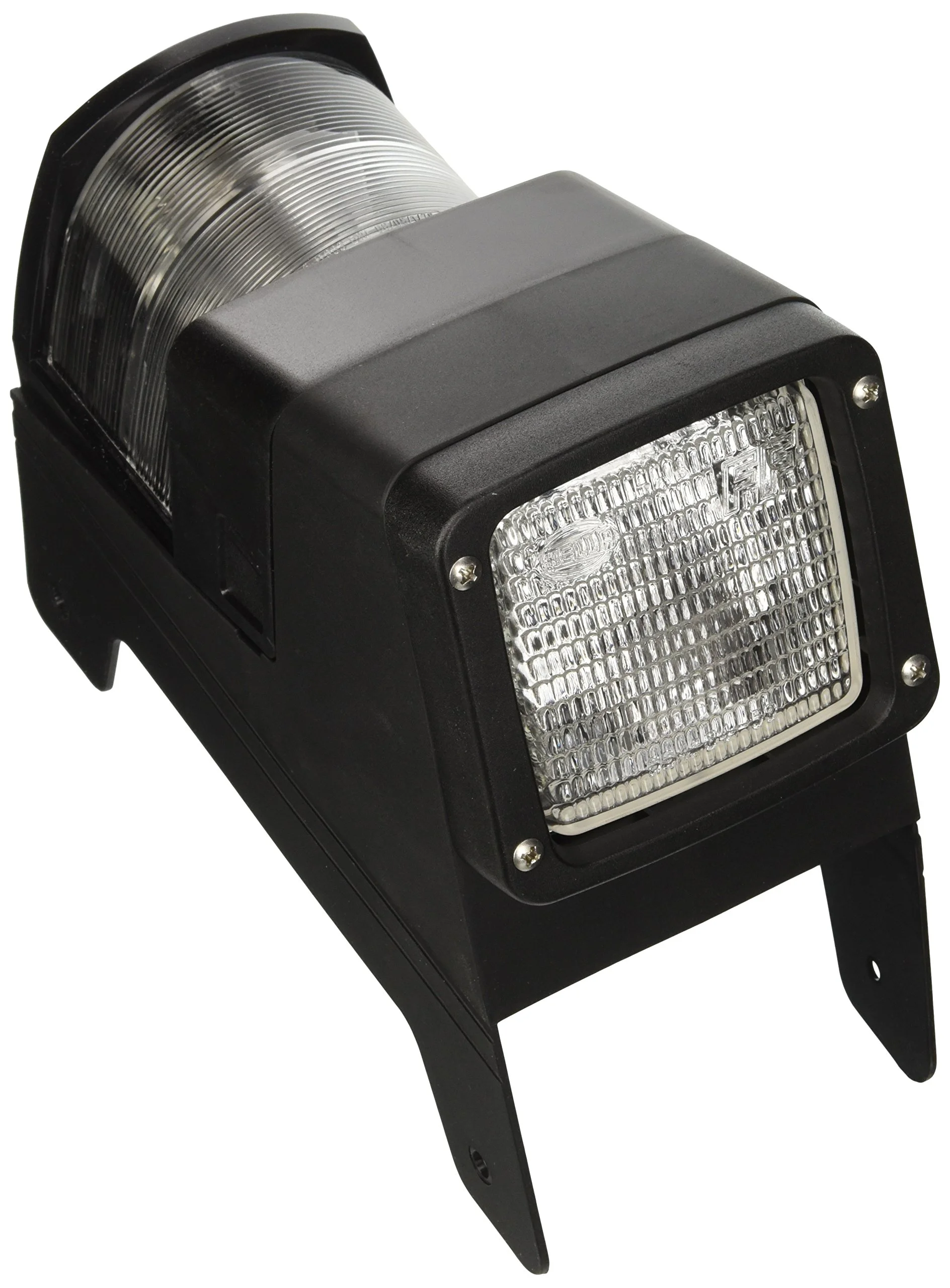

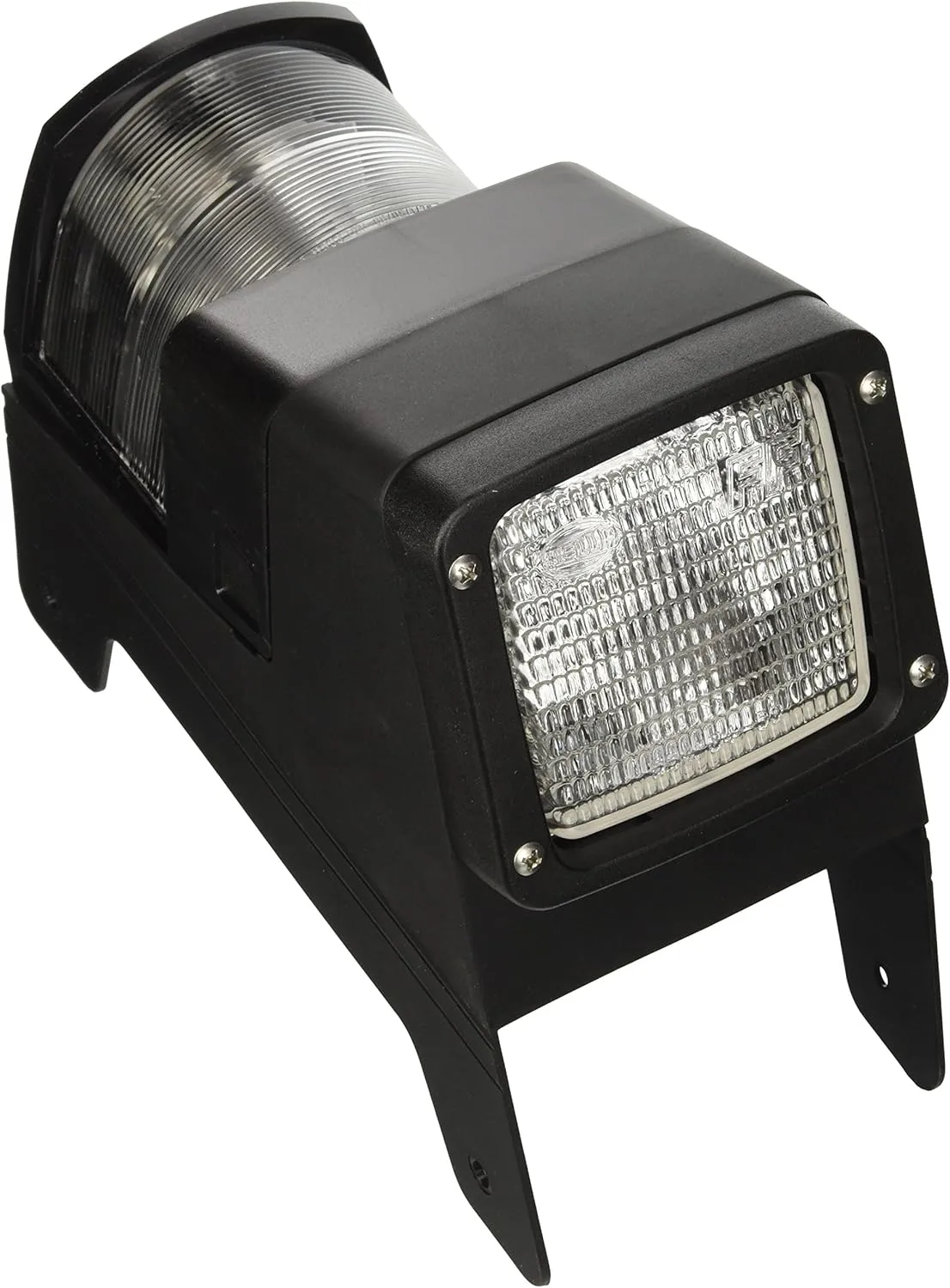

Halogen 8504 Series Masthead/Floodlight Lamp - Black. Deck Floodlight and Masthead Lamp combined in one robust housing. Suitable for vessels less than 20m in length. Features: 3 Nautical Mile Masthead lamp; Hella 'Free Form' reflector technology; flexible mounting arms for mounting on a variety of mast profiles; illuminates large areas of deck or superstructure; glass lens bonded with reflector to be dust and moisture resistant; covered bulbs for moisture protection; all metal parts are stainless steel. Specifications from manufacturer and product data: Housing Description: UV and impact resistant plastic housing. Bulb: 12V / 10W BAY15d and 12V / 55W H3 bulbs included. Mounting: Navigation lamp and Deck Floodlight require separate wiring; housing arms flex to fit around mast profile. Degree of Protection: IP X4. Maximum Output: Deck lamp 12V / 55W or 24V / 70W (not suitable for 100W bulbs). Approvals: BSH, IMO COLREG, USCG, RINA, ABYC A-16, NMSC, Maritime NZ. Lens Color: White. Housing: Black. Voltage - Input Range (Volts): 12v. LED: No.
| Materials & Construction | |
| Color | Black |
| Material | Glass |
| Outer Material | UV and impact resistant plastic housing |
| Product Details | |
| Auto Part Position | Right |
| Housing | Black |
| Led | No |
| Lens Color | White |
| Lens Material | Glass |
| Special Feature | Waterproof |
| Voltage - Input Range (Volts) | 12v |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 9 x 5 inches |
| Weight | 2.2 pounds |
| Width | 9 inches |
| Technical Specifications | |
| Approvals | BSH, IMO COLREG, USCG, RINA, ABYC A-16, NMSC, Maritime NZ |
| Bulb | 12V / 10W BAY15d and 12V / 55W H3 bulbs included |
| Degree of Protection | IP X4 |
| Maximum Output | Deck lamp 12V / 55W or 24V / 70W |
