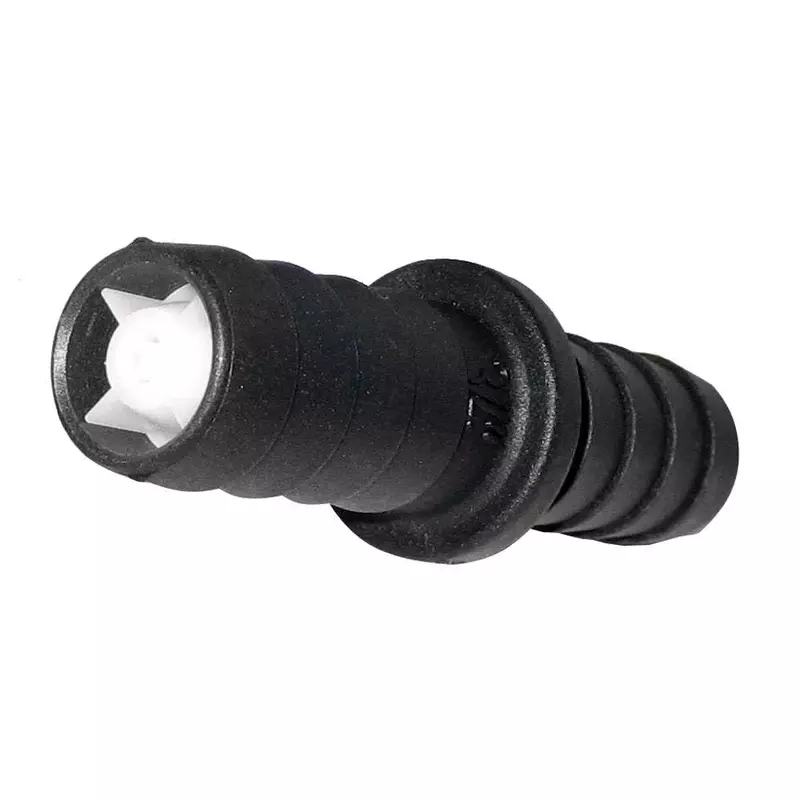

TRUDESIGN TD90845 Check Valve
Customize
Check Valve - 3/4". TRUDESIGN TD90845 Check Valve is a compact lift check valve designed for marine and general plumbing use. Constructed of durable plastic with a painted exterior finish, it features flange inlet and outlet connections (inlet 0.75", outlet 3/4") and two ports. The valve is rated to a maximum operating pressure of 15 bars and meets ISO 9001 standards. Raritan manufactures equipment for pleasure boats worldwide including marine toilets, waste treatment systems, icemakers and water heaters; their parts are designed for marine applications and environmental protection. Flow rates: 15 - 42 litres/min (0 - 11 gpm); hose diameter 19 mm (3/4 inches). Item dimensions: 3.94 x 1.97 x 1.18 inches. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Easy to use
- Flow rates: 15 - 42 litres/min/4, 0 - 11 gpm
- Hose diameter: 19 mm (3/4 inches).
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Exterior Finish | painted |
| Included Components | TRUDESIGN TD90845 Check Valve |
| Inlet Connection Size | 0.75 Inches |
| Inlet Connection Type | Flange |
| Maximum Operating Pressure | 15 Bars |
| Model Name | TRUDESIGN TD90845 Check Valve |
| Number of Items | 1 |
| Number of Ports | 2 |
| Outlet Connection Size | 3/4 Inches |
| Outlet Connection Type | Flange |
| Specification Met | ISO 9001, UPC |
| Specification Met Notes | ISO 9001, UPC |
| Valve Type | Lift Check Valve |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.18 inches |
| Length | 3.94 inches |
| Product Dimensions | 3.94 x 1.97 x 1.18 inches |
| Size | 3/4 Inches |
| Weight | 1.06 ounces |
| Width | 1.97 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00047440802016, 09421007123157 |
| Maximum Operating Pressure | 15 Bars |
| Number of Ports | 2 |
| Specification Met | ISO 9001, UPC |
