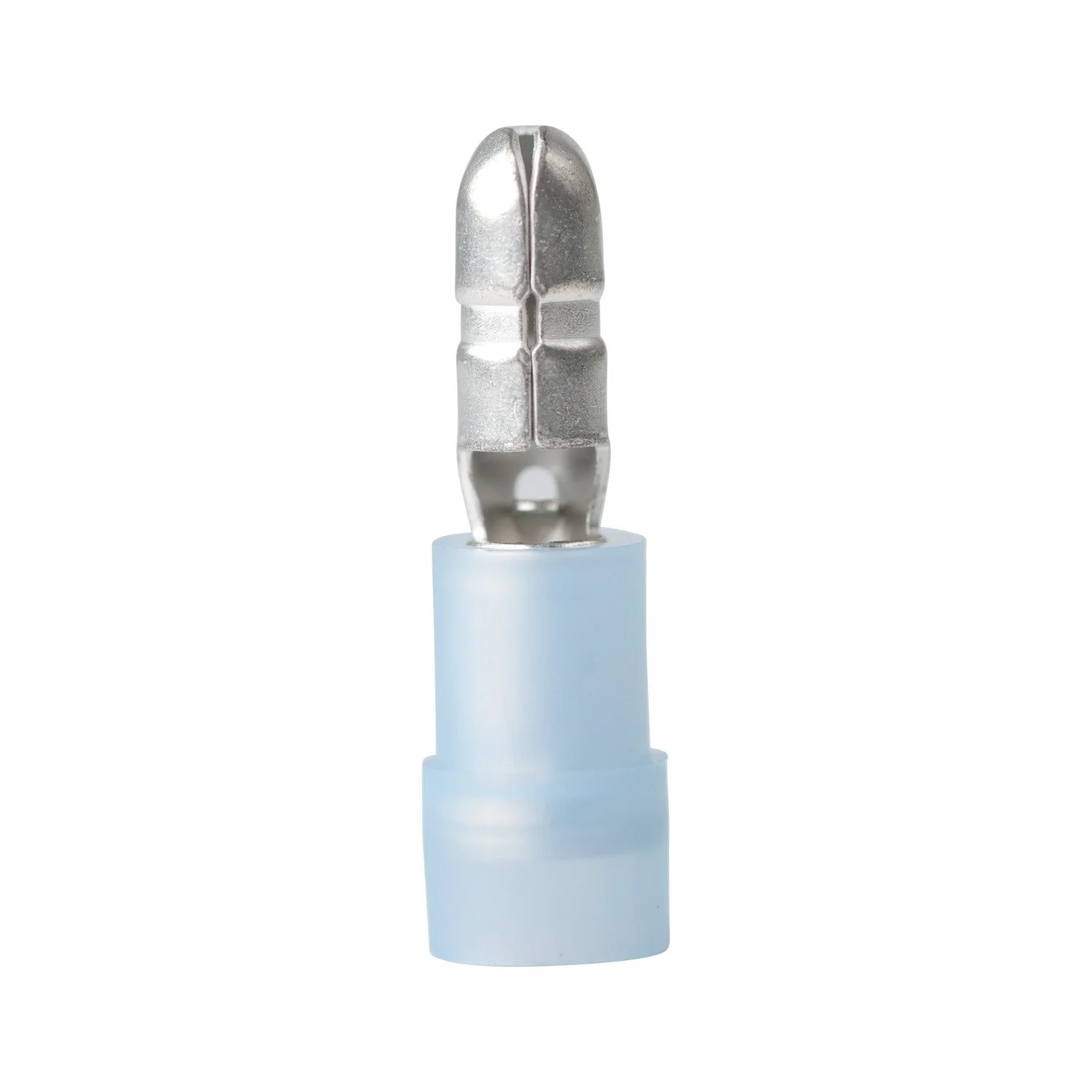

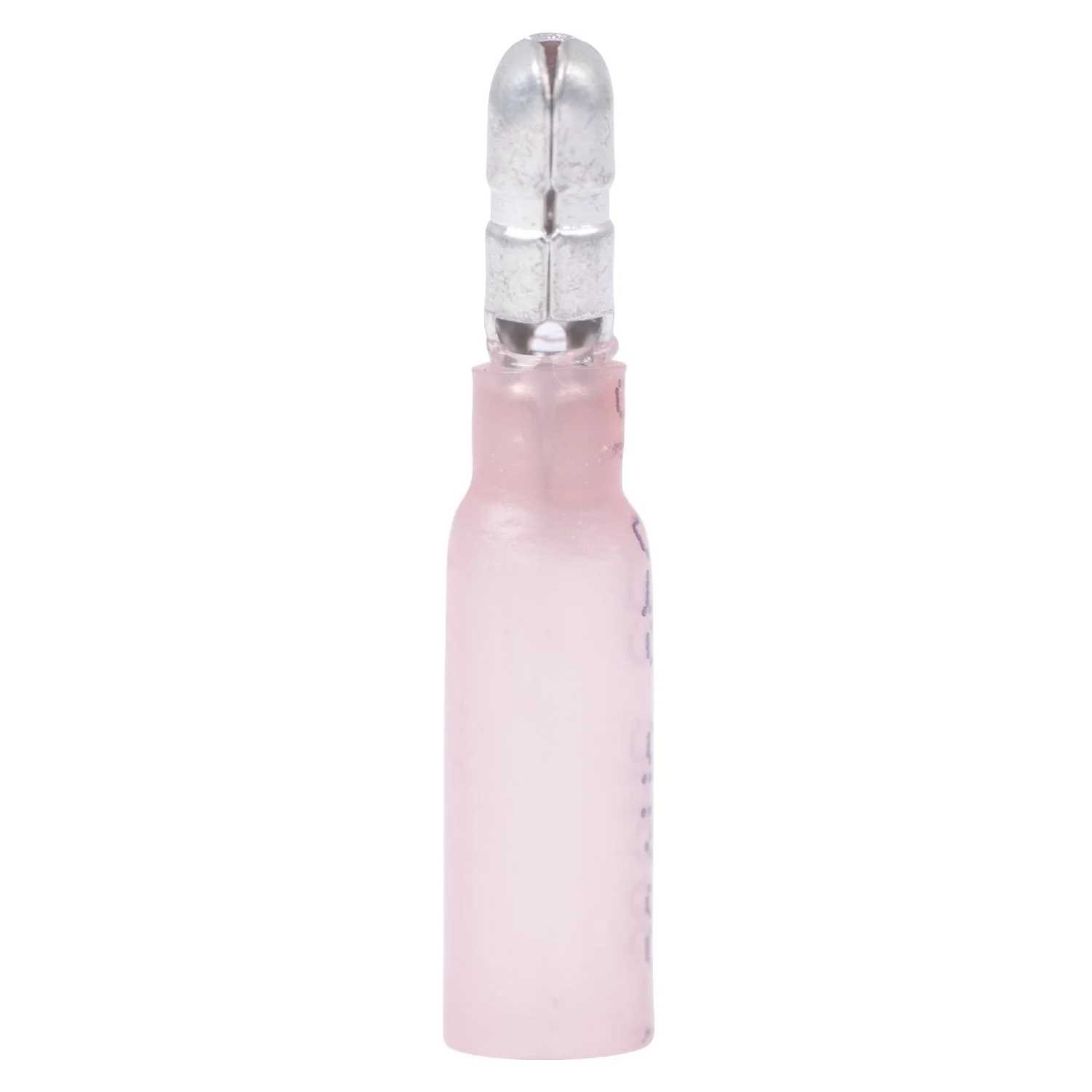

Ancor Marine Grade Nylon and Heat Shrink Snap Plugs
Customize
Ancor marine-grade nylon heat-shrink snap plugs are designed to create reliable, watertight electrical connections with built-in strain relief. The cross-linked polyolefin tubing is stronger than PVC and features a heat-activated adhesive lining that bonds to wires and seals against salt water, oil, acids and sunlight. Nylon insulators improve resistance to vibration and cut-through damage while tinned or pure copper contacts with a brazed seam provide maximum current flow and corrosion resistance. These heat-shrink connectors offer a high shrink ratio (shrinks to 1/3 of original size) and shrink at 257°F (125°C), with an operating temperature range commonly listed as 40°C to 110°C. UL Listed and CSA Recognized. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Materials & Construction
- Contact Material:Copper
- Insulation Material:Polyolefin
- Outer Material:PVC, Nylon
Product Details
- Included Components:Ancor 318999 Heat Shrink Snap Plug - Male 22-18, 100pc
- Number of Items:100
- Style:Heat Shrink, Male
- Terminal:Screw Terminal
- Type:Snap Plugs
- Unit Count:1.0 Count
