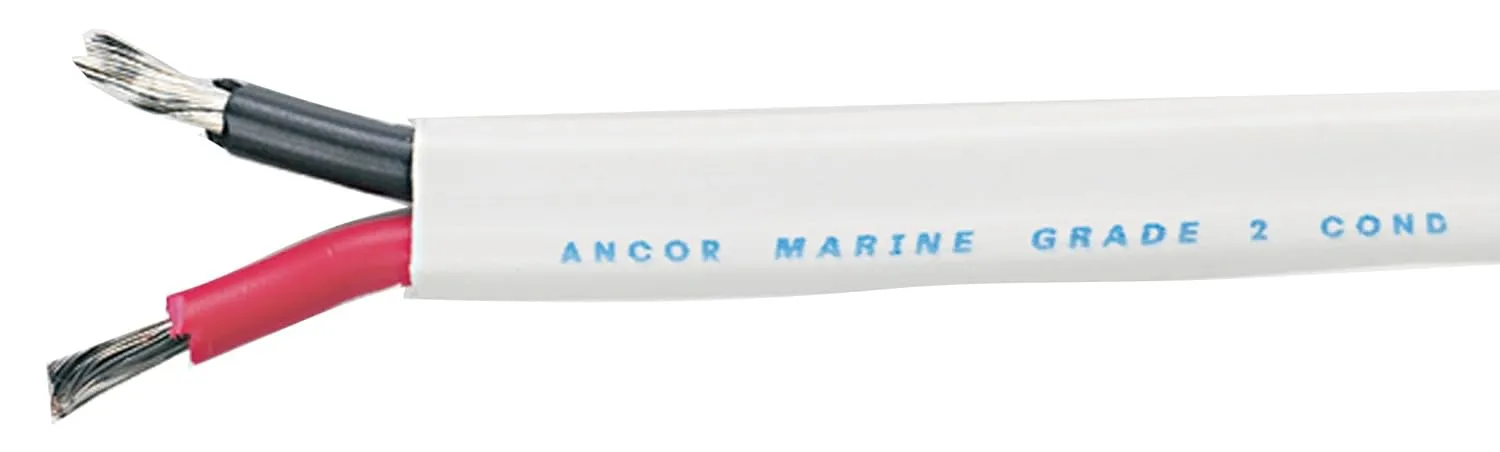

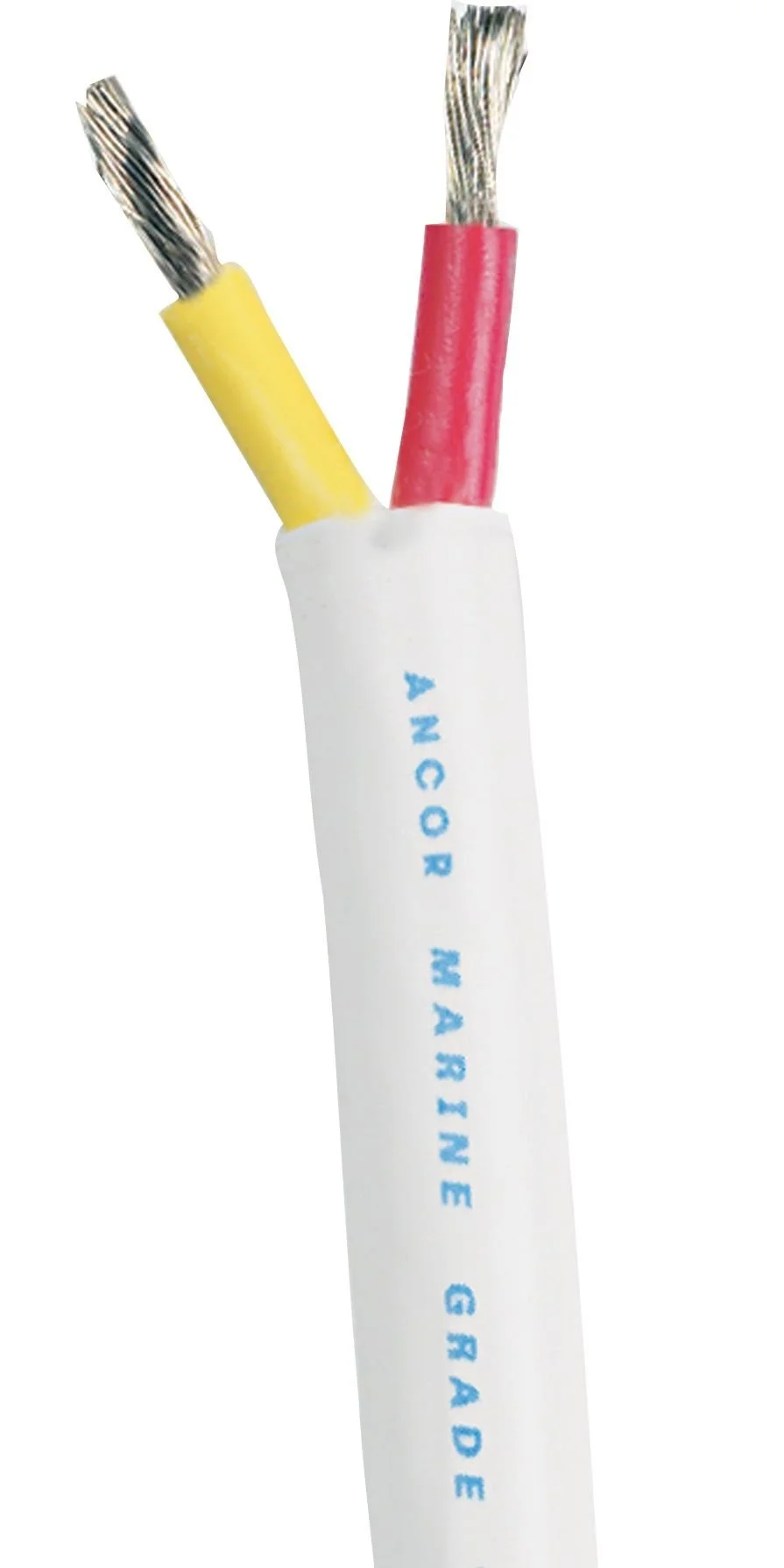

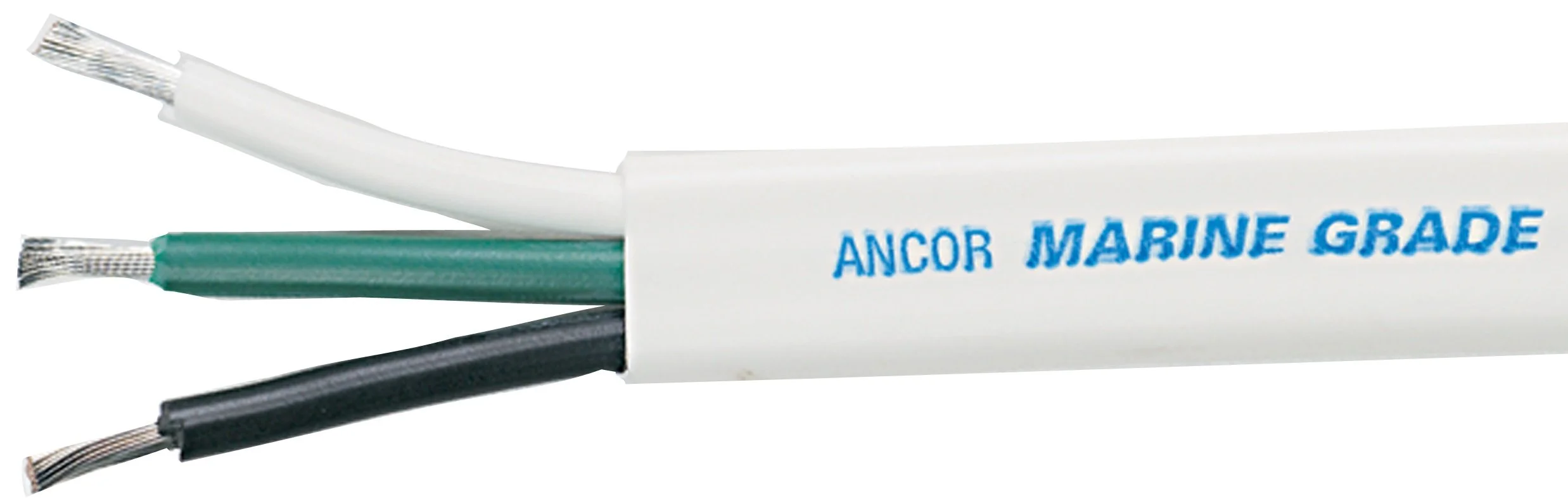

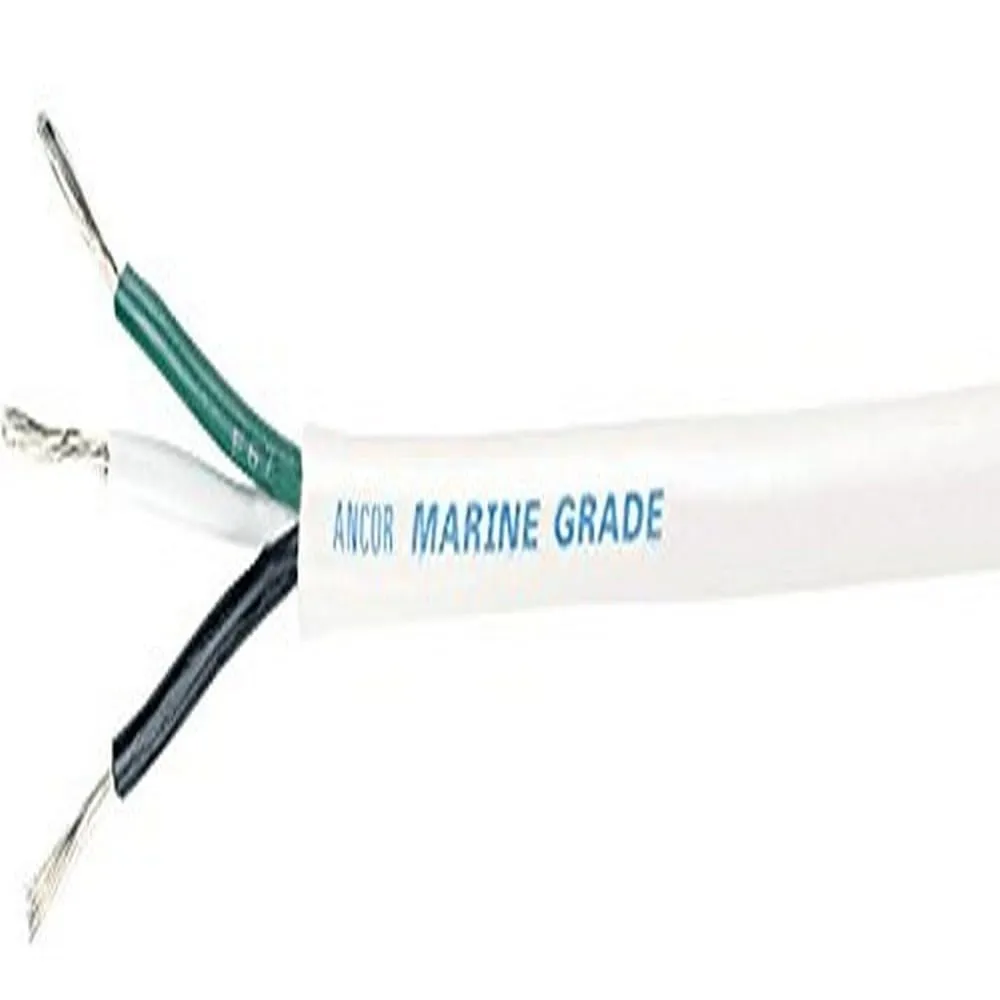

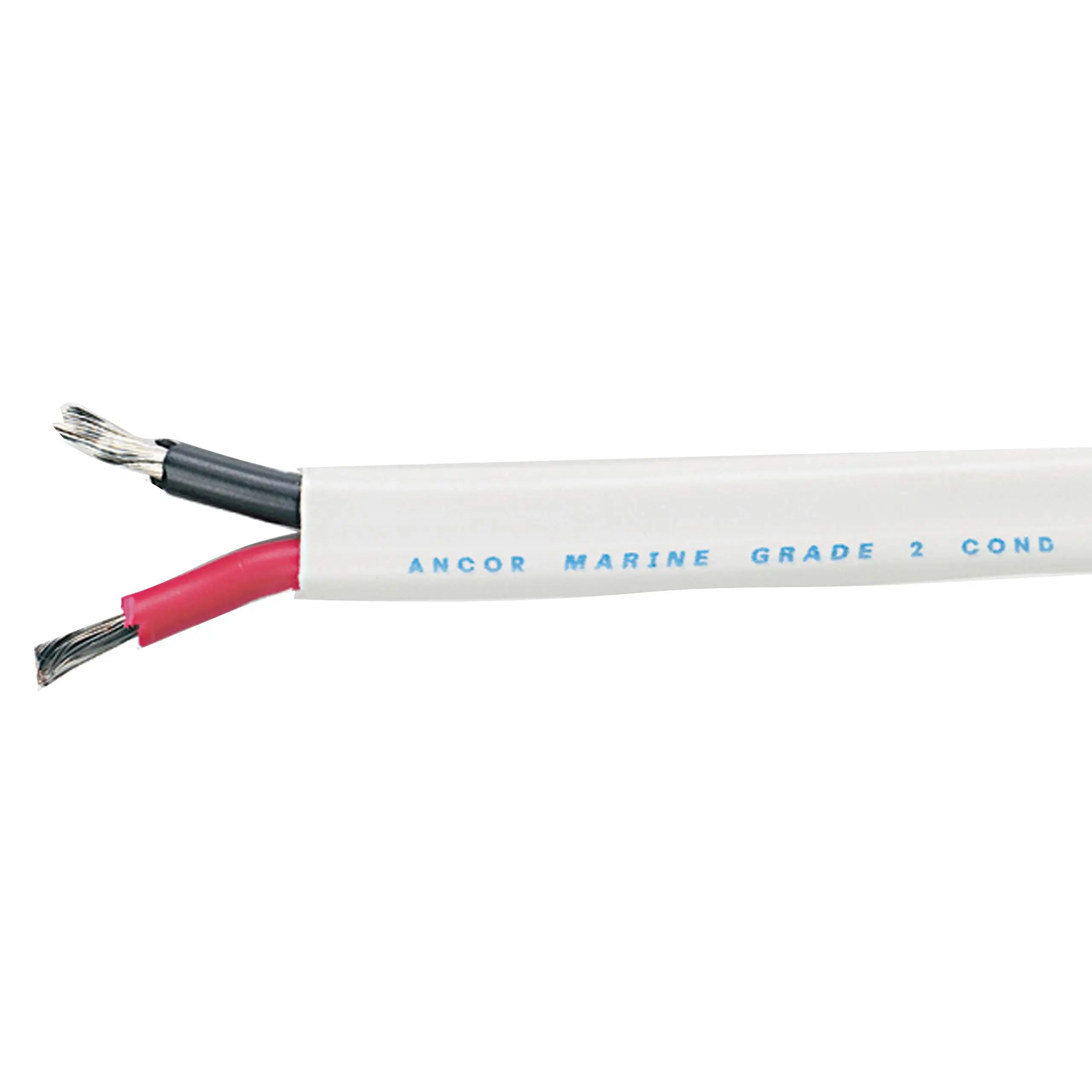

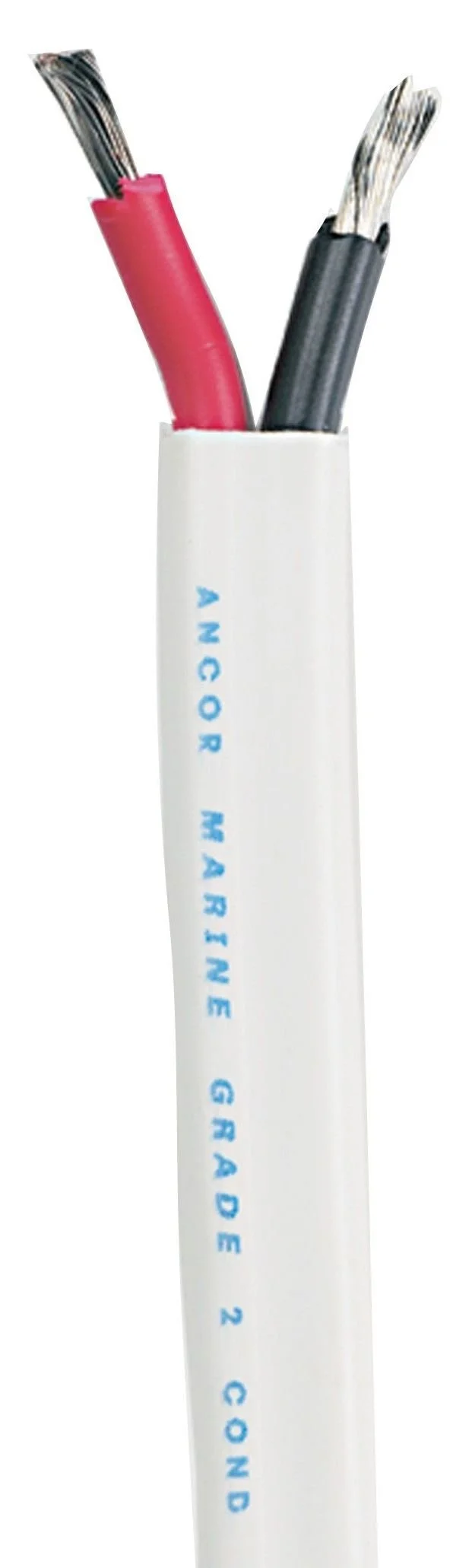

ANCOR Marine Duplex & Triplex Cable, Tinned Copper, 600V
Customize
ANCOR Marine Grade duplex and triplex cable family delivers marine-rated wiring solutions constructed from tinned copper multi-strand conductors and proprietary premium vinyl insulation. Ultra-flexible Type 3/Class K stranding resists fatigue from vibration and flexing and provides corrosion and electrolysis protection. Cables are available in flat and round profiles with correctly color-coded primary conductors for standard and safety wiring, and an outer white jacket engineered for easy removal and superior abrasion resistance. Insulation is rated 600 volts, 105°C dry and 75°C wet and the designs resist salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation; many variants stay flexible to -40°F. Products are made to surpass UL 1426, ABYC and US Coast Guard (CFR Title 46) standards for marine use. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm.
Specifications:
| Product Details | |
| Country of Origin | USA |
| Is Discontinued By Manufacturer | No |
| Sizing & Dimensions | |
| Weight | 15.6 pounds |
| Technical Specifications | |
| Gauge (numeric) | 8 |
| Insulation Rating | 600 volts, 105C dry and 75C wet |
