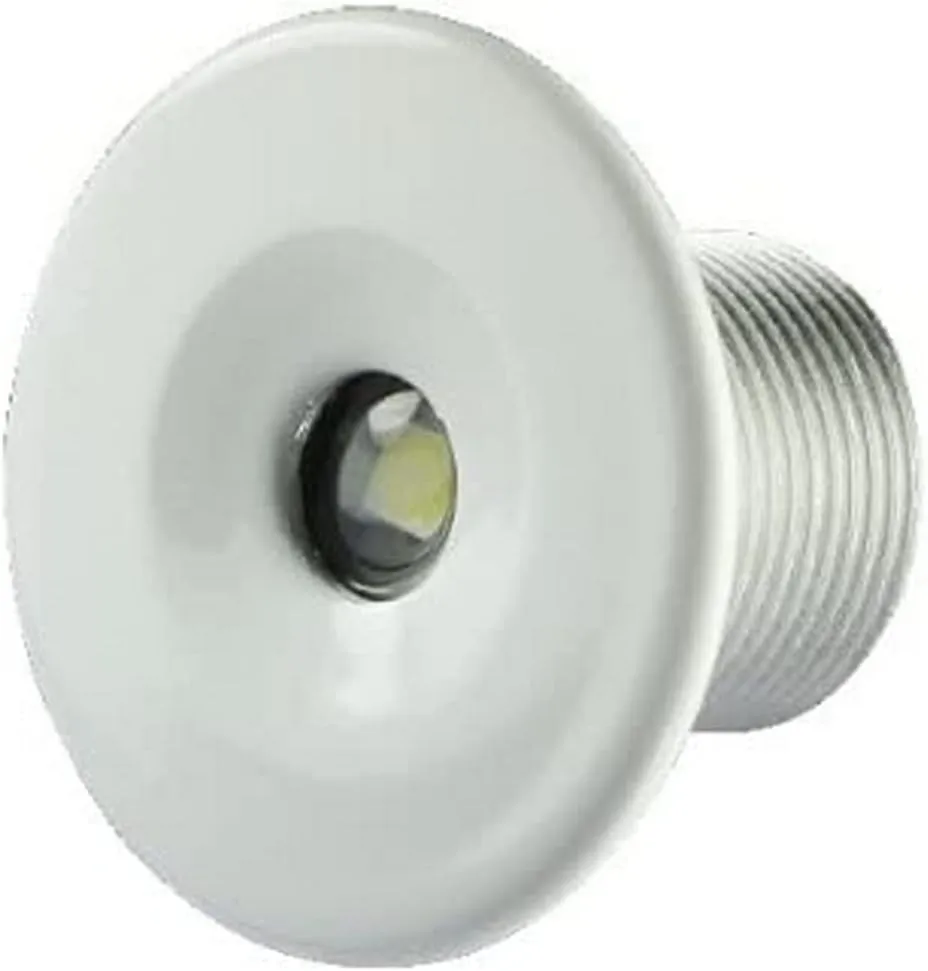

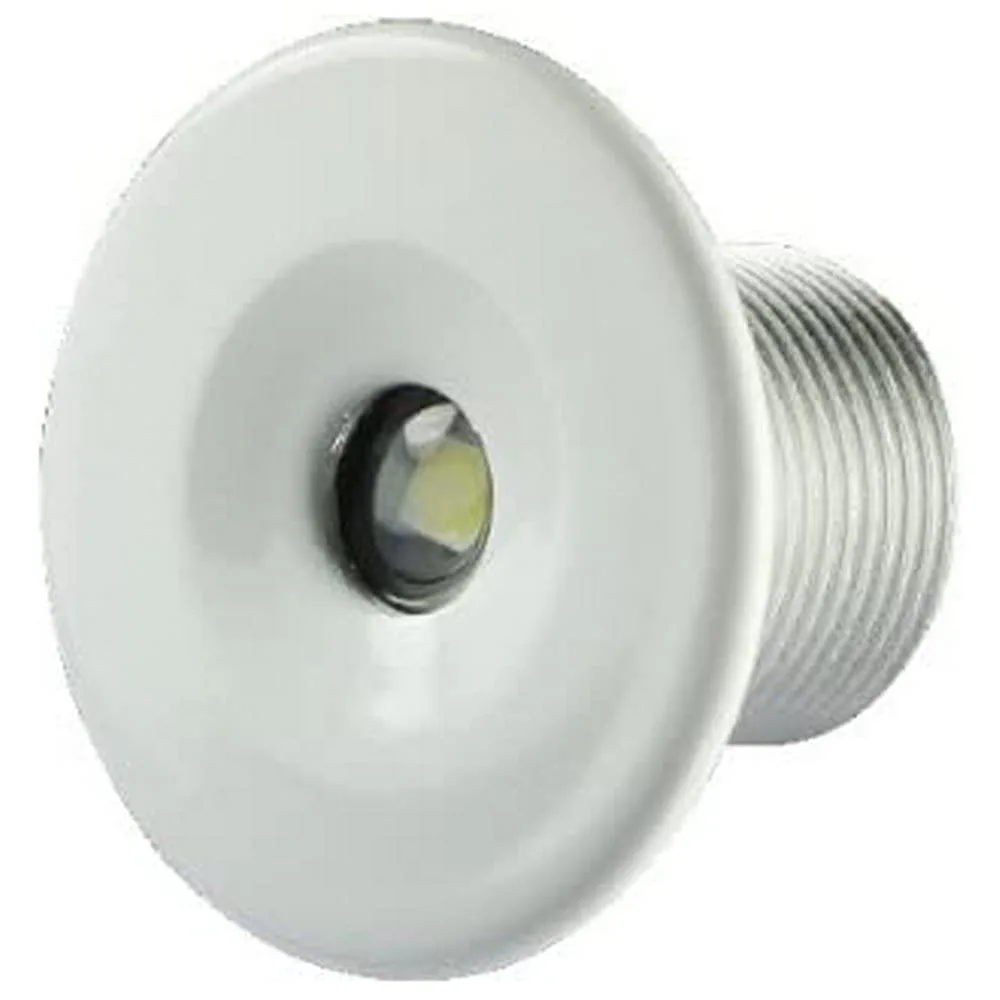

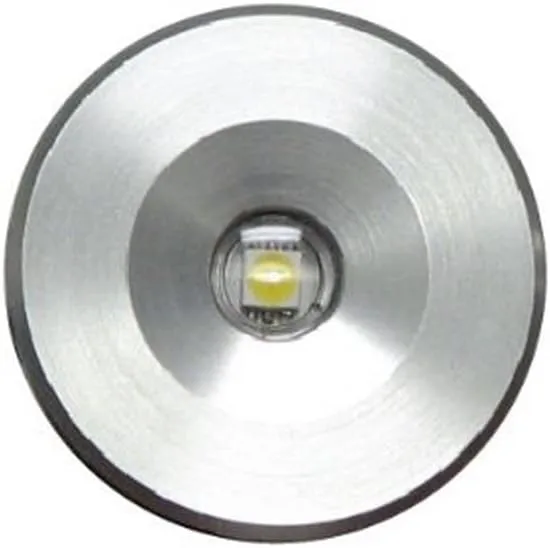

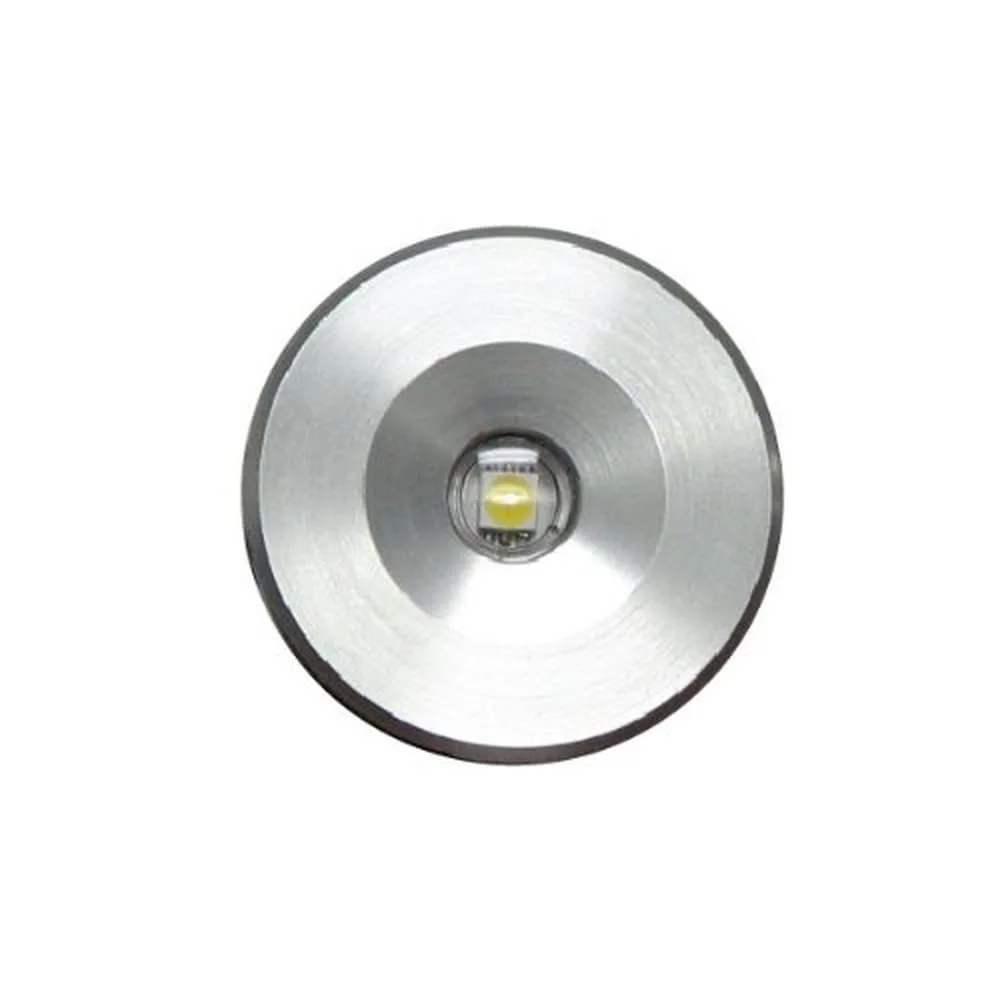

LUMITEC Echo Courtesy/Accent Light, 12 Volt LED
Customize
The LUMITEC Echo courtesy/accent light family delivers high output from a very small, low-profile LED fixture. Measuring about 1" in diameter, Echo is nearly flush and easy to install, with a mounting hole diameter of 11/16", a depth of 0.81" (2.06 cm) and an overall diameter of 1.24" (3.15 cm). Electrically optimized for 10-16V DC operation (12V DC nominal), Echo draws approximately 45mA at 12V, consumes 0.55 watts, and produces about 45 lumens with a 5000K CCT and 70+ CRI. Echo is fully sealed and IP67 compliant for interior and exterior use, operates from -31°F/35°C to +131°F/55°C, and supports third-party dimmer compatibility. Timed Toggled Protocol (TTP) is not supported; Color Match Commitment (CM) is indicated. These features make Echo suitable for compact accent and courtesy lighting in a variety of installations.
Specifications:
| Materials & Construction | |
| Outer Material | Plastic |
| Product Details | |
| Assembly Required | No |
| Brightness | 45 lumen |
| Control Method | Remote |
| Efficiency | 81.82 |
| Finish Type | Painted |
| Fixture Type | Non Removable |
| Included Components | Echo Courtesy Light, White, White |
| Indoor/Outdoor Usage | Outdoor |
| Installation Type | Semi Flush Mount |
| Light Color | White |
| Light Color Description | White |
| Light fixture form | Wall |
| Light Source Type | LED |
| Lighting Method | LED |
| Model Name | Echo Courtesy Light, White, White |
| Mounting Type | Ceiling Mount |
| Number of Light Sources | 1 |
| Power Source | Corded Electric |
| Room Type | Living Room |
| Shade Color | White |
| Shade Material | Plastic |
| Sizing & Dimensions | |
| Weight | 2.12 ounces |
| Technical Specifications | |
| Bulb Type | Led |
| Dimming | Yes |
| Light Source Type | LED |
| Power Source | Corded Electric |
| Water Resistance Level | Waterproof |
