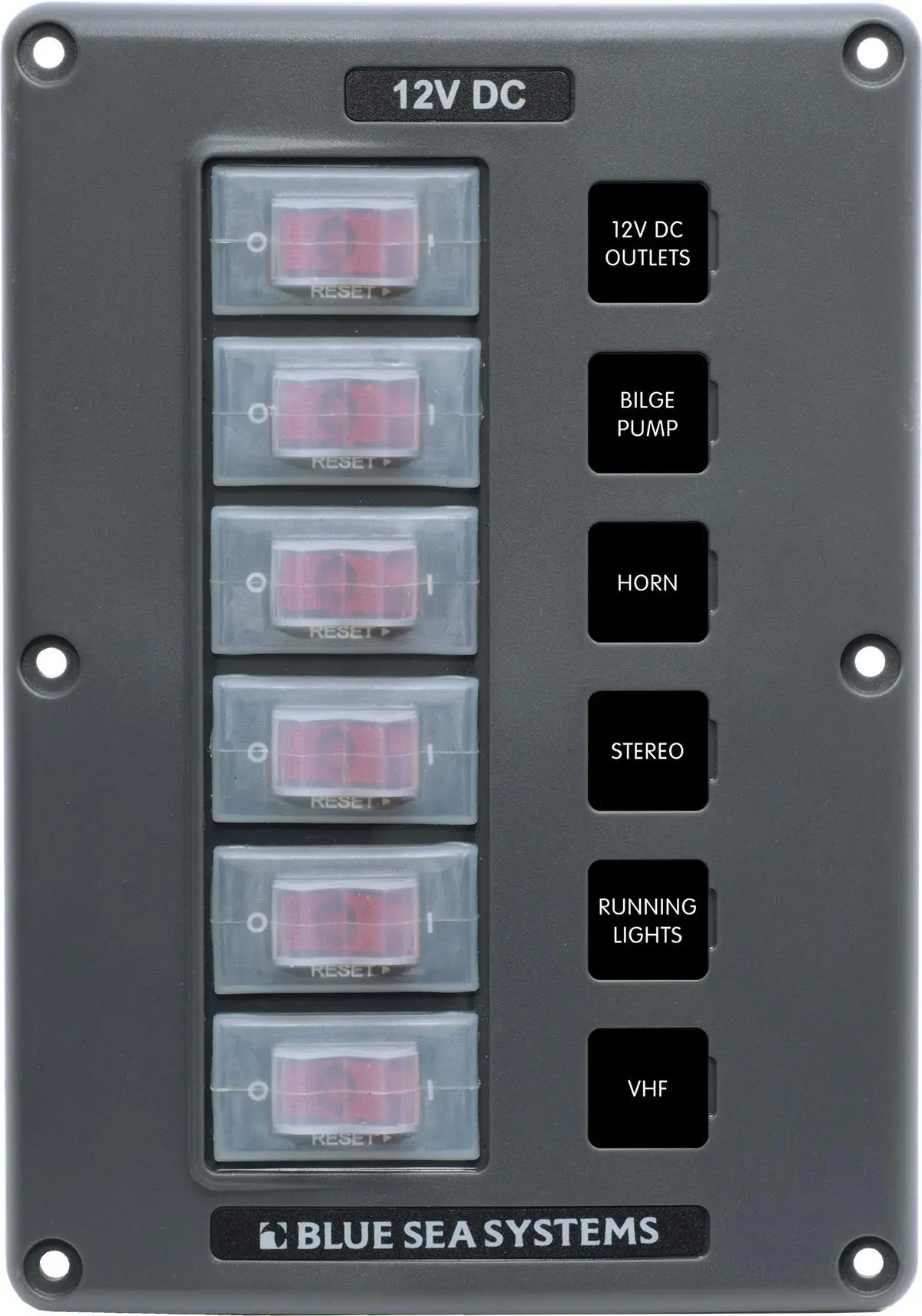

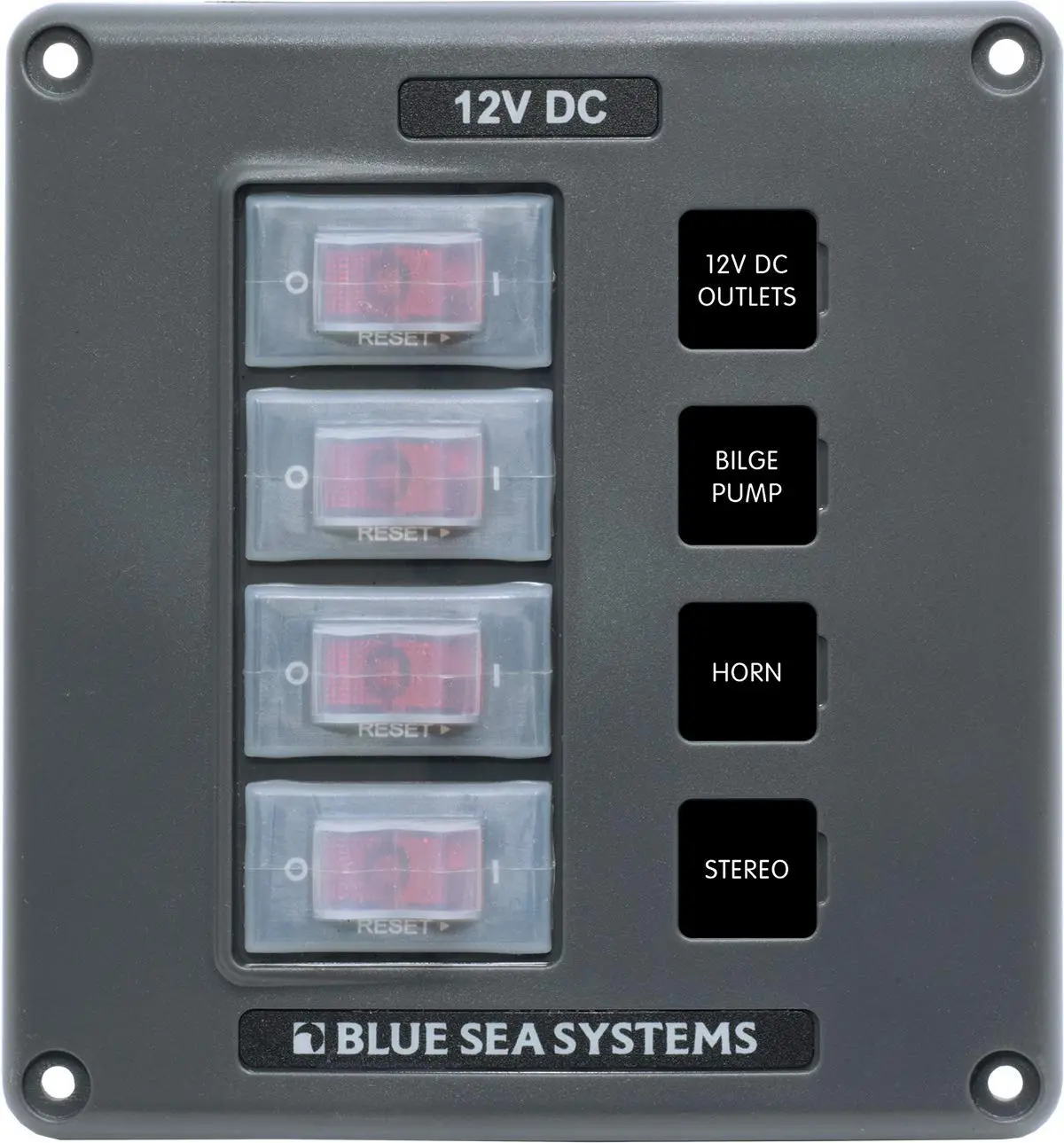

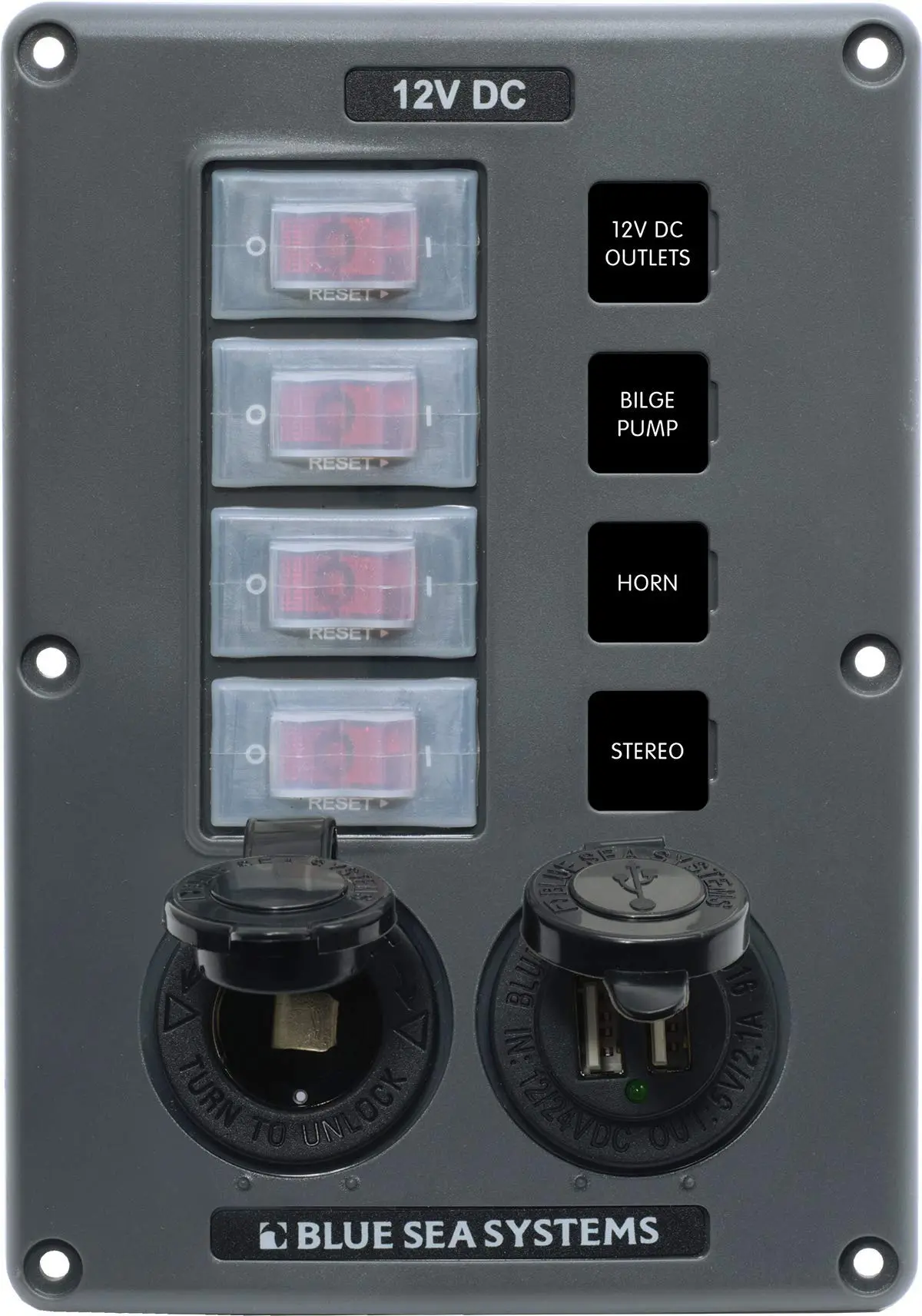

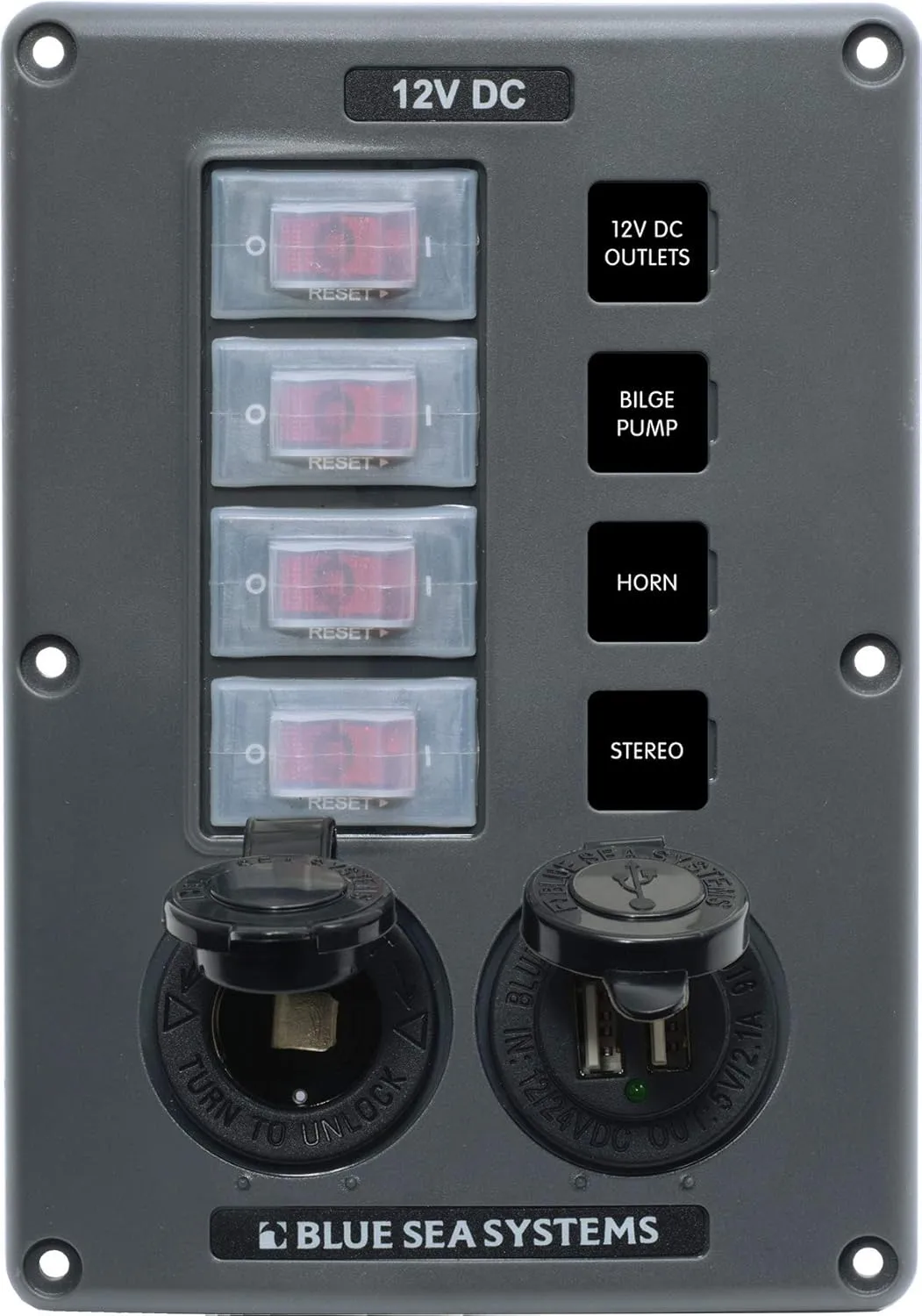

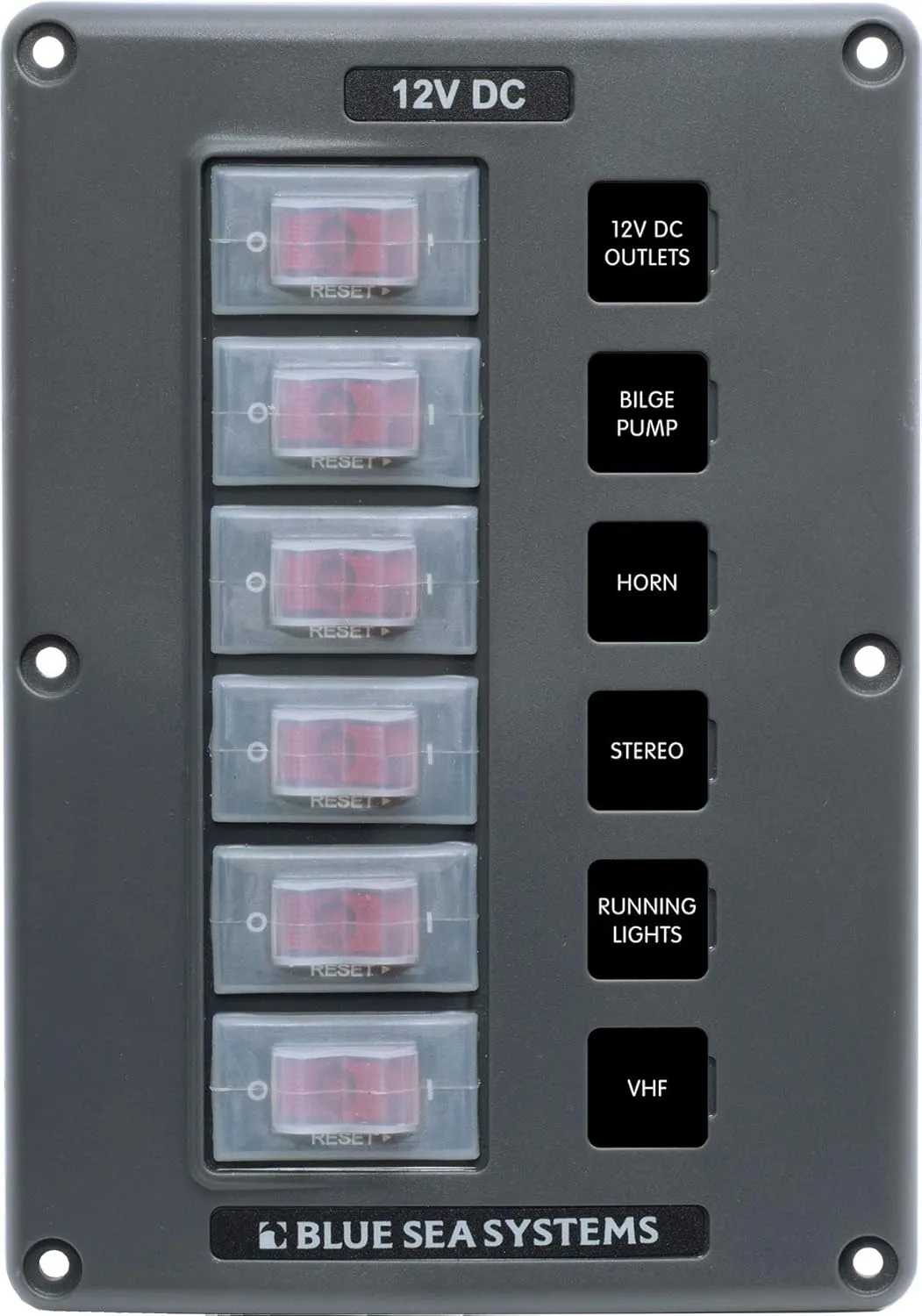

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel
Customize

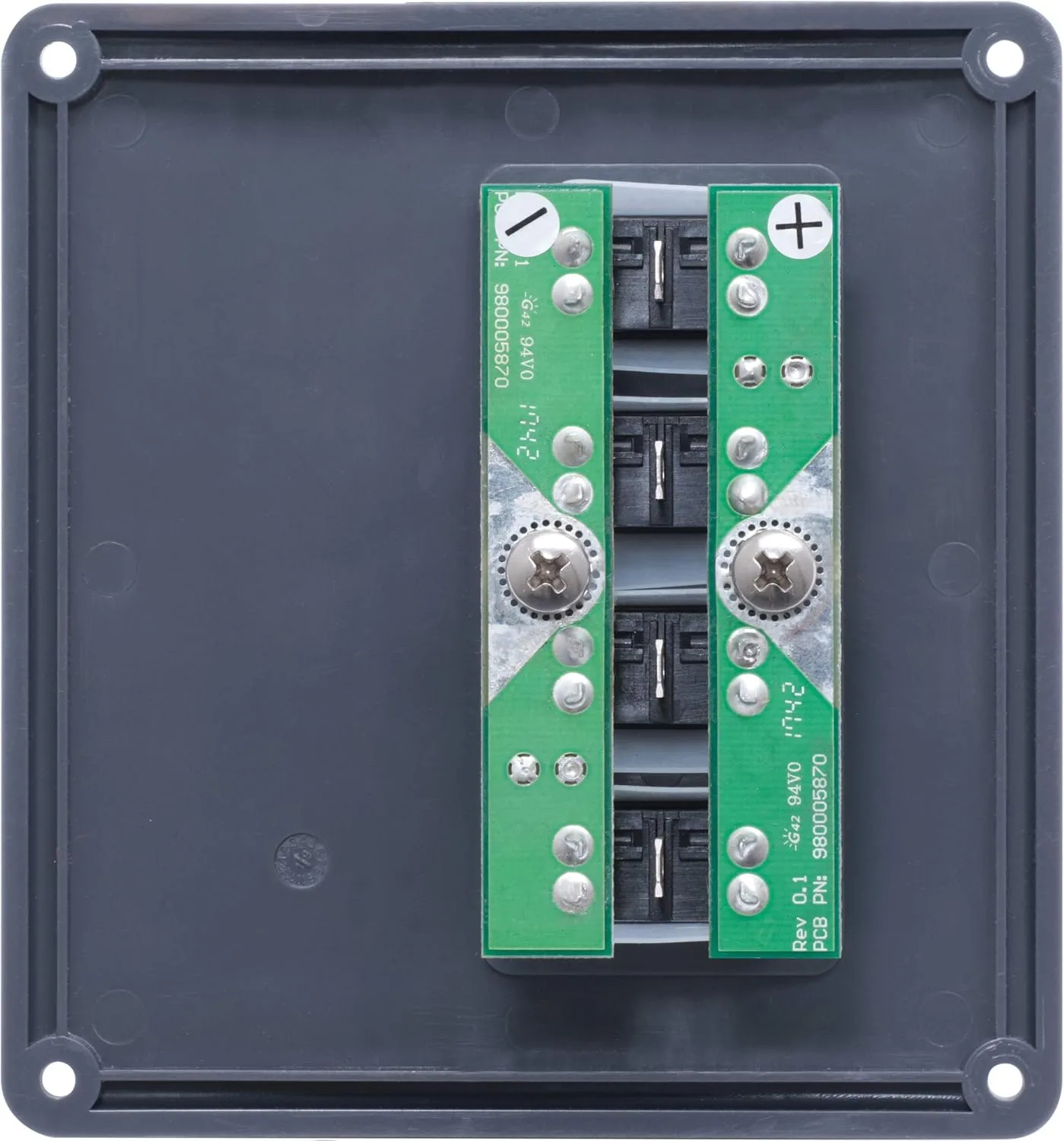

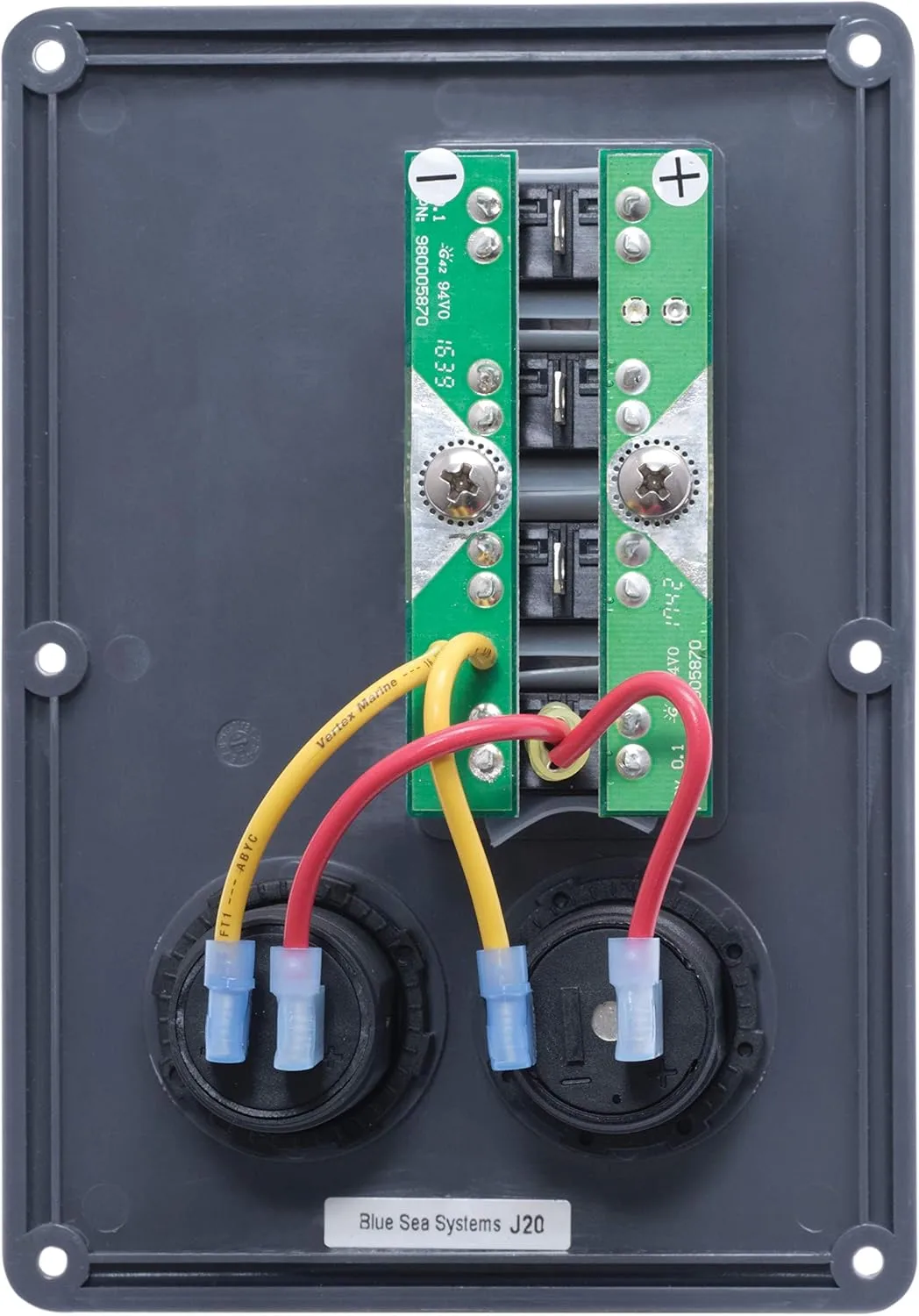

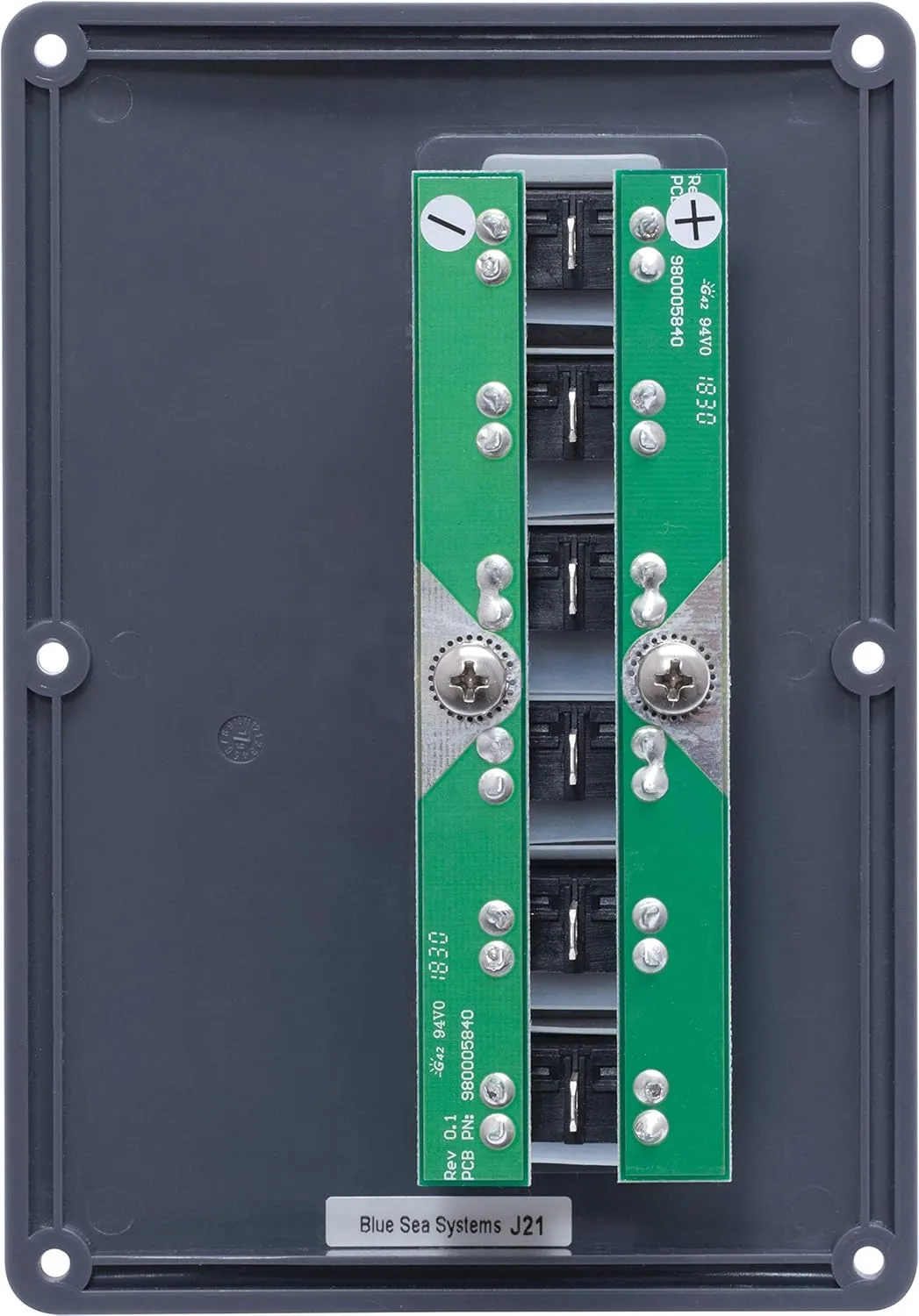

Designed for exposed mounting applications, these Blue Sea Systems water-resistant circuit breaker switch panels feature illuminated 15A circuit breakers that provide switching, "ON" indication and overcurrent protection. The polycarbonate/ABS panel surface is UV-stabilized and flame retardant; silicone breaker boots and a gasket protect against water ingress and the panel front is IP66 when mounted with the gasket in place. Fast-on 1/4" male quick connect terminals and a two-wire connection (requires #10 ring terminals) make wiring quick, while terminals screw to bus bars for secure connections. Stainless steel #6 x 5/8" mounting screws are specified and a set of 15 square format circuit labels is included; industry-standard sizes and mounting allow easy retrofit. Nominal Voltage: 12V DC. Maximum Amperage: 45A.
Specifications:
| Materials & Construction | |
| Connector Type | quick connect,screws |
| Contact Material | Copper, Brass |
| Product Details | |
| Circuit Type | 6-way |
| Connectivity Protocol | X-10 |
| Connector Type | quick connect,screws |
| Contact Material | Copper, Brass |
| Contact Type | Normally Open |
| Control Method | App |
| Controller Type | Ring |
| Country of Origin | Mexico |
| International Protection Rating | IP66 |
| Item model number | 4322-BSS |
| Mirror Lighting Type | LED |
| Number of Items | 1 |
| Operation Mode | ON-OFF |
| Terminal | quick connect,screws |
| Unit Count | 1.0 Count |
| Wattage | 1800 watts |
| Sizing & Dimensions | |
| Weight | 0.01 ounces |
| Technical Specifications | |
| Current Rating | 45 Amps |
| Hardware | Stainless Steel #6 x 5/8" mounting screws |
| Max Breaker Quantity | 6 |
| Operating Voltage | 12 Volts (DC) |
| Terminal Type | 1/4" Male Quick Connect |
