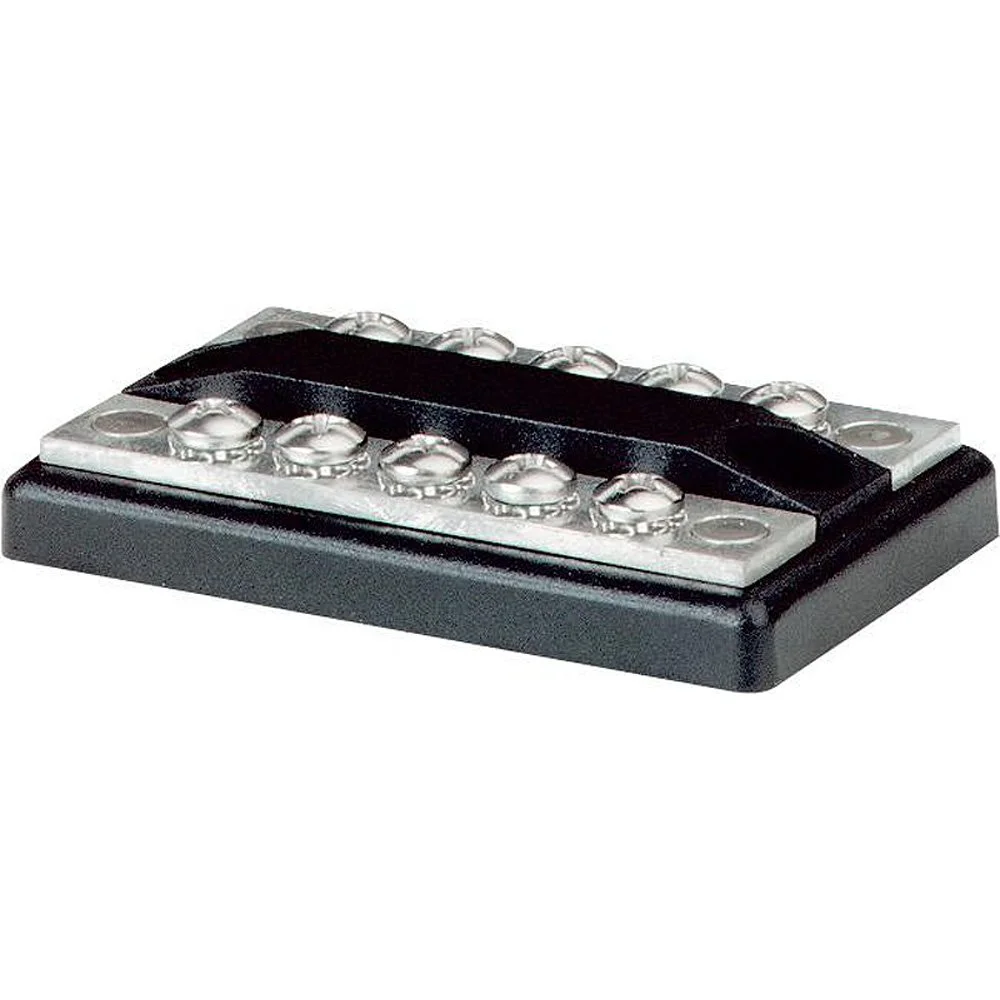

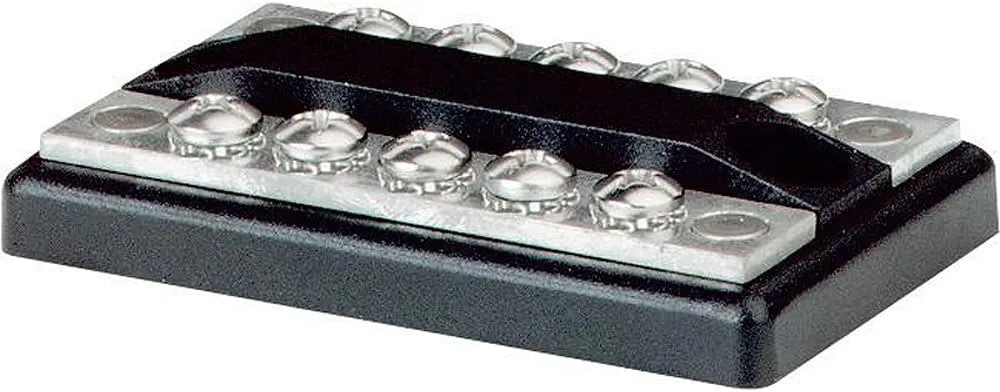

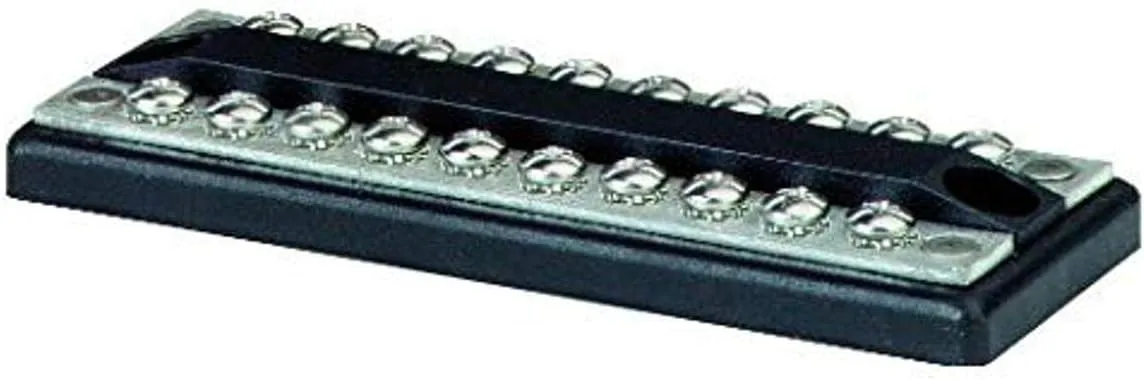

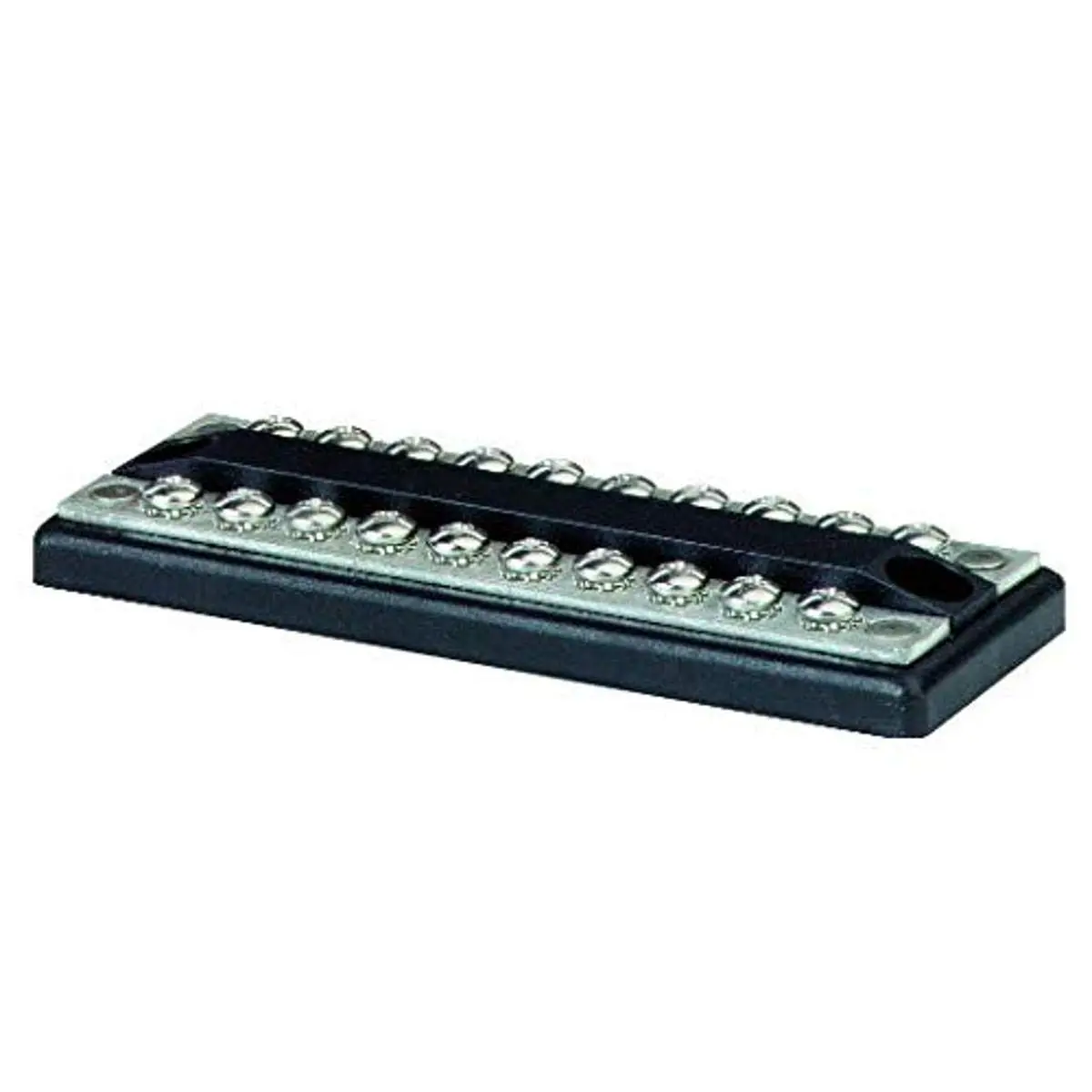

BLUE SEA SYSTEMS DualBus 100A Common Busbar
Customize
The BLUE SEA SYSTEMS DualBus 100A common busbar family provides a compact solution for combining positive and negative buses in a single insulated block for automotive, marine and general electrical systems. Units are constructed with tin-plated copper conductors (CDA 110 / UNS 11000) and feature an insulated body (ABS base or UL 94-V0 rated, glass reinforced thermoplastic) with closed-back insulation on select models for secure mounting. Each DualBus uses #8-32 screw terminals and is rated for continuous 100A distribution; different terminal-count options are available within the product family. Manufacturer/limited warranty applies. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
Materials & Construction
- Bus Material:Tin-plated copper (CDA 110/UNS 11000)
- Outer Material:Acrylonitrile Butadiene Styrene (ABS)
Product Details
- Connector Type:Screw
- Current Rating:100 Amps
- Included Components:DUALBUS 5X8-32 100A AC/DC
- Mounting Type:Universal Fit
- Number Of Contacts:5
- Number Of Poles:5
- Upper Temperature Rating:85 Degrees Celsius
- Voltage:48 Volts
Sizing & Dimensions
- Height:2 inches
- Length:8 inches
- Product Dimensions:8 x 3 x 2 inches
- Weight:3.2 ounces
- Width:3 inches
