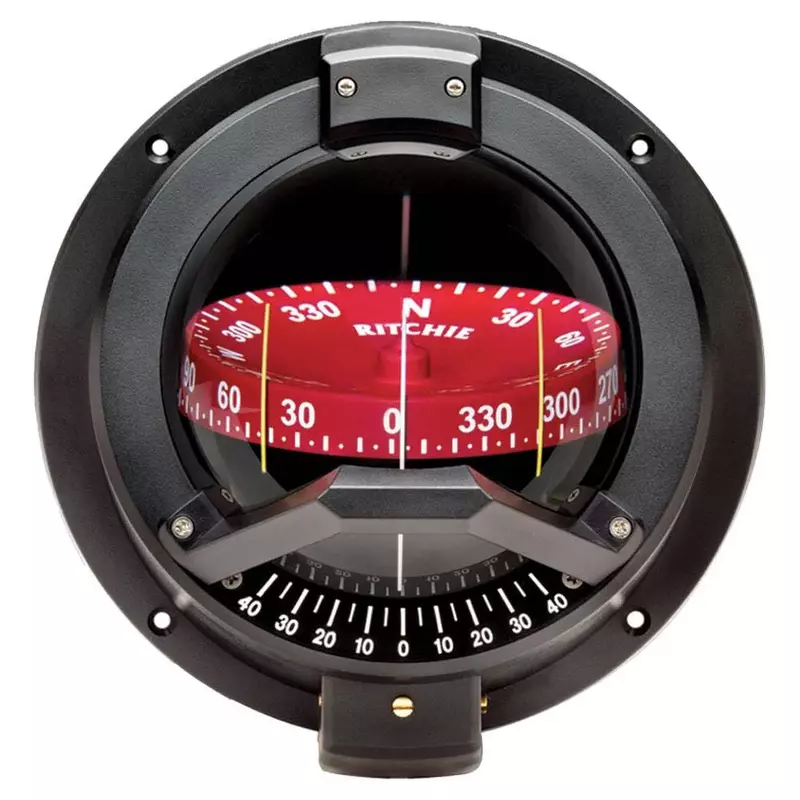

Ritchie BN-202 Compass Bulkhead 4.5" Combi with Inclinometer - Black
Customize
Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black. Navigator Compass Features: 4 1/2" (115 mm) Ritchie CombiDial and built-in inclinometer. When mounting this compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so. Easily Installed, Fits 5.75" (146 mm) Mounting Hole. Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions. Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement. Fiberglass Reinforced Bowl. 45 degree Lubber Lines. Exclusive Built-in 12v Amber LED Lighting. Built-in Compensators to Easily Adjust for Deviation. 100% Repairable. Exclusive 5-Year Ritchie Warranty. Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg). Notes: 12v lighting standard - 24 & 32v lighting options are available. Mounting Style: Bulkhead. Lubber Lines: Yes. Read: Both. Backlight: Yes. Package Dimensions: 6.75" (H) x 7.25" (L) x 7.25" (W). Internal Gimbal Systems. Built-In Compensators. 12 Volt Amber LED Lighting.
- Package Dimensions: 6.75" ( H ) x 7.25" ( L ) x 7.25" ( W )
- Internal Gimbal Systems
- Built-In Compensators
- 12 Volt Amber Led Lighting
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Backlight | Yes |
| Included Components | Ritchie Compass, Bulkhead, 4.5" Combi w/Inclin.,Black |
| Lubber Lines | Yes |
| Model Name | Ritchie Compass, Bulkhead, 4.5" Combi w/Inclin.,Black |
| Mounting Style | Bulkhead |
| Number of Items | 1 |
| Part Number | BN-202 |
| Read | Both |
| Size | 4.5-inch Combi |
| Special Feature | Portable |
| Sport Type | Fishing |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 6.75 inches |
| Item Dimensions Lx Wx H | 8.75 x 8.5 x 7.25 inches |
| Item Package Dimensions L x W x H | 8.03 x 7.52 x 7.05 inches |
| Length | 7.25 inches |
| Product Dimensions | 7.25"L x 7.25"W |
| Weight | 3.000 pounds |
| Width | 7.25 inches |
| Technical Specifications | |
| Backlight Type | 12V Amber LED |
| Built-In Compensators | Yes |
| Internal Gimbal Systems | Yes |
