SEA-DOG stamped brass 3-position, 1-circuit push-pull switch (ON-OFF-ON). 15A @ 12V. Ideal for cabin or running lights; compact design with up to 1" max panel thickness.
$29.75
Customize
Available Quantity
14

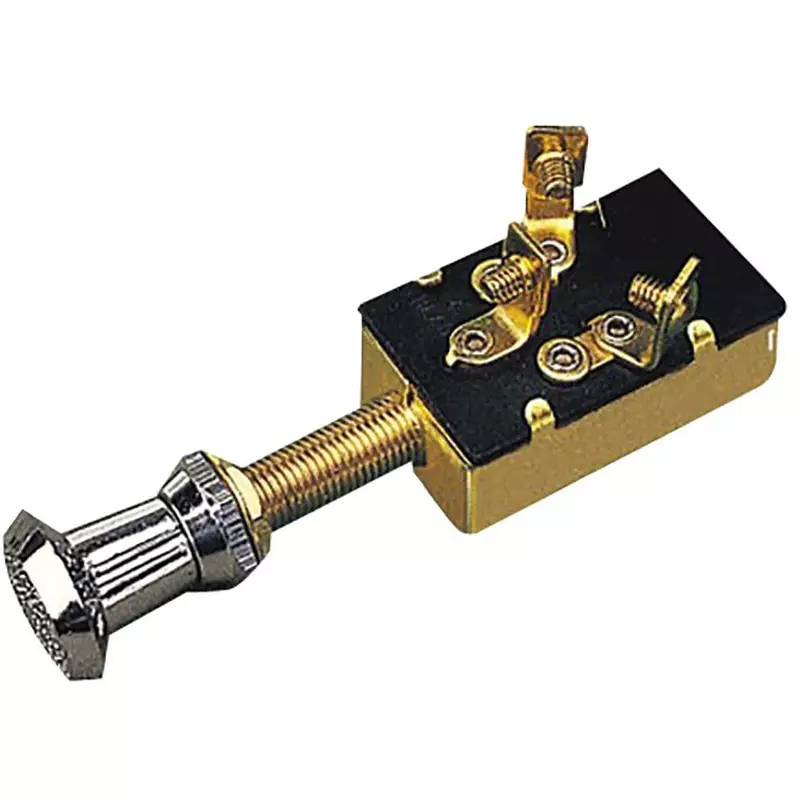

Sea-Dog 420410-1 Three Position One Circuit Push-Pull Switch — stamped brass construction with a machined exterior. This three-position, one-circuit push-pull switch offers Off / On / On action: when pushed in fully the switch is Off; pulled to the first position the first circuit is activated; pulled to the second position both the first and second circuits are activated. Rated 15A at 12VDC. Ideal for cabin or running lights aboard boats or marine vehicles. Compact size and corrosion-resistant stamped brass construction provide reliable operation in marine environments. Sea-Dog is a multi-generation company recognized for quality and efficiency.
| Materials & Construction | |
| Exterior | Machined |
| Product Details | |
| Action | On-Off-on |
| Exterior | Machined |
| Is Discontinued By Manufacturer | No |
| Item model number | 420410-1 |
| Lift Type | ON-OFF-ON |
| Manufacturer Part No | 420410-1 |
| Model | 420410-1 |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 5.56 inches |
| Product Dimensions | 14 x 9 x 1.91 inches |
| Product Weight | 0.3 ounces |
| Size | 1" x 3/8" |
| Weight | 3.04 ounces |
| Width | 1.94 inches |
| Technical Specifications | |
| Mirror Lighting Type | Incandescent |
