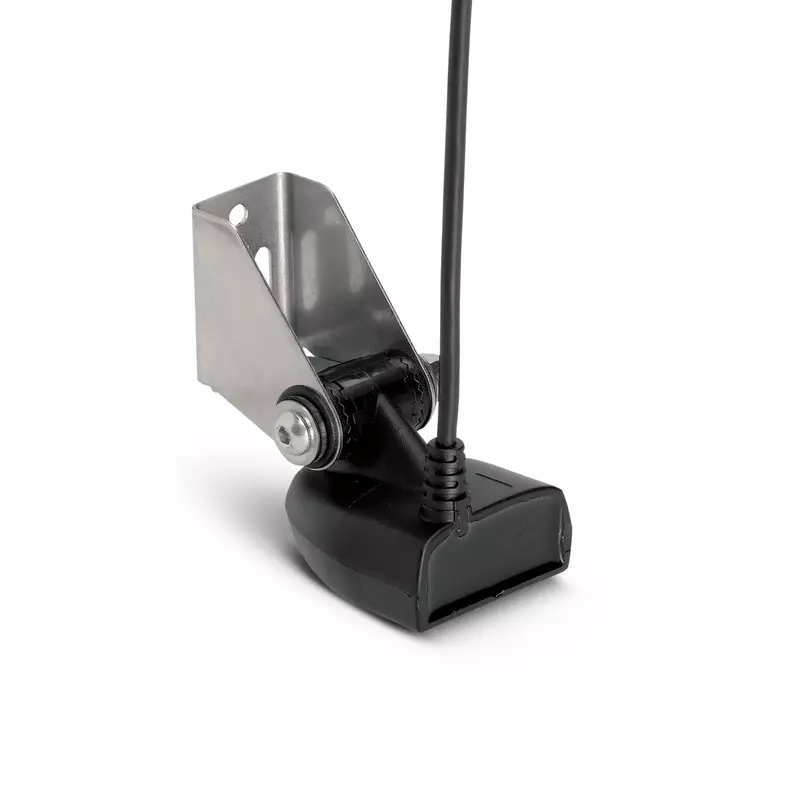

Humminbird XNT 14 HW T Transom Temperature Transducer for SOLIX Fish Finders with Dual Spectrum CHIRP Sonar
Customize
XNT-14-HW-T Dual Spectrum CHIRP Transducer with Temp for SOLIX. Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, all metal bracket and 20' cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 – All Models. Side Imaging and Down Imaging units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz. Dual Spectrum CHIRP Max Depth: 1200ft (365m). WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 1-Year Limited Warranty
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Cable Length: 20 Feet
- Side Imaging and Down Imaging units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
- Compatible with: All XPLORE models, All APEX models and All SOLIX models to the maximum capability of the transducer
Specifications:
| Materials & Construction | |
| Color | Not Available |
| Material | Plastic |
| Product Details | |
| Cable Length (Feet) | 20' |
| Chirp | High Wide |
| Display Type | LCD |
| Fishing Technique | Any |
| Imaging | Standard |
| Included Components | Transom mount transducer (includes built-in Temperature) with 20 ft cable length; Mounting hardware; Installation instructions |
| Model Name | Transom Mount Transducer |
| Model Year | 2019 |
| Mounting Type | Transom Mount |
| Number of Items | 1 |
| Pins | 14 |
| Power Source | Battery Powered |
| Speed Included | No |
| Sport Type | Fishing |
| Style | Transducers |
| Temperature | Yes |
| Warranty Description | 1 year Manufacturer |
| Sizing & Dimensions | |
| Height | 6.75 inches |
| Length | 9.75 inches |
| Product Dimensions | 9.75 x 7.5 x 6.75 inches |
| Product Weight | 1.4000 |
| Size | One Size |
| Weight | 1.4 pounds |
| Width | 7.5 inches |
| Technical Specifications | |
| Display Type | LCD |
| Maximum measuring depth | 1200 Feet |
| Power Source | Battery Powered |
