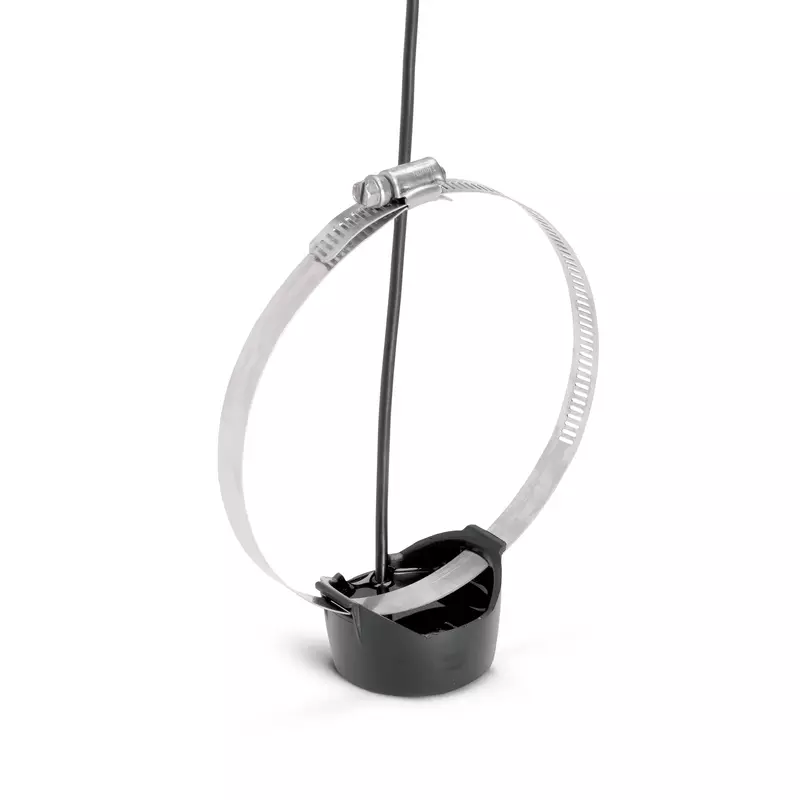

Humminbird XTM 9 HW T Trolling Motor Temperature Transducer for Helix with Dual Spectrum Chirp Sonar

The Humminbird XTM-9-HW-T (Part Number 710277-1) is a dual-spectrum CHIRP trolling motor mount transducer with built-in temperature sensor designed for HELIX fishfinder units. It supports Dual Spectrum CHIRP 2D Sonar with high-frequency beam and wide cone angle (Full: 150-220 kHz; Narrow: 180-240 kHz; Wide: 140-200 kHz) and a maximum measuring depth of up to 1200 ft (365 m). Constructed with a rugged composite housing and available with a multi-foot cable length, the transducer includes mounting hardware and installation instructions. Compatible models include a wide range of Humminbird HELIX units (HELIX 5 CHIRP G2 – GPS models, HELIX 7/8/9/10/12 CHIRP G2/G3/G4 and variants, ICE HELIX models in Open Water Mode). Note: Side Imaging and Down Imaging units can support this transducer as a 2D sonar-only transducer; it does not support Side Imaging or Down Imaging functionality. Features: built-in temperature sensor, trolling motor mount, 7-pin connection, CHIRP High Wide imaging, standard imaging mode, and a robust design for marine use. Package and product dimensions, cable length, and weight vary by configuration; see Specifications for full details.

• 1-Year Limited Warranty
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Side Imaging and Down Imaging units can support the XTM 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
• Cable Length: 15 Feet
• Compatible with: HELIX 5 CHIRP G2/G3 – GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N – All models, HELIX 8 CHIRP G3N/ G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging and Down Imaging units can support this transducer as a 2D sonar only transducer.
