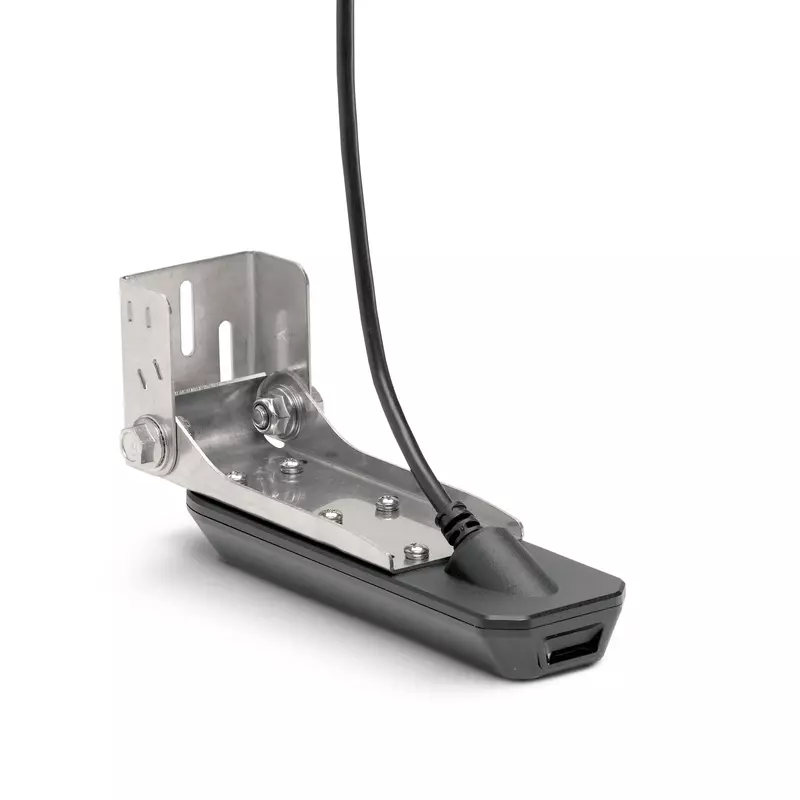

Humminbird XM 9 HW MDI T Transom Transducer for HELIX with MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar
Customize
Humminbird XM 9 HW MDI T Transom Mount Transducer combines MEGA Down Imaging+ (800kHz/455 kHz and 1.2 MHz) with Dual Spectrum CHIRP 2D Sonar (CHIRP range 150–220kHz). Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable. Compatible with HELIX 8/9/10/12 G3N and HELIX 8/9/10/12/15 G4N MEGA DI+ and MEGA SI+ units. Dual Spectrum CHIRP Frequencies: Full 150-220 kHz; Narrow 180-240 kHz; Wide 140-200 kHz. Dual Spectrum CHIRP Max Depth: 1200 ft (365 m). Down Imaging Frequencies and Max Depths: 455kHz (440-500 kHz) - up to 400 ft (122 m); 800kHz (790-850 kHz) - up to 125 ft (38 m); MEGA DI+ (1075-1150 kHz) - up to 200 ft (61 m). 1-Year limited warranty. Includes mounting hardware and installation instructions. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm.
- 1-Year Limited Warranty
- Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Cable Length: 20 Feet
- Compatible with: HELIX 12/10/9 CHIRP MEGA DI+ G3N, HELIX 15/12/10/9 CHIRP MEGA DI+ G4N to the maximum capabilities of the unit. HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N to the maximum capabilities of the transducer.
Specifications:
| Materials & Construction | |
| Color | Not Available |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Display Type | LCD |
| Included Components | Transom mount transducer (includes built-in Temperature) with 20 ft cable length; Mounting hardware; Installation instructions |
| Maximum measuring depth | 1200 Feet |
| Model Name | Transom Mount Transducer |
| Model Year | 2019 |
| Style | Transducers |
| UPC | 082324053207 |
| Sizing & Dimensions | |
| Height | 7.75 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 15 x 7.75 inches |
| Size | One Size |
| Weight | 2.3 pounds |
| Width | 15 inches |
| Technical Specifications | |
| Cable Length (Feet) | 20' |
| Chirp | High Wide |
| Imaging | Standard/Down |
| Item Package Dimensions L x W x H | 9.84 x 7.83 x 6.81 inches |
| Mounting Type | Transom Mount |
| Pins | 7 |
| Temperature | Yes |
