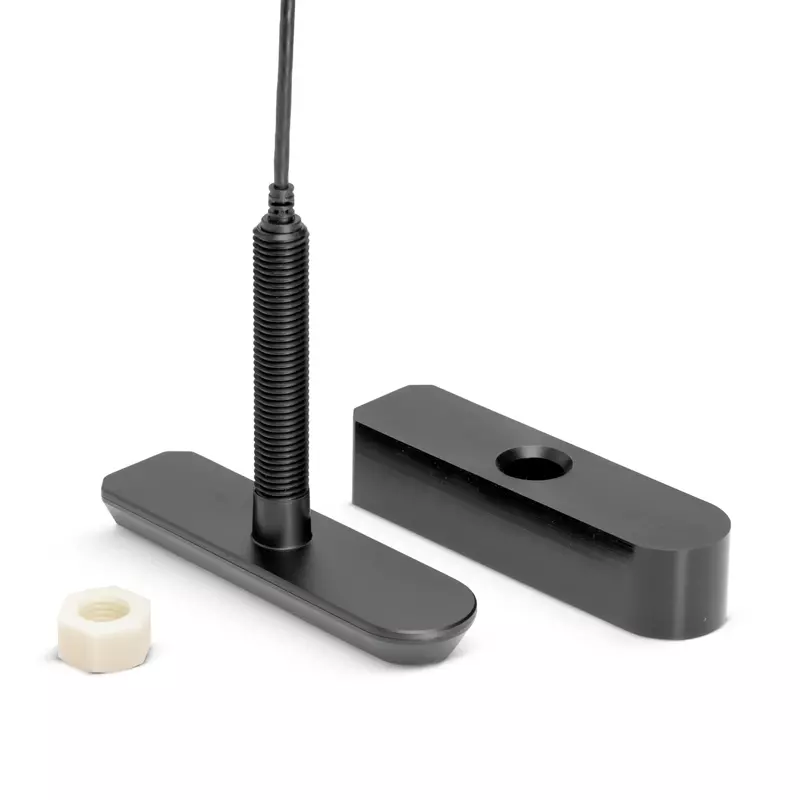

Humminbird XPTH 9 HW MSI T Plastic Thru Hull Temperature Transducer for Helix with MEGA Side/Down Imaging+ and Dual Spectrum Chirp Sonar

The Humminbird XPTH-9-HW-MSI-T is a MEGA SI+/DI+ plastic thru-hull transducer with built-in temperature sensor and 30' cable. It supports MEGA Side Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar (CHIRP range 150–220 kHz). Dual Spectrum CHIRP frequencies include Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz. Dual Spectrum CHIRP Max Depth: up to 1200 ft (365 m). MEGA Side Imaging+ max ranges: 455 kHz (440–500 kHz) up to ~800 ft (244 m), 800 kHz (790–850 kHz) up to ~250 ft (76 m), MEGA SI+ (1075–1150 kHz) up to ~400 ft. MEGA Down Imaging+ max depths: 455 kHz up to ~400 ft (122 m), 800 kHz up to ~125 ft (38 m), MEGA DI+ (1075–1150 kHz) up to ~200 ft (61 m). Includes mounting hardware and installation instructions. Compatible with HELIX 8/9/10/12 CHIRP MEGA SI+ G3N and HELIX 8/9/10/12/15 CHIRP MEGA SI+ G4N. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• 1-Year Limited Warranty
• Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"
• MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
• MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (m)
• Dual Spectrum CHRIP Max Depth: 1200ft (365m)
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Cable Length: 30 Feet
• Compatible with: HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N.
