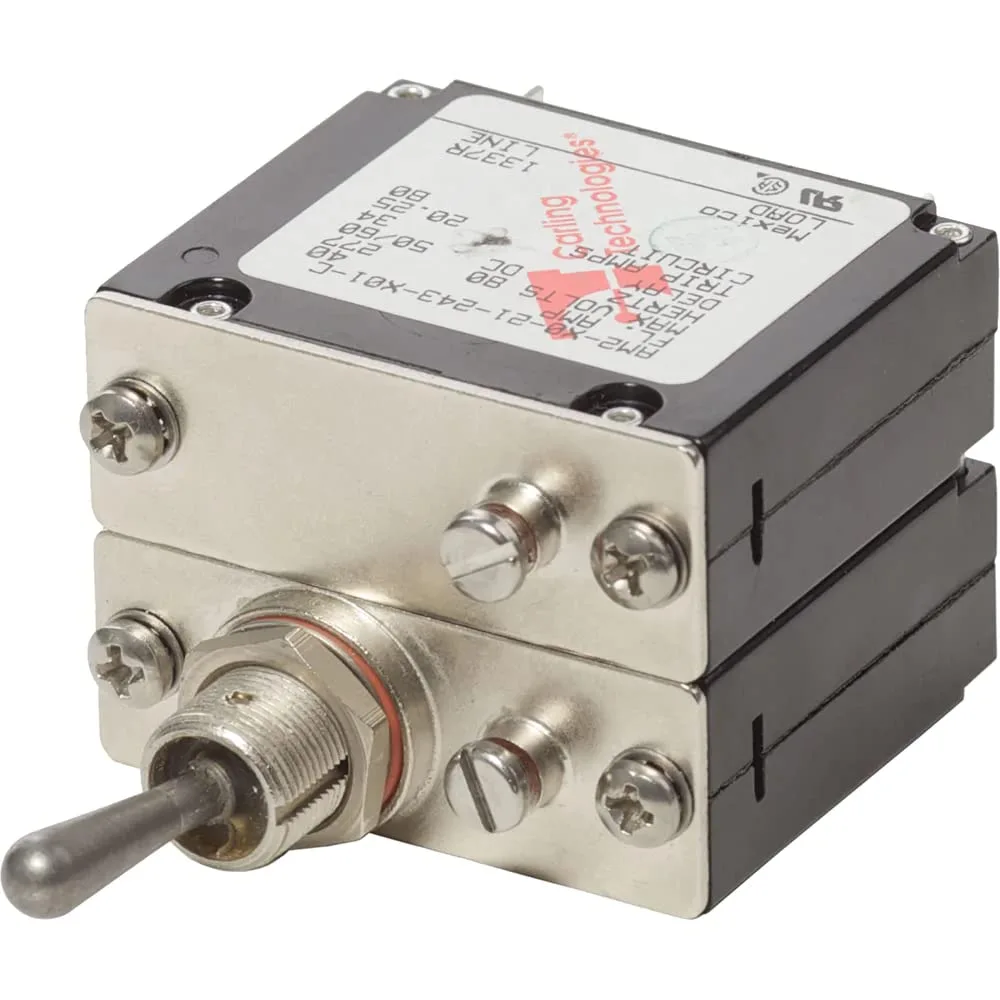

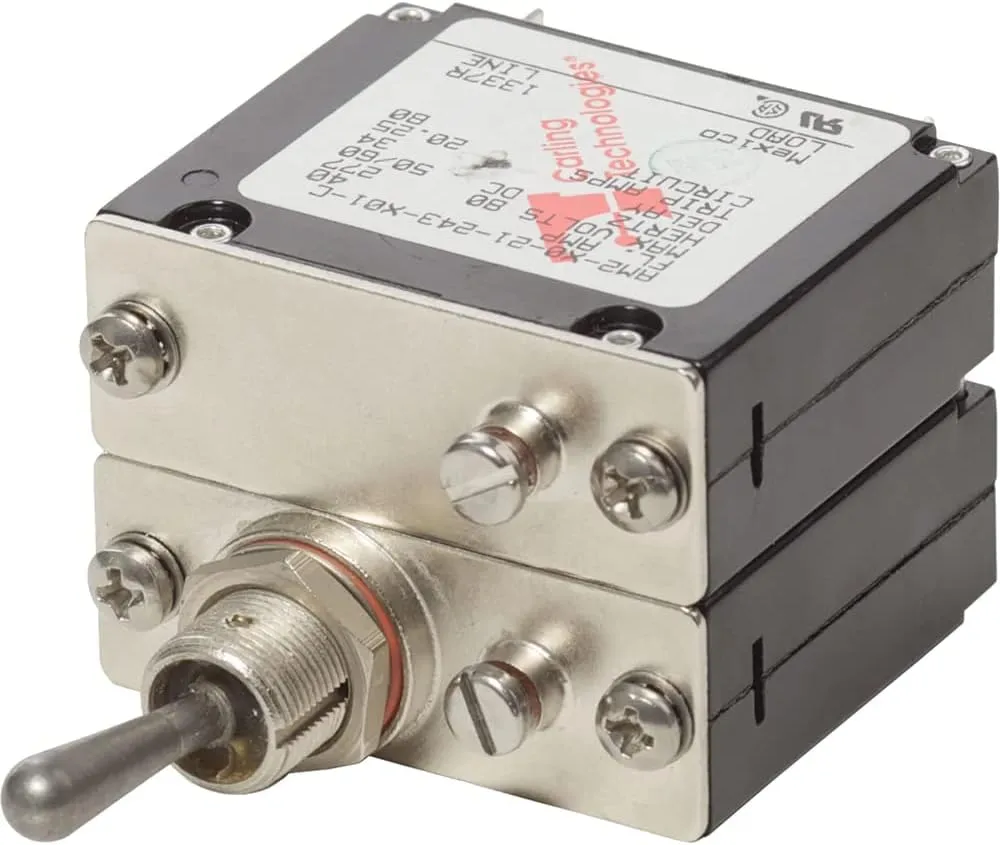

7316 COTS Military Grade A-Series 40 Amp May be suitable for use when military specifications are required under CFR 46. Specifications: Amperage: 40A Actuator Style: Metal Toggle Poles: 2 Max Voltage: 277V AC, 65V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Interrupt Capacity: 1500 A AC, 7500A DC Min Operating Temp: -40°C Max Operating Temp: 85°C Mounting Boss: 1/2-32 Hex Nut SS Mounting Nut Torque: 30"-lb Screw Terminal Torque: 14"-lb Switching Cycles: 6000 Electrical/4000 Mechanical Terminal Screw: #10-32 SS Weight: 0.13lb (0.06 kg) UL 1077, Amperage: 40a. Great Product
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Amperage | 40a |
| Included Components | Great Product |
| Model Name | 7316 |
| Number of Items | 1 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 0.94 inches |
| Item Package Dimensions | 1 x 1 x 1 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 2.69 x 0.94 inches |
| Product Weight | 0.1300 |
| Size | One Size |
| Weight | 2.08 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Warranty | Warranty |
