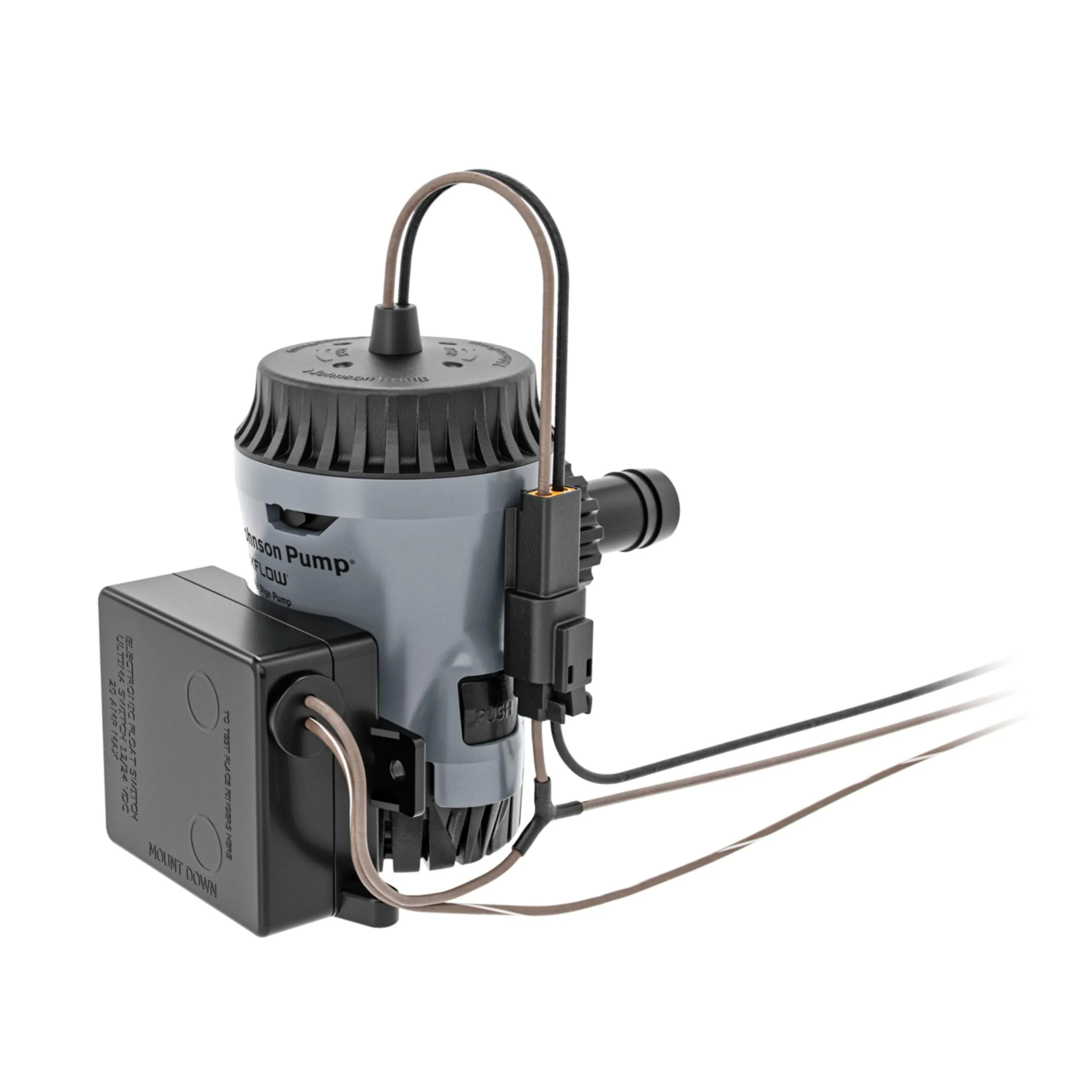

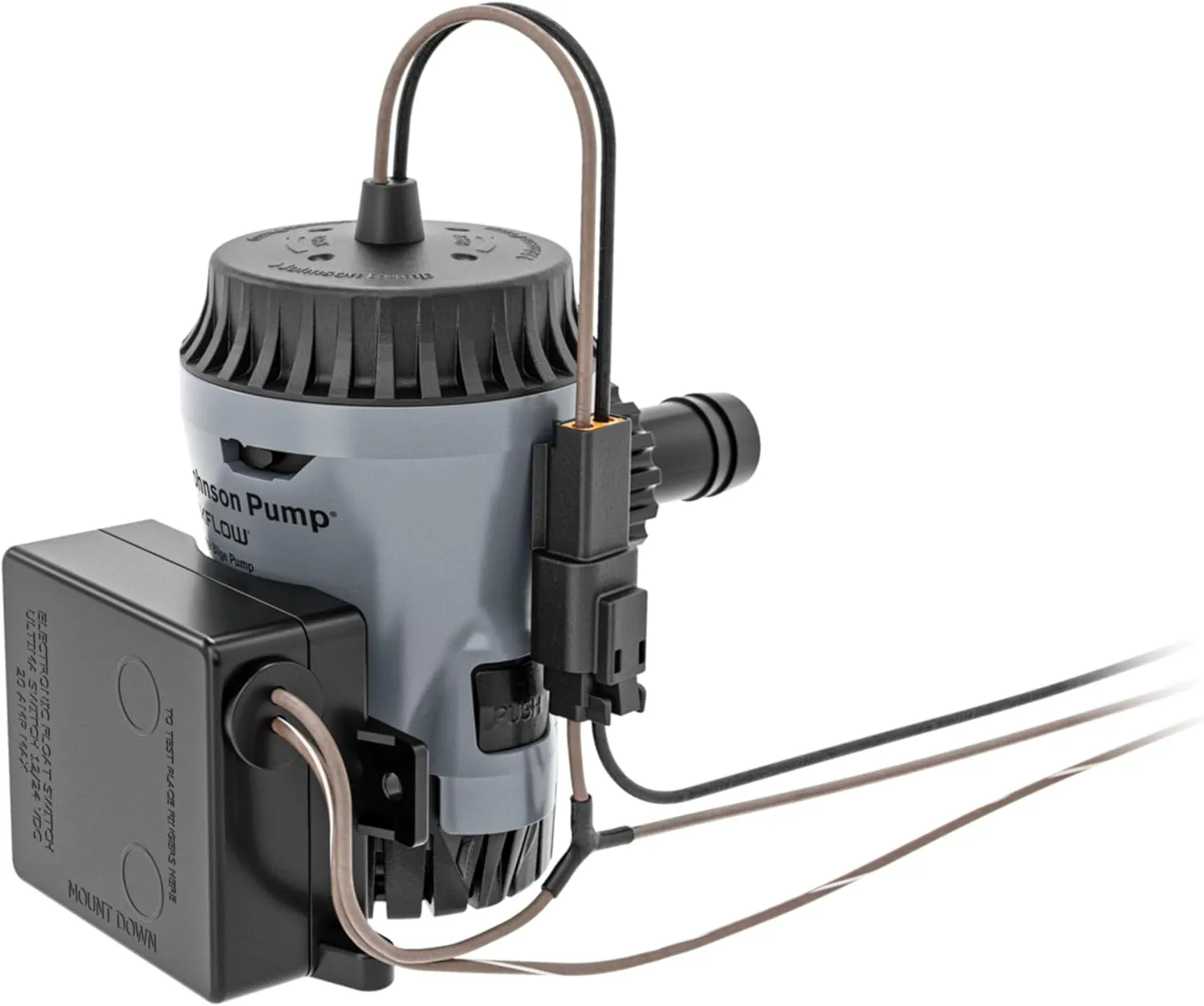

Johnson Pump 10-13635-01 Aqua Void Ultima Combo - 12V, 500 GPH
Customize
Featuring a powerful new high-flow impeller design, the Johnson Pump Aqua Void Ultima Combo 500 GPH (12V) delivers efficient, high-capacity bilge pumping for recreational and commercial boats. The Aqua Void system pairs a compact, high-efficiency cartridge motor with the non-clogging electronic Ultima Switch for automatic operation. The Ultima Switch uses patented Mirus field-effect detector cells to sense water level and automatically activate/deactivate the pump. The cartridge motor features the industry-first quick-change inline connector for simple plug-and-play motor replacement or capacity upgrades without cutting or splicing wires. The pump includes both straight and 90° redesigned dura-port connectors and a removable check valve, and features a stainless steel (316) shaft, nitrile rubber shaft seal, and durable ABS construction for long service life. Installation and maintenance are simplified with a reinforced click-in basket and single-handed access design. Product highlights include 500 GPH pump capacity, 12V operation, low amp draw (about 2.7A), and inclusion of both straight and 90° dura-port fittings and a removable check valve. The Aqua Void Ultima Combo is engineered for reliable performance in demanding marine environments.

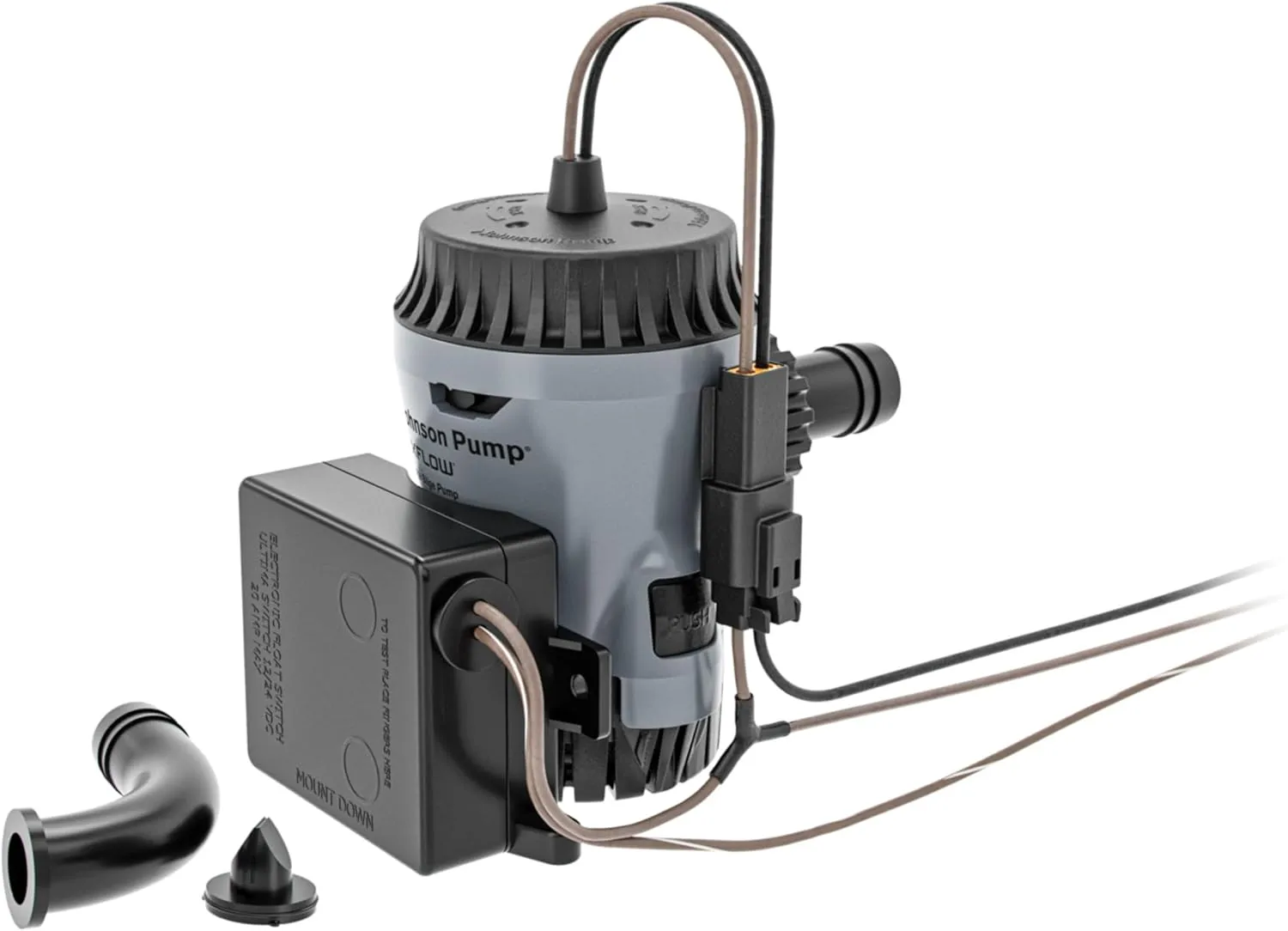

- Includes straight and 90 degree redesigned Dura-Port connectors and removable check valve
- Highest True Capacity Flow in Category
- New High Flow Impeller Design
- Pre-wired with Ultima Switch for automatic operation
- 500GPH Capacity
Specifications:
| Materials & Construction | |
| Color | Gray |
| Product Details | |
| Gallons Per Hour | 500 Gph |
| Model | 10-13635-01 |
| Operation | Automatic |
| Outlet Size | 3/4" |
| Style | Johnson Pump 10-13635-01 Aqua Void Ultima Combo - 12V, 500 GPH |
| Type | Electric |
| Volts | 12v |
| Sizing & Dimensions | |
| Height | 3.54 inches |
| Length | 5.29 inches |
| Product Dimensions | 5.5 x 4.5 x 3.75 inches |
| Weight | 1.2 pounds |
| Width | 4.29 inches |
| Technical Specifications | |
| Voltage | 12v |
