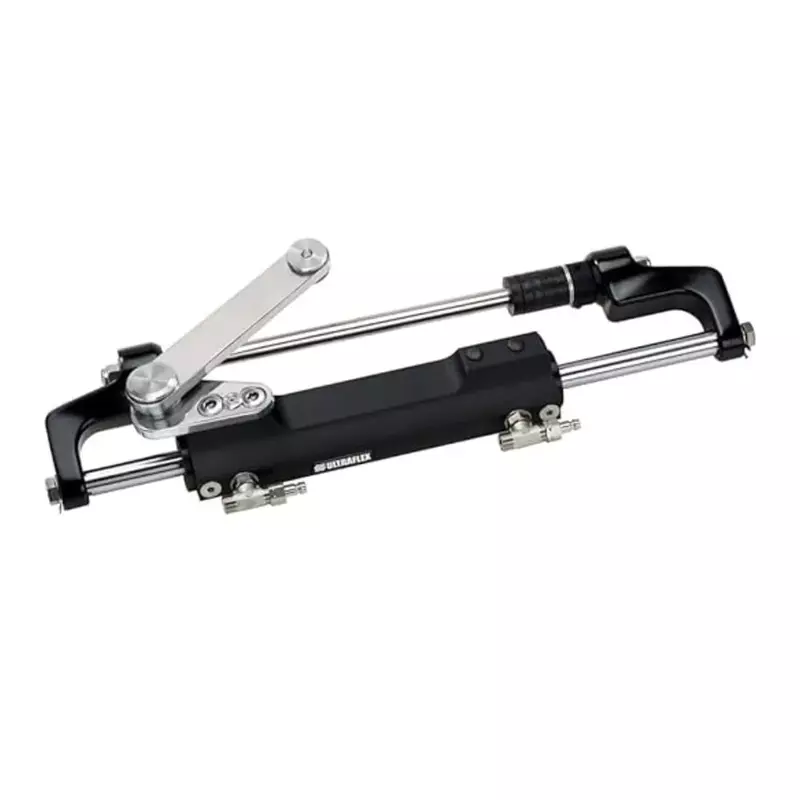

UC128 Version 1 Hydraulic Cylinder Compatible with competing helms, hoses, and oil, the UC128 cylinder is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies. Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine in the market. Balanced: The number of turns lock-to-lock is equal port to starboard or vice-versa. High resistance stainless steel connection bolt. Volume: 120cc: 7.3 cu. in Output Force: 450 kg - 992 lbs Inside Diameter: 35mm - 1.37" Stroke: 185mm - 7.28" 3/8" (9,5 mm fittings) - For high pressure flex hose Bleed Fittings: DN5 Quick connect Great Product
| Materials & Construction | |
| Color | No Color |
| Material | Stainless Steel |
| Product Details | |
| Included Components | Great Product |
| Model Name | UC128TS-1 |
| Size | One Size |
| Special Feature | Shockproof |
| UPC | 702755049203 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 27 inches |
| Product Dimensions | 23 x 7 x 3 inches |
| Size | One Size |
| Weight | 10.5 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 23 x 7 x 3 inches |
| Item Package Dimensions L x W x H | 23 x 6 x 3 inches |
