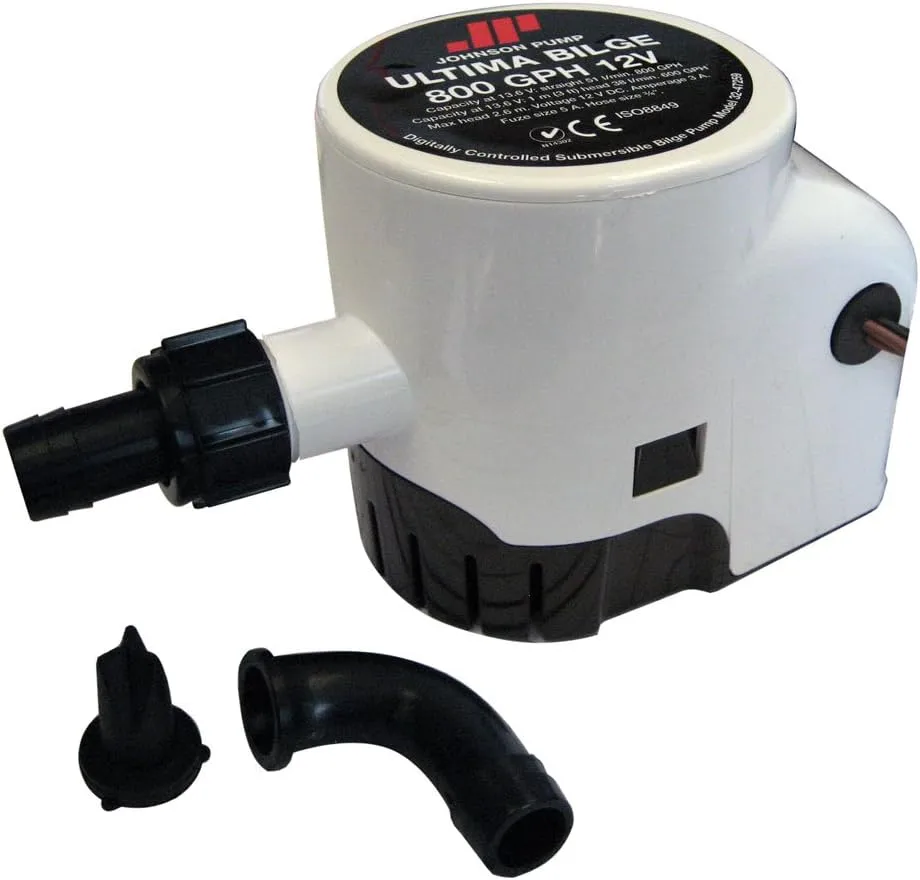

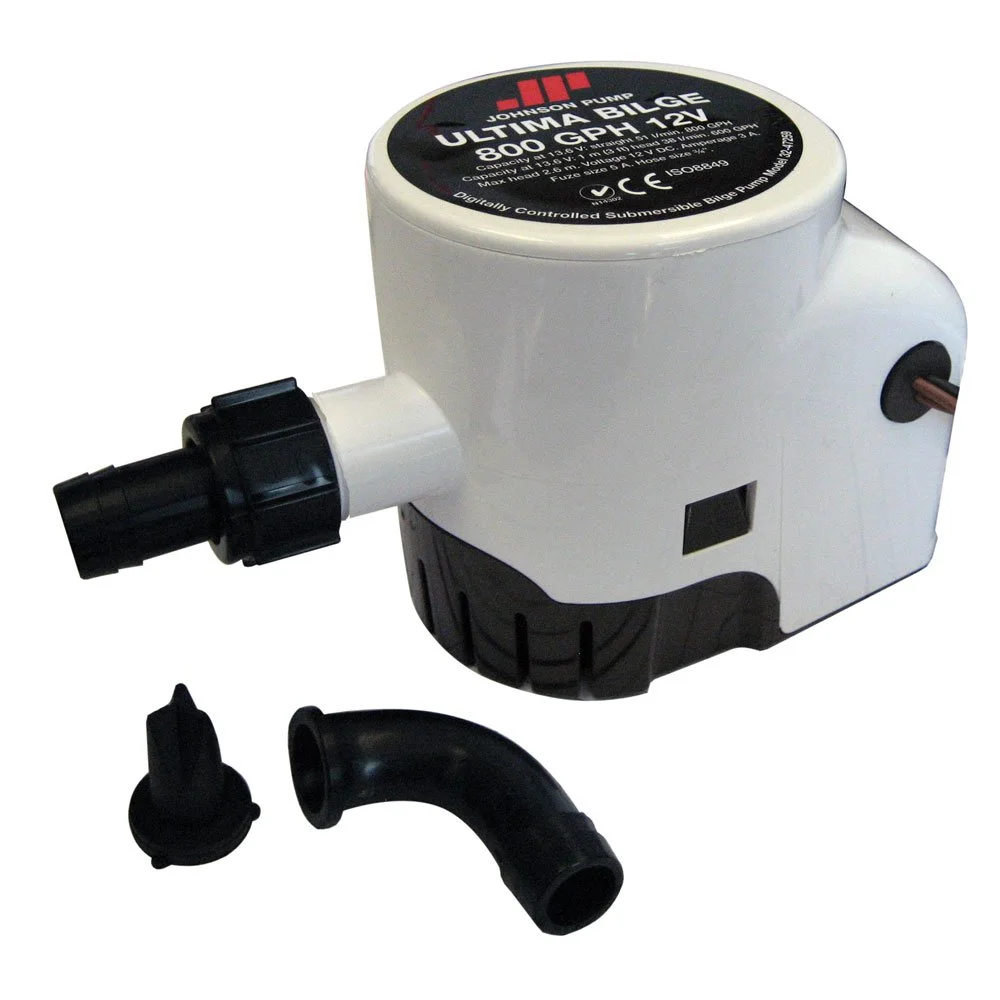

Johnson Pump 32-47259-003 Ultima Bilge Pump - 800 GPH
Customize
Johnson Pump Ultima Bilge Pump 800 GPH (Model 32-47259-003). Sleek, reliable and compact unit with integrated switch ready to install and run for years of unerring service. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600, 800, 1000 and 1250 GPH versions. For Ultima Bilge 600 GPH to 1000 GPH, Dura-Port discharge ports eliminate stress cracking from over-tightened hose clamps; delivered with both a straight and a 90° smooth elbow Dura-Port and a removable check valve. Compact all-in-one ABS pump body, stainless steel shaft, lip shaft seal, water-cooled motor and removable impeller cover for easy maintenance. Typical specs: 800 GPH capacity (straight), 3 A amperage, 5 A fuse, 3/4" outlet, 12 V DC operation. Includes straight and 90° Dura-Port discharge, removable check valve and removable clip-on basket for easy cleaning.
- Connection: 3/4"
- Fuse Size: 5A
- Amperage: 3A
- Johnson Pump
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Amperage | 3 A |
| EU Spare Part Availability Duration | 5 Years |
| Gallons Per Hour | 800 Gph |
| Global Trade Identification Number | 00729321472593 |
| Maximum Flow Rate | 20 Cubic Centimeters Per Minute |
| Operation | Automatic |
| Outlet Size | 3/4" |
| Power Source | Ac/dc |
| Style | Bilge Pump |
| Type | Electric |
| Volts | 12v |
| Sizing & Dimensions | |
| Height | 4.5 inches |
| Length | 4.5 inches |
| Product Dimensions | 4.5 x 4.75 x 4.5 inches |
| Weight | 1.5 pounds |
| Width | 4.75 inches |
| Technical Specifications | |
| Voltage | 12 Volts (DC) |
