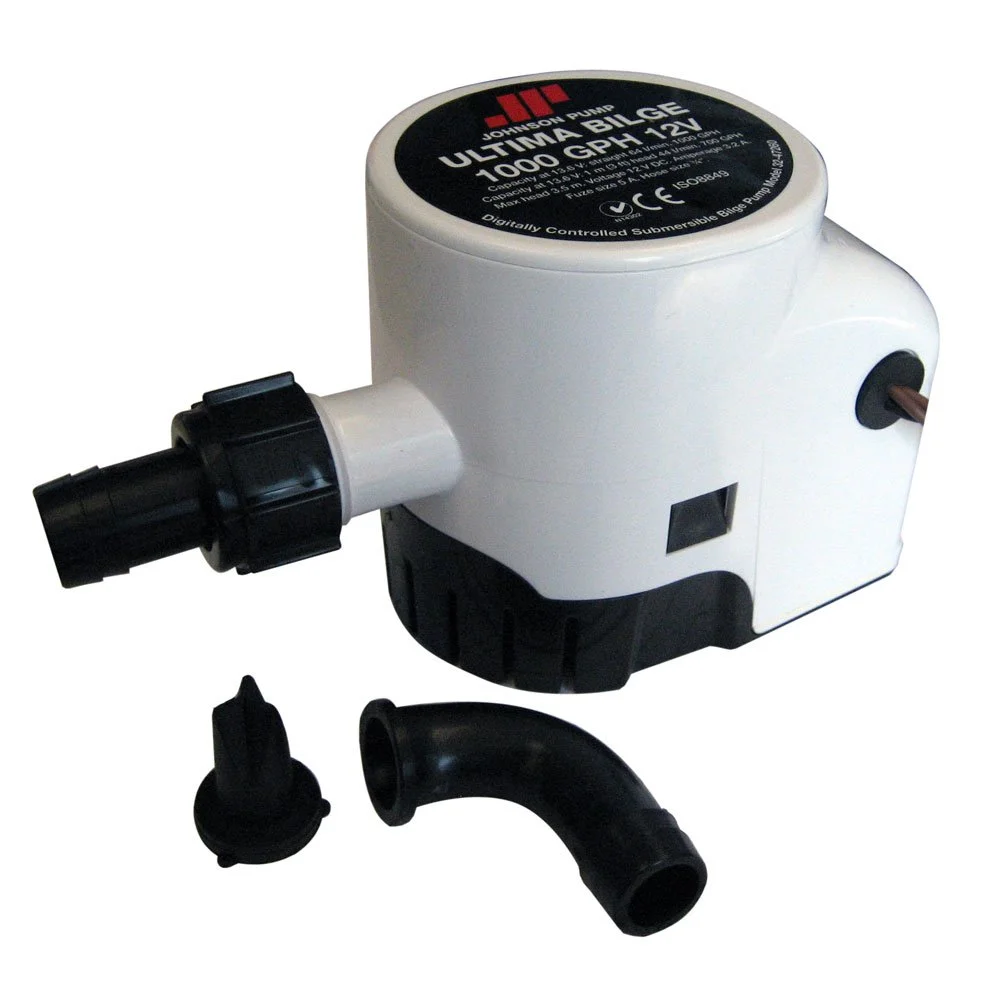

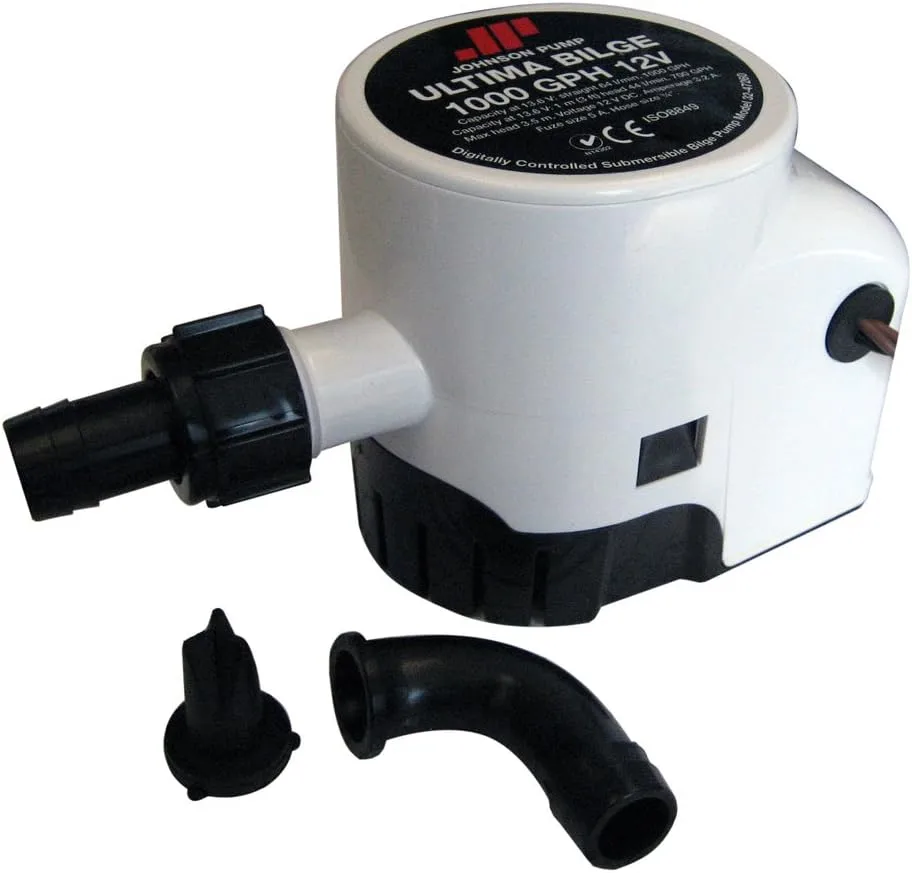

Johnson Pumps 32-47260-003 1000 GPH Ultima Bilge Pump, 12V
Customize
Johnson Pump Ultima Bilge Pump (Part No. 32-47260-003) is a compact, reliable 12 V DC bilge pump designed for dependable bilge removal on boats. Integration of the Ultima "field effect" sensing technology into the pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years of unerring service. Available in 600-800-1000-1250 GPH versions, this 1000 GPH model offers a heavy-duty motor with stainless steel shaft, a tough thermoplastic (ABS) pump body, and reverse wiring protection to guard against incorrect polarity. The pump includes easy-to-install Dura-Port discharge ports (straight and 90° smooth elbow) to eliminate stress cracking from over-tightened hose clamps, and comes with a removable check valve and clip-on basket for easy maintenance. Technical highlights include 12 V DC operation, 1000 GPH capacity (straight), 700 GPH capacity at 3 ft head, 3.2 A operating current, recommended 5 A fuse, and 3/4" outlet connection. Construction details: ABS pump body, stainless steel shaft (SS2343), lip seal shaft seal. Dimensions and weights are compact for easy installation; product dimensions approximately 6.12 x 4.75 x 3.75 inches (ProductDatabase item values) and item weight approximately 0.88 pounds. Package dimensions and weight available for shipping. Ideal for marine bilge pumping applications where an efficient, compact, and durable automatic or manual override pump is required.
- 12V, 1000 GPH bilge pump with integrated switch
- Includes both straight and 90 Degree Dura Port discharge ports and removable check valve
- Reverse wire protected to insure correct polarity
- Heavy duty motor
- Tough thermoplastic body
Specifications:
| Materials & Construction | |
| Color | #03218 |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Gallons Per Hour | 1000 Gph |
| Included Components | Johnson Pump Ultima Bilge 1000 GPH 3/4" Dura Ports |
| Maximum Flow Rate | 1E+3 Gallons Per Minute |
| Operation | Automatic |
| Outlet Size | 3/4" |
| Power Source | 12V DC |
| Style | Bilge |
| Type | Electric |
| Volts | 12v |
| Sizing & Dimensions | |
| Height | 3.75 inches |
| Length | 6.12 inches |
| Product Dimensions | 4.5 x 4.75 x 4.5 inches |
| Product Weight | 0.8800 pounds |
| Size | 12V |
| Weight | 0.88 pounds |
| Width | 4.75 inches |
| Technical Specifications | |
| Amperage | 3.2 A |
| Fuse Size | 5 A |
| Maximum Lifting Height | 35.43 inches |
| Voltage | 12 Volts (DC) |
