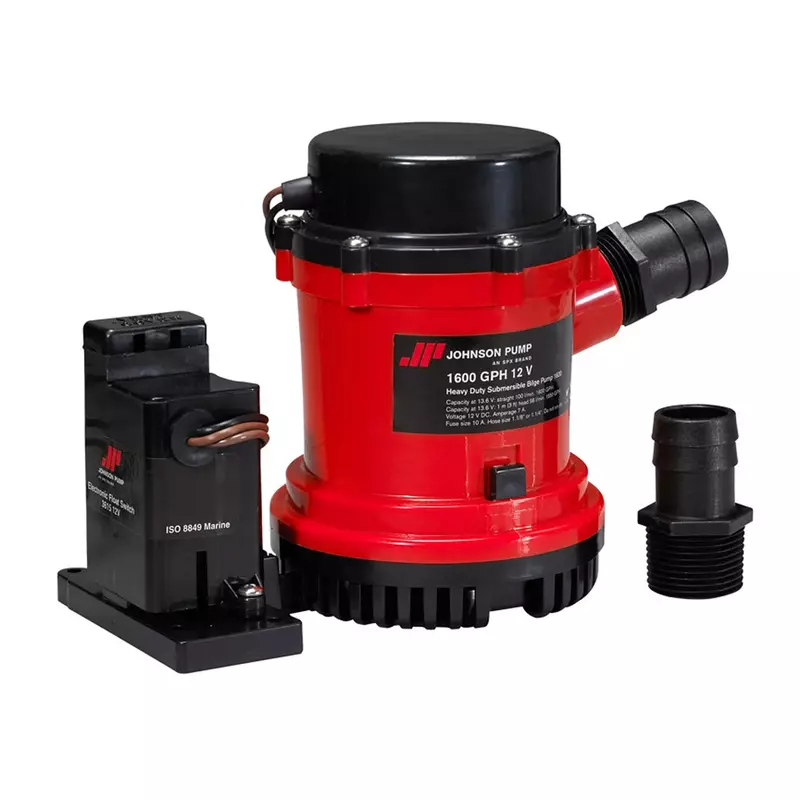

Johnson Pumps 01604-00 1600 GPH Heavy Duty Automatic Bilge Pump with Electromagnetic Switch, 12V

Designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 1600 motor is sealed with a lip seal. The impeller is carefully designed and tested to maximize head and flow. With an automatic switch installed, the pump automatically starts on when there is water in the bilge and shuts off when dry. Capacity 1.0 m head (13.6V/27V): 98l/m - 1550 GPH/Capacity Straight: 100 l/m - 1600 GPH/Amperage: 7A/Fuse Size: 10A/Connections: 1-1/8 and 1-1/4/Shaft: SS2343/Wire Size: 16 Ga./Wire Length: 1.8m - 6'/Max Diameter: 108mm - 4.25"/Max Height: 149mm - 5.86"/Weight: 1.3kg - 2.75 lbs. Automatic Submersible Bilge Pump - Electromagnetic Switch 01604-00. Heavy-Duty, high-performance pump exceeds the tough demands of commercial and recreational duty. Liquid cooled 12-pole motor with double ball bearings. Lip seal design construction. Prewired with automatic float switch (with Manual Over-ride Operation). Optional and removable check valve included. 1-1/8" & 1-1/4" hose adapters included. 3 year warranty.

• Heavy duty submersible bilge pump with tough thermoplastic body and electromagnetic switch
• Liquid cooled 12-pole motor with double ball bearings
• Lip seal on motor
• 1600 GPH straight capacity
• 1-1/8" and 1-1/4" connections
