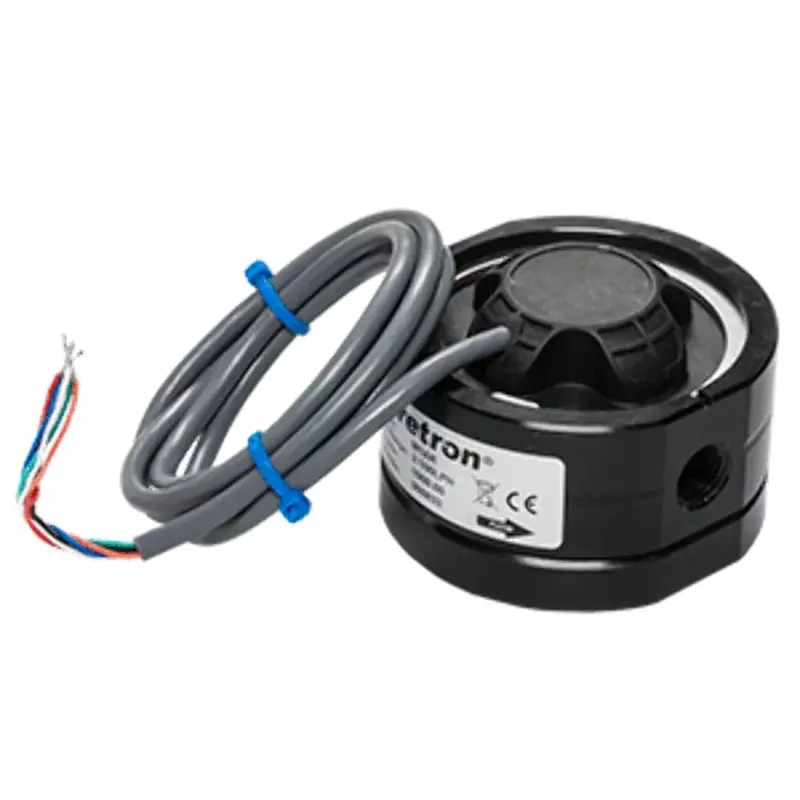

Maretron Fuel Flow Sensor - 2-100 LPH
Customize
Fuel Flow Sensor - 2-100 LPH Features: Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH) All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal) Cable Length: 1m (3.28') Strainer Size: 200 Mesh (If not already installed after fuel filter) Port Size: 1/4" NPT Female Maximum Viscosity: 1000 cPs Maximum Operating Pressure: 68.95 Bar (1000 PSI) Weight: 775g (1.71 lb) Construction: Aluminum Housing Material Rotors: PPS (Ryton) Shafts: 316/304 Stainless Steel Magnets: Samarium Cobalt O-Ring: FKM (Viton ) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov . Great Product
- Product Type - OUTDOOR RECREATION PRODUCT
- Item Package Quantity - 1
- Item Package Weight - 1.39 Pounds
- Item Package Dimension: 12.00L x 12.00W x 12.00H inches
Specifications:
| Materials & Construction | |
| Color | Multicoloured |
| Material | Plastic |
| Outer Material | Aluminum |
| Product Details | |
| Included Components | Great Product |
| Item Dimensions Lx Wx H | 6 x 4 x 4 inches |
| Material | Plastic |
| Model Name | M1AR |
| Mounting Type | Flange Mount |
| Number of Items | 1 |
| Part Number | M1AR |
| Size | One Size |
| Style | Modern |
| UPC | 873804003528 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 6 inches |
| Package Dimensions | 6 x 4 x 4 inches |
| Product Dimensions | 6 x 4 x 4 inches |
| Product Weight | 3.0000 |
| Weight | 3 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Flow Range | 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH) |
| Maximum Operating Pressure | 68.95 Bar (1000 PSI) |
| Maximum Viscosity | 1000 cPs |
| Mounting | Flange Mount |
| Nominal K Factor | 1000 pulses/L (3785.4 pulses/Gal) |
| Port Size | 1/4" NPT Female |
| Strainer Size | 200 Mesh |
