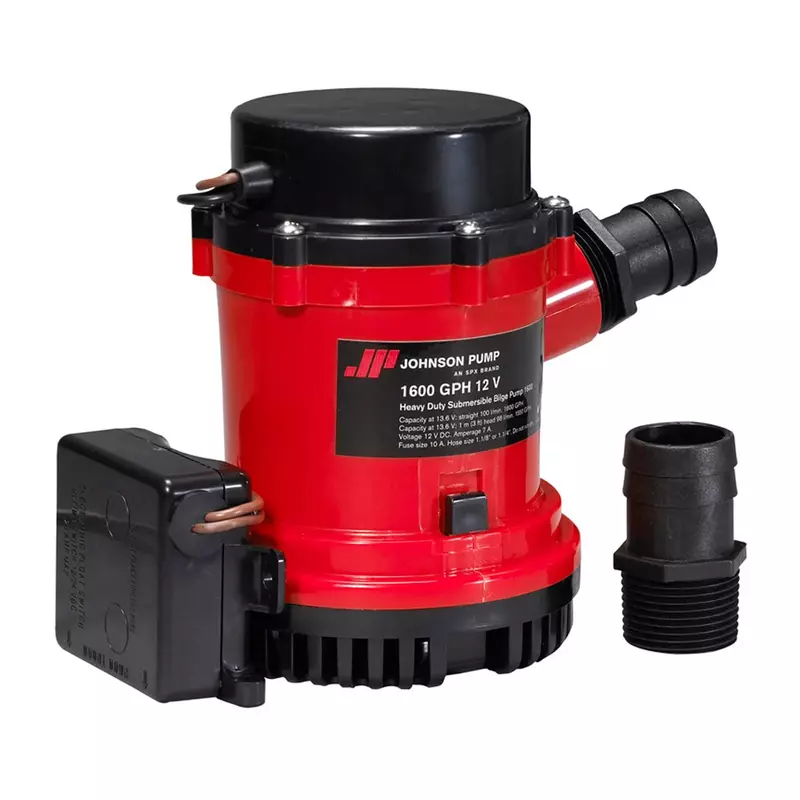

Johnson Pumps 01674-001 1600 GPH Heavy Duty Automatic Bilge Pump with Ultima Switch, 12V, Red
Customize
Johnson Pump 1600 GPH Heavy Duty Automatic Bilge Pump with Ultima Switch, 12V (Model 01674-001). Designed to meet and exceed the tough demands of commercial and recreational duty. Heavy-duty, high-performance pump with liquid-cooled 12-pole motor and double ball bearings for extended service life. Lip-seal motor design, prewired with automatic float switch (with manual over-ride). Optional removable check valve included. Includes 1-1/8" & 1-1/4" hose adapters. 3 year warranty. Capacity: Straight 100 L/min (1600 GPH). Amperage: 7A. Fuse Size: 10A. Connections: 1-1/8 and 1-1/4. Shaft: SS2343. Wire Size: 16 Ga. Wire Length: 1.8m (6'). Max Diameter: 108mm (4.25"). Max Height: 149mm (5.86"). Durable thermoplastic body, automatic Ultima switch, intended for marine bilge pumping applications.
- Heavy duty submersible bilge pump with tough thermoplastic body and Ultimate switch
- Liquid cooled 12-pole motor with double ball bearings
- Lip seal on motor
- 1600 GPH straight capacity
- 1-1/8" and 1-1/4" connections
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Plastic |
| Style | Bilge Pump,Submersible |
| Product Details | |
| Gallons Per Hour | 1600 Gph |
| Included Components | Johnson Pump 01674-001 Auto Pump with Ultima Switch |
| Number of Items | 1 |
| Operation | Automatic |
| Outlet Size | 1-1/8" Or 1-1/4" |
| Style | Bilge Pump,Submersible |
| Type | Electric |
| Volts | 12v |
| Sizing & Dimensions | |
| Height | 8.25 inches |
| Length | 8.50 inches |
| Package Dimensions | 12.01 x 10 x 10 inches |
| Product Dimensions | 5.5 x 6.5 x 7.25 inches |
| Size | 12V |
| Weight | 4.04 pounds |
| Width | 8.25 inches |
| Technical Specifications | |
| Amperage | 7A |
| Connections | 1-1/8 and 1-1/4 |
| Fuse Size | 10A |
| Maximum Flow Rate | 100 Liters Per Minute |
| Power Source | Ac/dc |
| Shaft | SS2343 |
| Voltage | 12 Volts |
| Wire Length | 1.8m - 6' |
| Wire Size | 16 Ga. |
