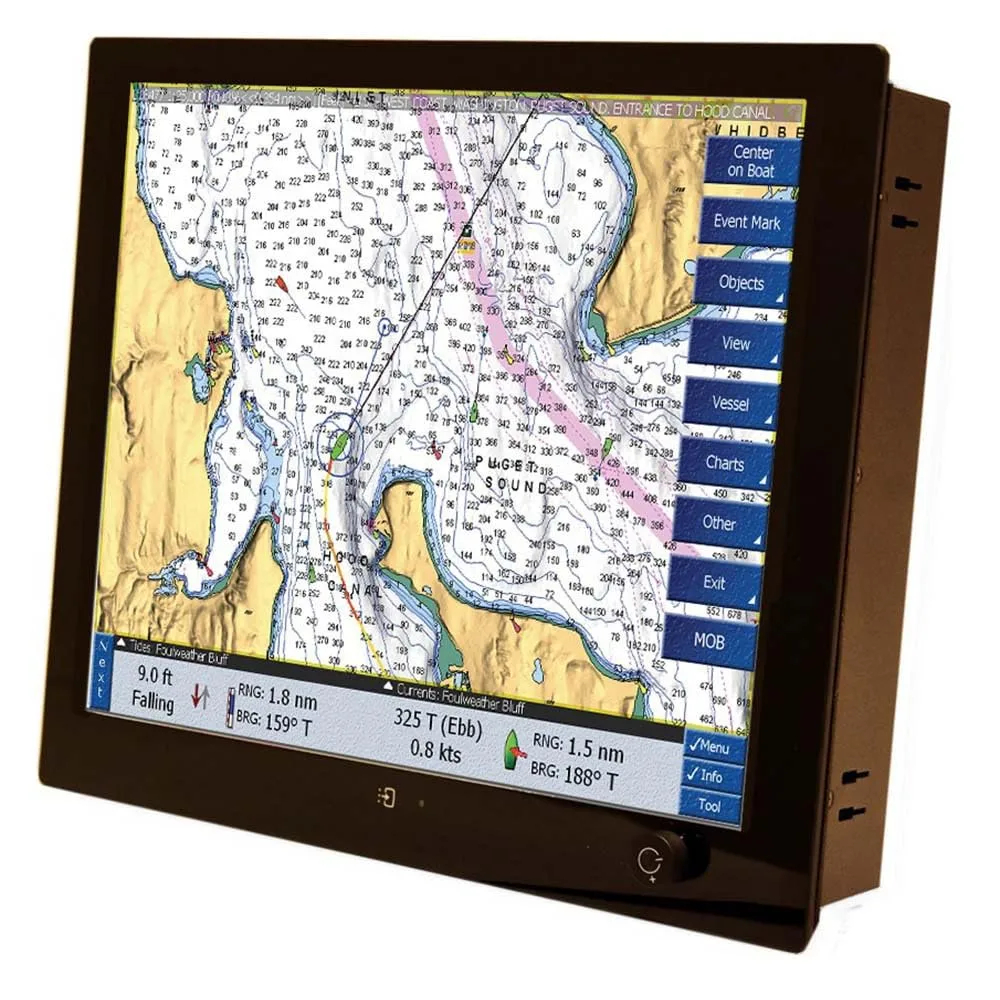

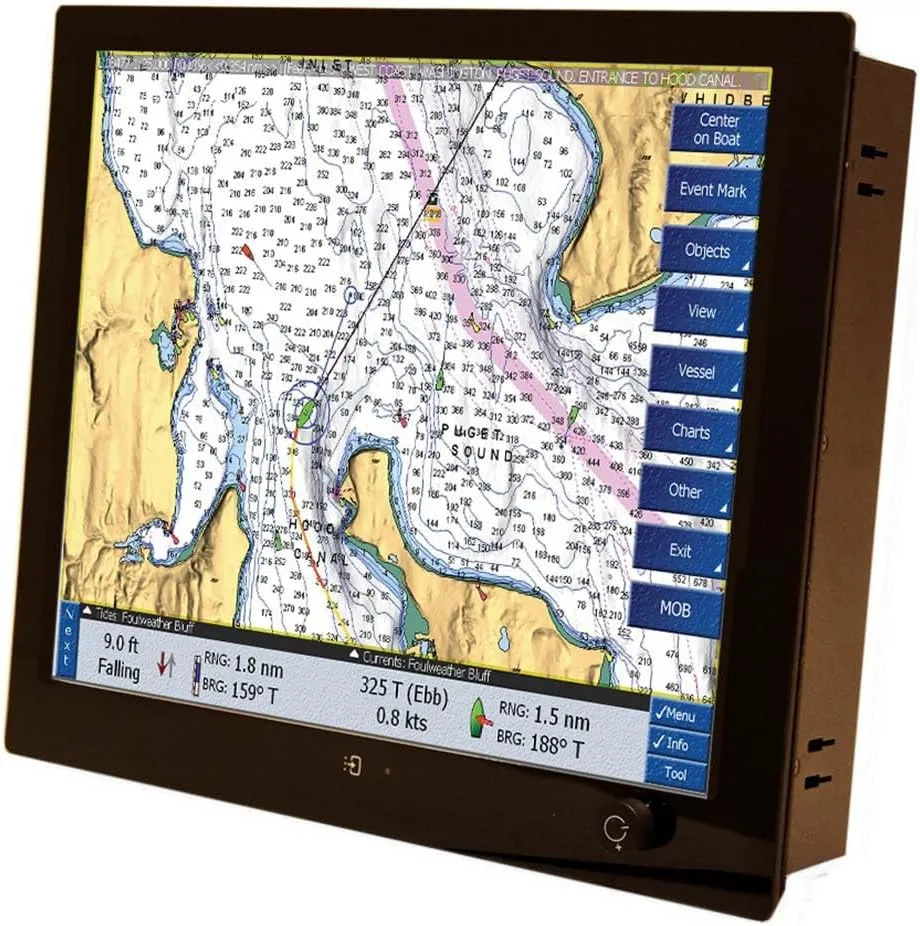

Seatronx 19" Pilothouse Touch Screen Display

Seatronx PHT-19 Pilothouse Touch Screen Display is a rugged 19" touchscreen monitor designed for marine and pilothouse use. The glass-bridge style display combines a ruggedized design with attractive styling and features projected capacitive touch with optional optical bonding and optional remote control. The display provides up to 300 nits of low-power LED backlighting (dimmable to 0 for nighttime use) and a contrast ratio of 1000:1 with wide viewing angles (89° left/right/up/down). Native resolution is 1280 x 1024 on a 19" active area. Mounting options include panel mount and VESA mount; it is front-sealed to IP68 with potentiometer control. Inputs include HDMI, DVI, VGA, and component; power options support 9–34V DC (screw terminal), with typical power consumption listed at approximately 3.5A @ 24VDC. Operating temperature range 0 to 70°C and storage -20 to 70°C. The product ships with package dimensions approximately 31 x 22 x 7 inches and package weight ~22 pounds. Ideal for navigation displays, pilothouse installations, and rugged marine electronics applications.

• Model name: PHT-19
• Type: Navigation Display
• Special feature: Touchscreen
• Product type: NAVIGATION COMPASS
• Material: Plastic
• Mounting type: Panel Mount or Vesa
• Weight: 22 pounds
• Dimensions: 19 x 16.43 inches
