HUMMINBIRD Plastic Thru-Hull Transducer with Temperature Sensor
Customize

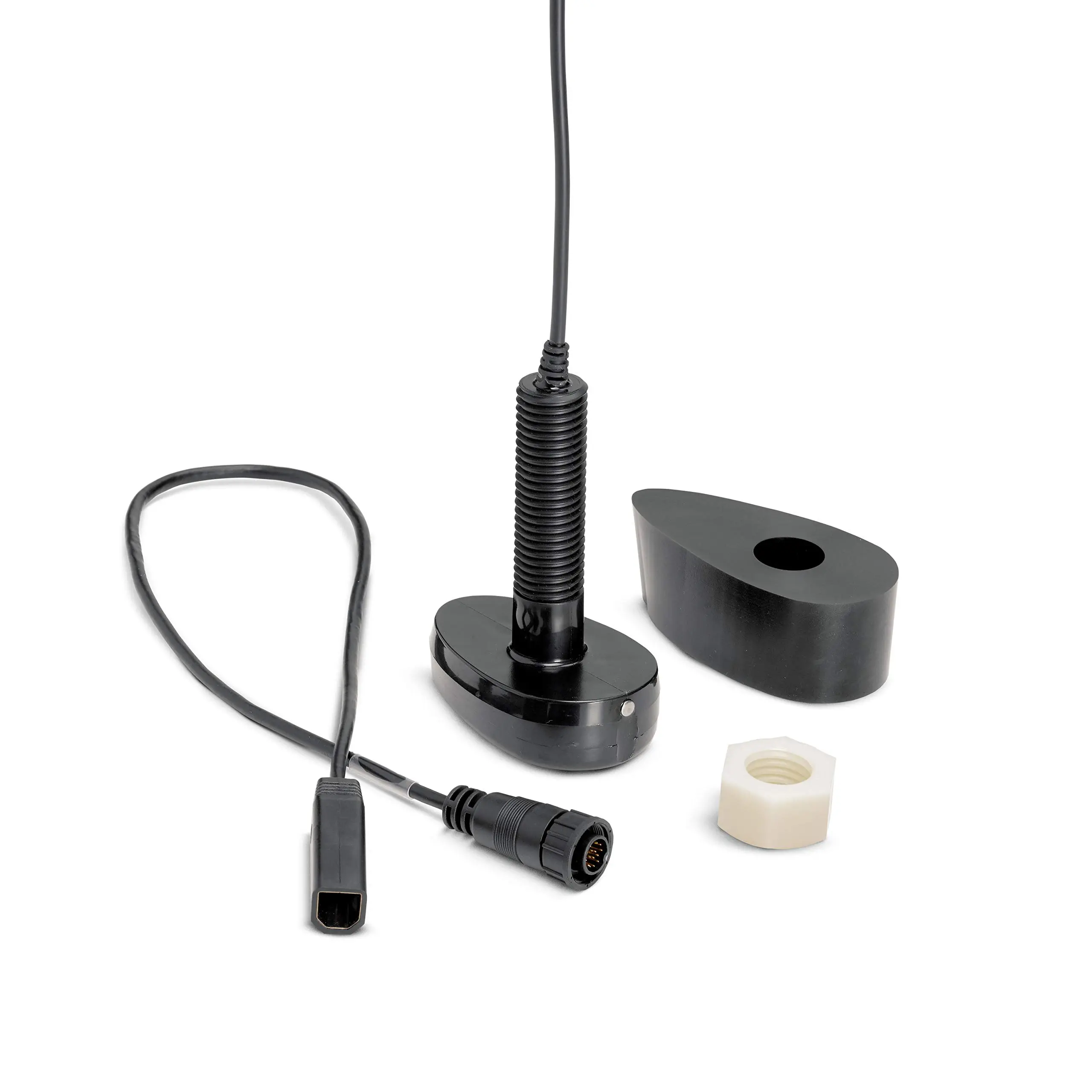

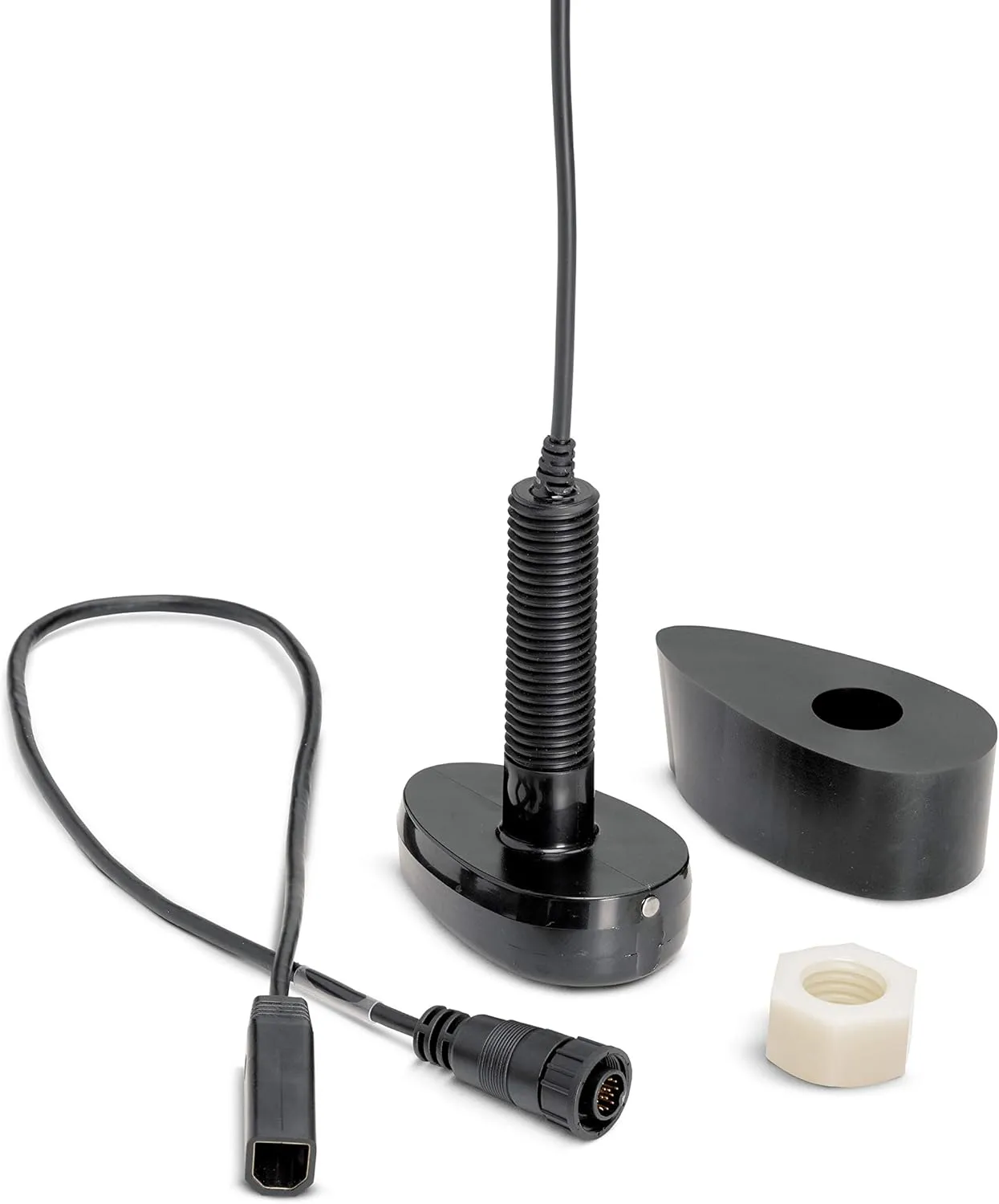

This HUMMINBIRD plastic thru-hull transducer family delivers dependable 2D sonar performance with an integrated temperature sensor and 30' cable for straightforward installation on compatible Humminbird systems. The transducers use a thru-hull design and rugged composite/marine-grade housing to provide stable readings at speed. Product variants include Dual Spectrum CHIRP configurations (example frequency range 150–220 kHz and noted max depth to 1,200 ft in CHIRP models) and DualBeam options (example 200/50 kHz with dual 20°/74° beam angles). Compatible with a range of Humminbird units, including HELIX, SOLIX, XPLORE and APEX series; installation hardware and specific accessories vary by model. Refer to individual variant details for exact frequency, beam angles, depth rating and included mounting components.
- Plug‑and‑Play: Connects to compatible HELIX, SOLIX, XPLORE or APEX units—check model string
- Rugged Housing: Marine‑grade materials with temperature sensor on select models
- Right Frequency Mix: Tuned for fish/structure separation across shallow to deep water
- MEGA Imaging + CHIRP*: Get Side/Down Imaging detail and crisp 2D returns (*model dependent)
- Thru‑Hull Performance: Designed for solid readings at speed with minimal turbulence
Specifications:
| Product Details | |
| Display Type | LCD |
| Item model number | 710279-1 |
| Maximum measuring depth | 1200 Feet |
| Model Name | Plastic Thru Hull Transducer |
| Mounting Type | Thru Hull |
| Power Source | Cable-powered |
| Speed Included | No |
| UPC | 082324053184 |
| Sizing & Dimensions | |
| Height | 3.75 inches |
| Length | 8.5 inches |
| Product Dimensions | 13.5 x 19.5 x 8.5 inches |
| Product Weight | 2.2000 |
| Weight | 2.2 pounds |
| Width | 7.5 inches |
| Technical Specifications | |
| Display Type | LCD |
| Power Source | Cable-powered |
| Warranty | 1 year Manufacturer |
