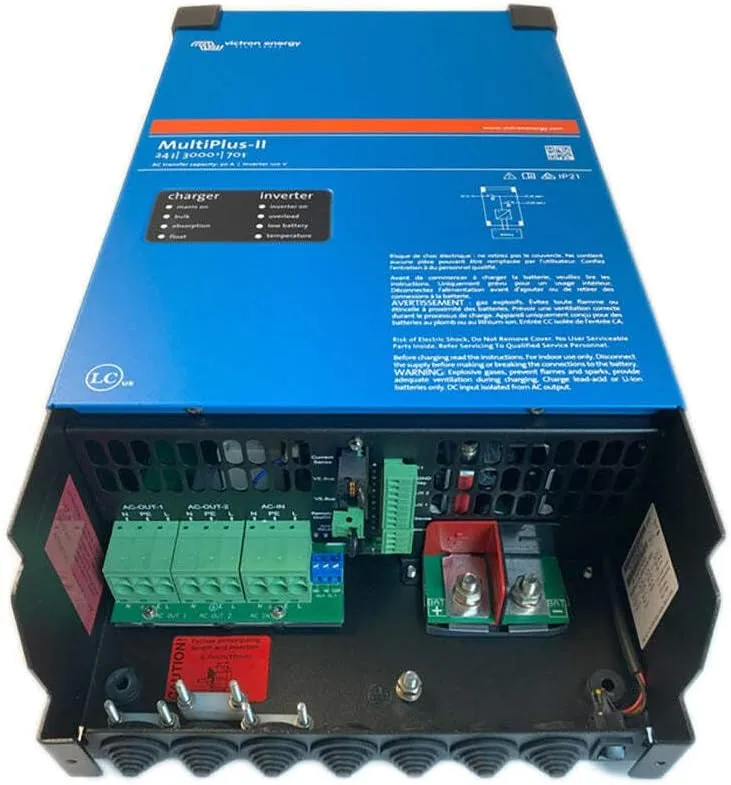

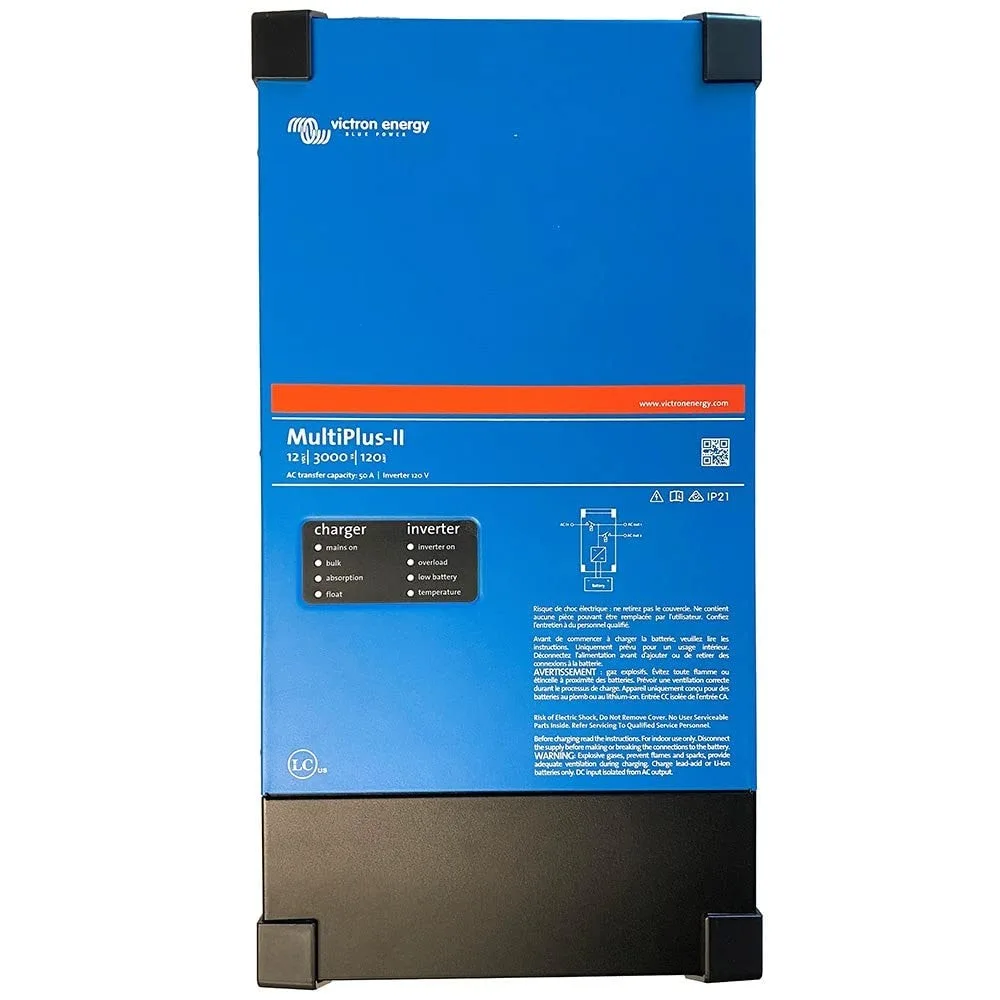

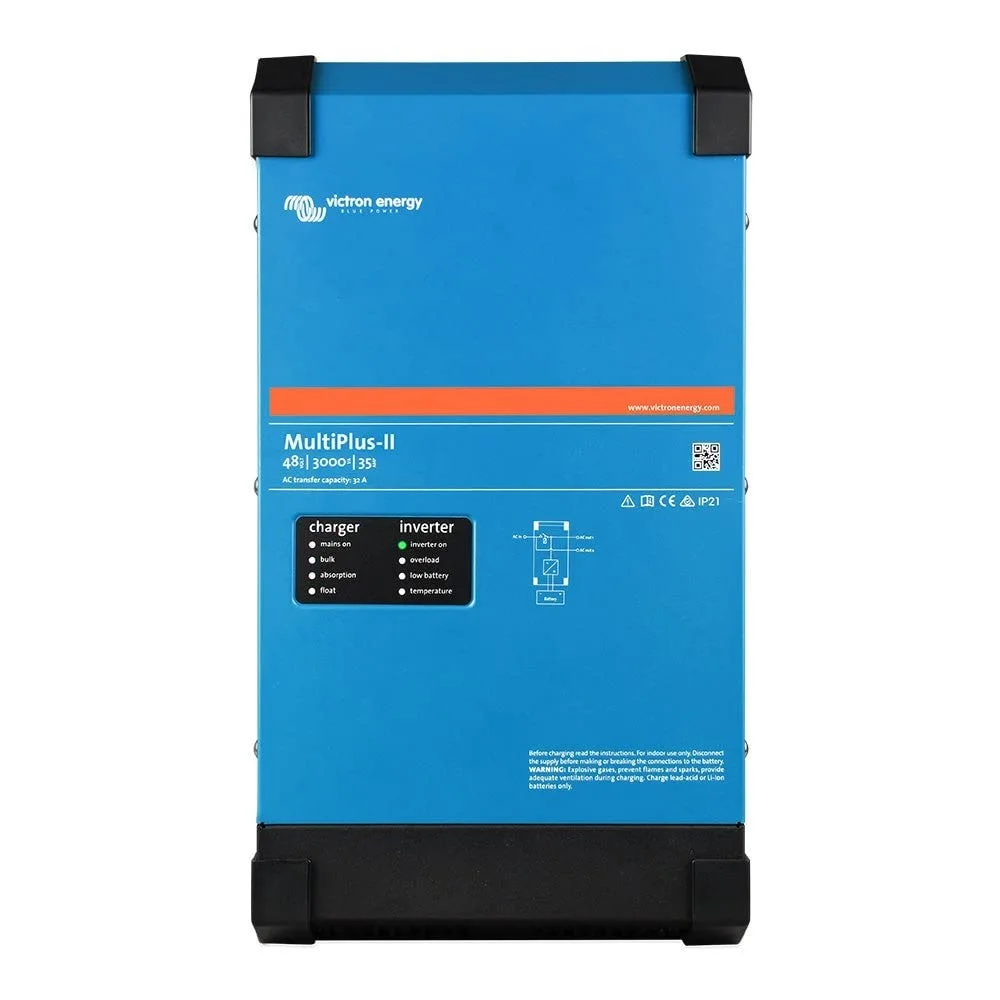

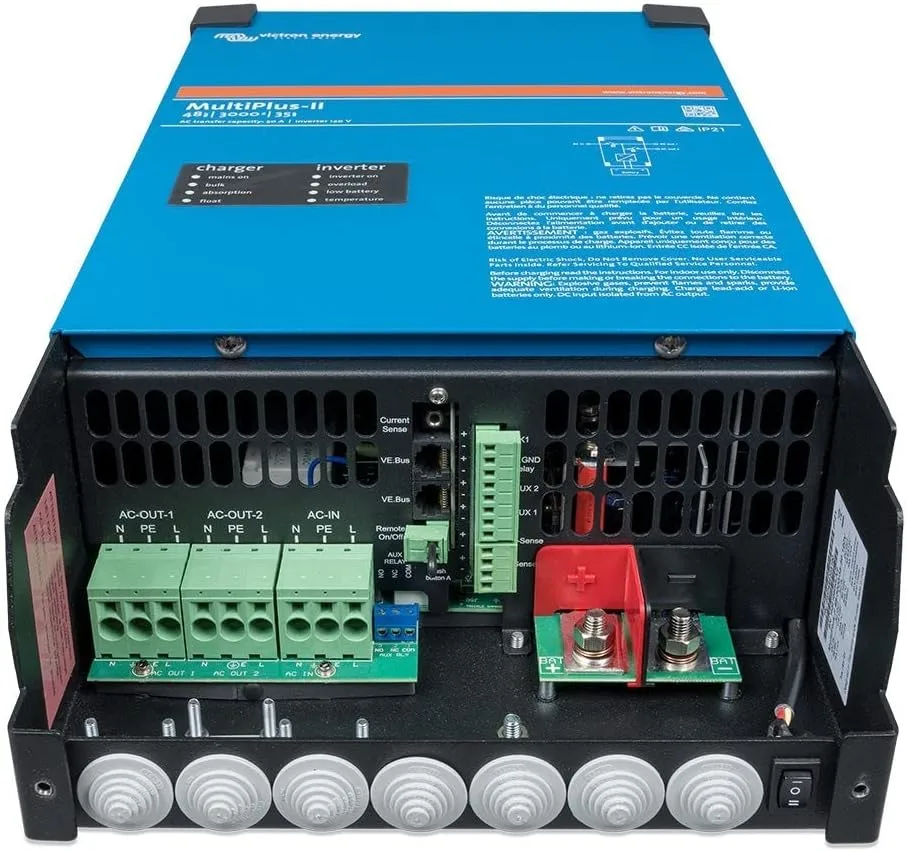

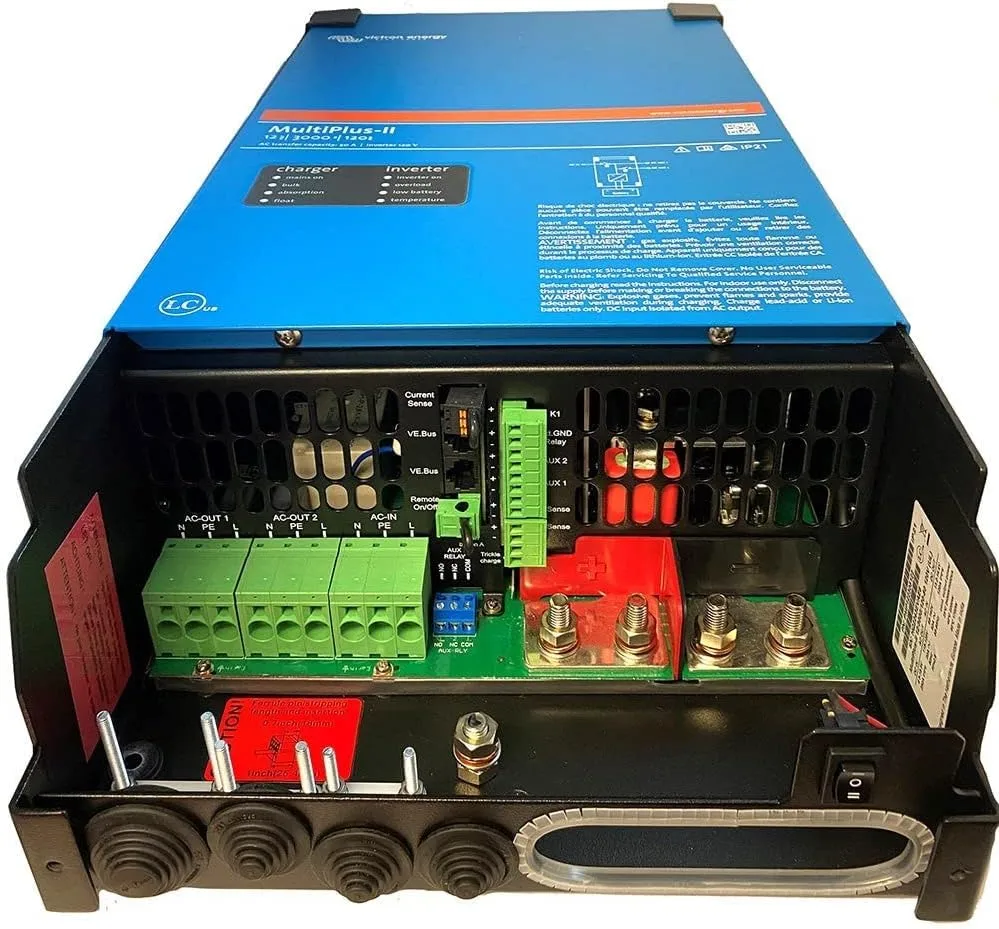

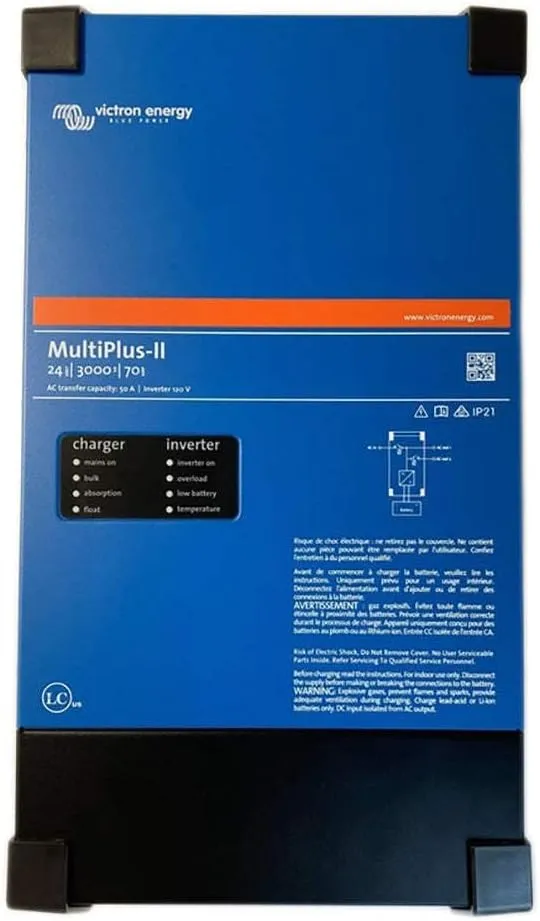

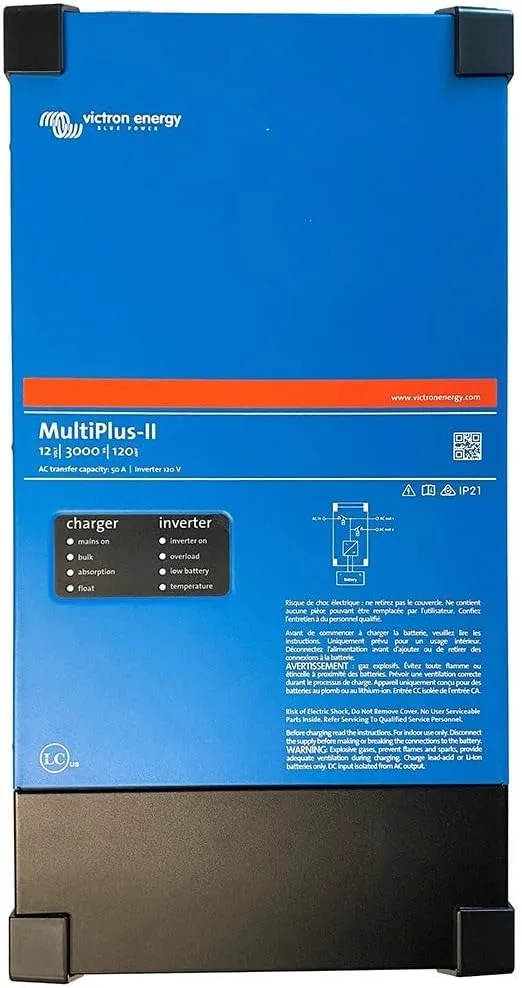

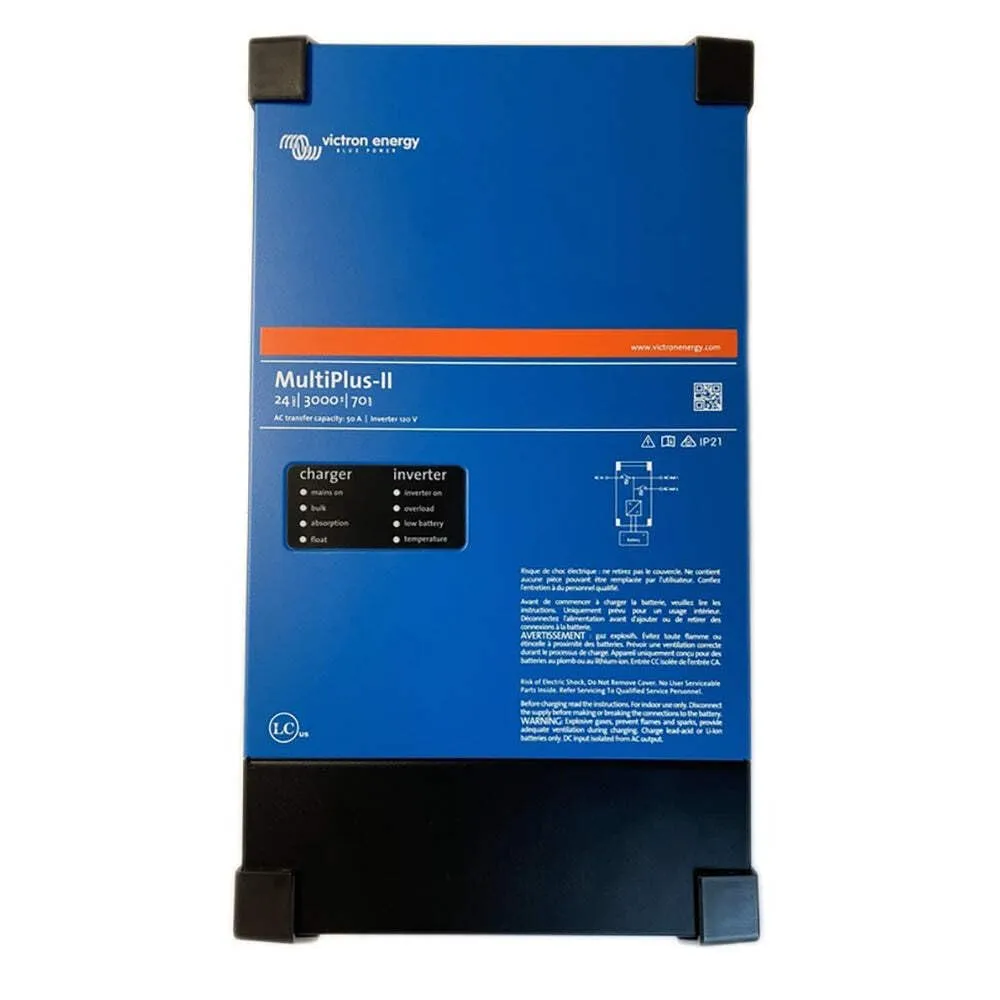

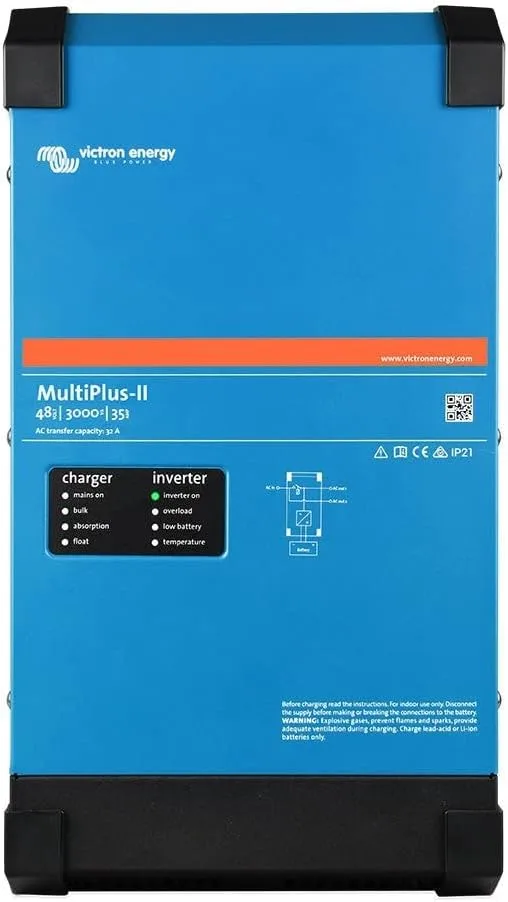

Victron Energy MultiPlus-II Pure Sine Wave Inverter Charger, UL-Certified, 120V
Customize
The Victron Energy MultiPlus-II 3000VA pure sine wave inverter/charger unifies the functions of the MultiPlus and MultiGrid to deliver reliable AC power and flexible energy management. Key features include PowerAssist and PowerControl to prevent overload of limited AC sources, an automatic UPS function with transfer within milliseconds, a built-in 50A transfer switch and peak output capability up to 5500W. The unit supports ESS integration and external current sensing for optimized self-consumption, and offers remote monitoring and control when paired with GX devices and the VRM app/portal. Designed for system scalability and professional use, it includes VE.Bus communication for parallel, split-phase and three-phase operation, programmable relay and auxiliary outputs, and a robust steel blue enclosure with IP22 protection.
Specifications:
| Materials & Construction | |
| Outer Material | Steel |
| Product Details | |
| Charger Input - Voltage | 120vac |
| Charger Output - Amps | 50a |
| Charger Output Voltage | 12vdc |
| Charging Banks | 2 |
| Inverter Cont. Output Wattage | 3000va / 240w |
| Inverter Input Voltage | 12vdc |
| Inverter Output Voltage | 120vac |
| Model Name | Inverter |
| Outlet Qty | None |
| Sizing & Dimensions | |
| Height | 22.76 inches |
| Length | 5.83 inches |
| Product Dimensions | 22.76 x 10.91 x 5.83 inches |
| Weight | 19.84 pounds |
| Width | 10.91 inches |
| Technical Specifications | |
| AC Input Voltage Range | 90-140 VAC |
| Charge Voltage 'Absorption' | 14,4 V |
| Charge Voltage 'Float' | 13,8 V |
| Maximum AC Input Current | 50A |
| Maximum Battery Charge Current | 120 A |
| Power Control & Power Assist | Yes |
| Transfer Switch | 50A |
