Marinco 36180 Wiper Motor, 1000 Series, 12V, 1.5" Shaft, 80 Degree
Customize

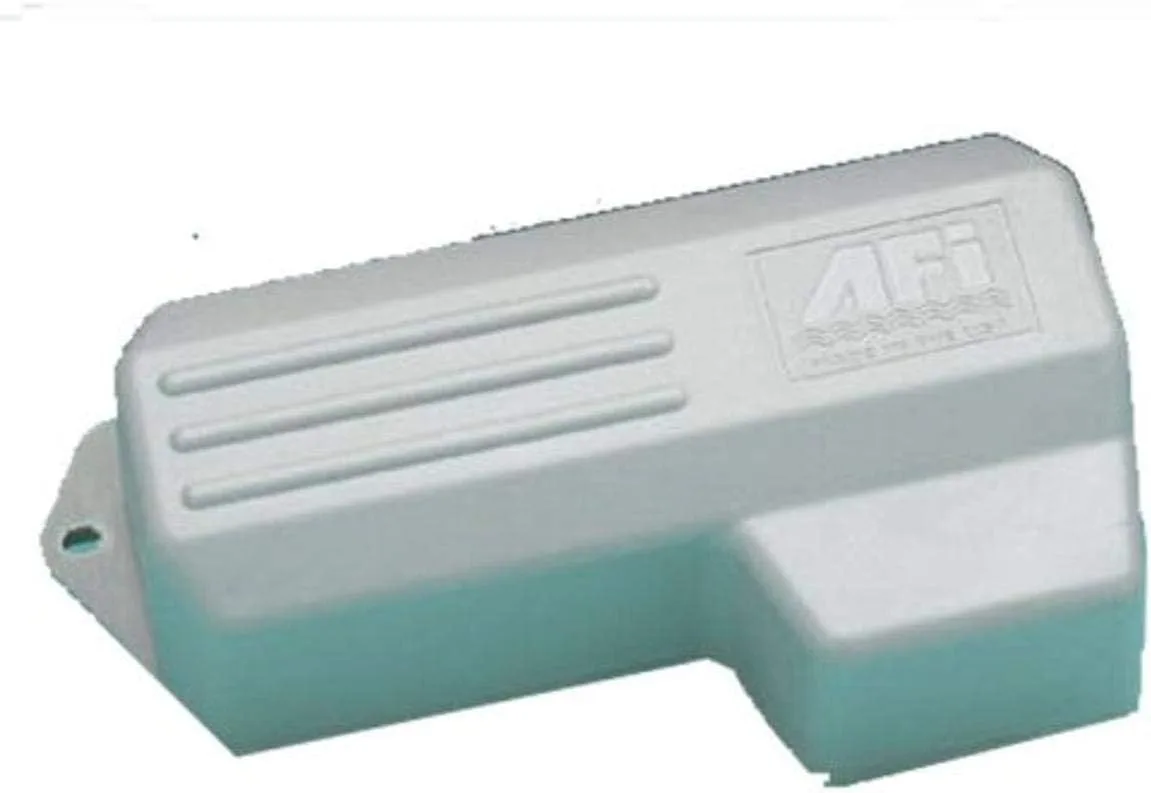

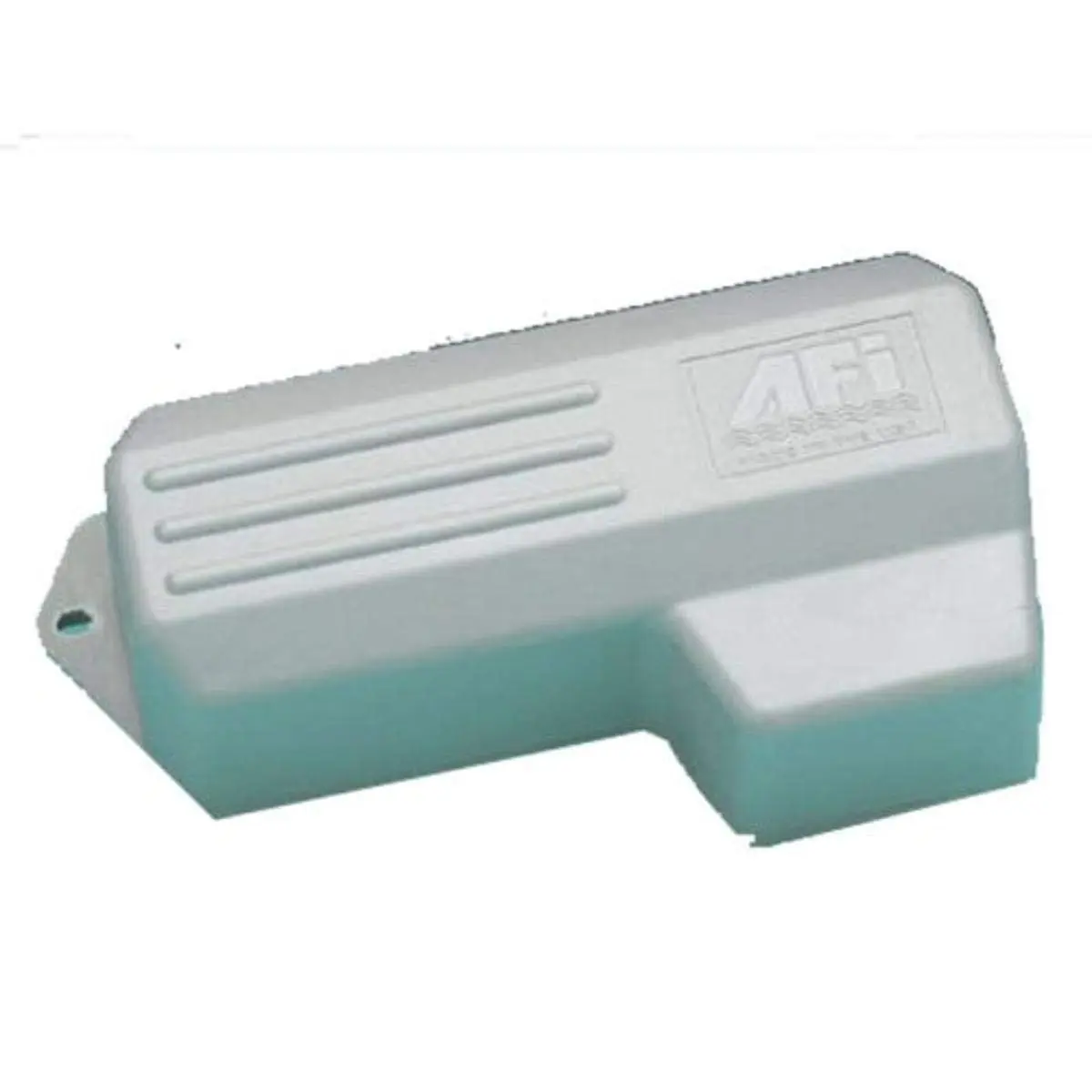

Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80°. The 1000 Waterproof Wiper Motor features a fully sealed waterproof housing made of UV-stabilized, high-temperature, high-impact thermoplastic and RF-shielded circuitry. It powers 18" Deluxe arm and blade combos at sweep sets of 80° or less (or 16" combos at 110°). Factory pre-set sweep of 80° or 110° adjustable to 50°, 65°, 80° or 110°. 0.625" (16 mm) diameter knurled drive shaft with solid brass arm drive nut and anti-rotation drive shaft. Coast-to-park with adjustable right or left self-parking. Retail version includes 5 amp fuse and holder (on/off switch not included). Available in two shaft lengths (1.5" and 2.5"), measures approximately 6.625" L x 3.375" W x 2" D. Stall torque: 55 in-lbs. Stall current: 9.8-10.0 amps. No load current: 0.8-1.2 amps.
- Package length: 23.368 cm
- Package width: 14.986 cm
- Package height: 15.24 cm
- Product Type:FISHING EQUIPMENT
Specifications:
| Materials & Construction | |
| Color | blue |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Global Trade Identification Number | 00035028361802 |
| Horsepower | 1.5 Watts |
| Included Components | Great Product |
| Item Dimensions | 9 x 6 x 6 inches |
| Item Package Dimensions | 9.2 x 6 x 5.9 inches |
| Material | Plastic |
| Model Name | 36180 |
| Number of Items | 1 |
| Sport Type | Boating |
| UPC | 035028361802 |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 6 x 6 inches |
| Size | 1.5" Shaft |
| Weight | 1.8 pounds |
| Width | 6 inches |
| Technical Specifications | |
| Horsepower | 1.5 Watts |
| Voltage | 12 Volts |
| Warranty | Warranty |
