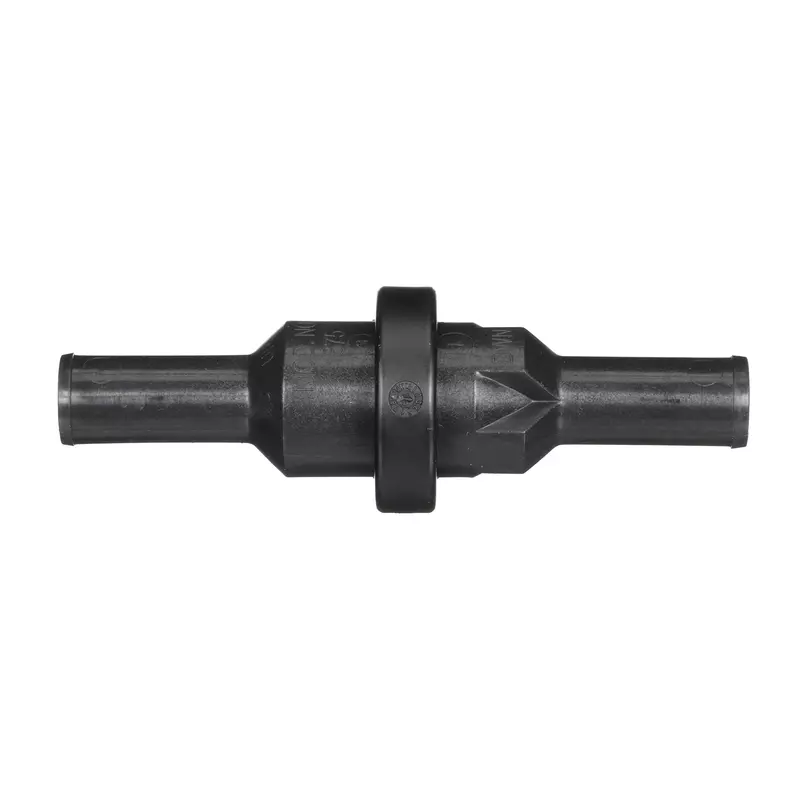

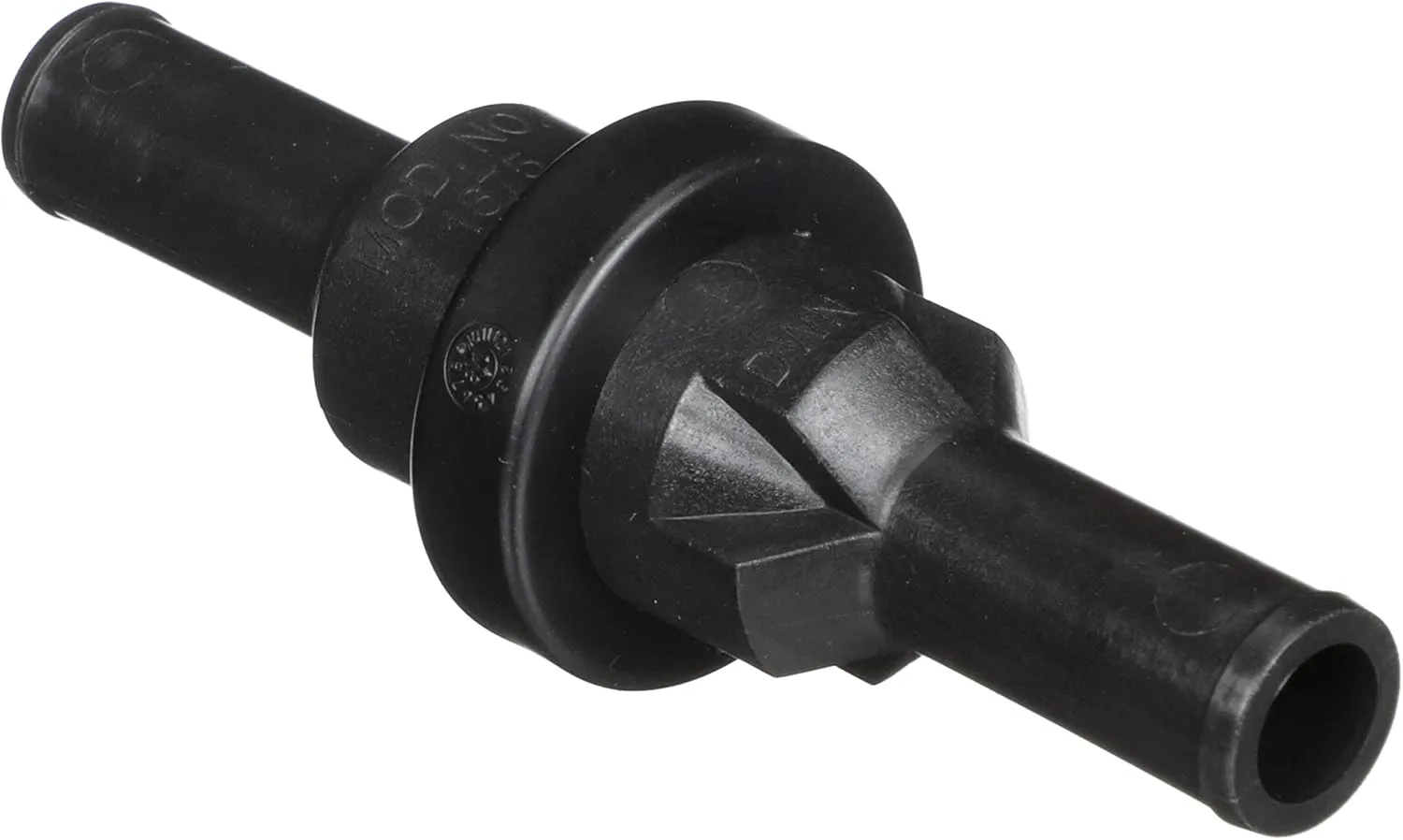

Attwood Fuel Vent Line Surge Protector, Black
Customize
In-Line Fuel Overflow Protector. The fuel vent line surge protector helps avoid refueling spills because the surge-free line causes automatic fuel nozzles to shut off as the tank fills. With non-automatic nozzles, the surge protector causes a gurgling sound to indicate that the tank is full. Incorporates a ball-style check valve with internal baffling. Features: Meets ABYC Standard H-24. Install in-line with traditional tank vent systems that use standard 5/8" ID vent hose. Compact size and operates in any orientation within 45° of vertical. Withstands oil, gas, alcohol-blended fuels. Includes 2 hose clamps for installation in the vent hose. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. This Attwood Fuel Vent Line Surge Protector reliably helps prevent fuel spills at the pump by alerting a boater when the fuel tank is almost filled so the pump can be shut off. Once installed along the tank’s vent line, this surge protector helps an automatic shot-off fuel nozzle stop pumping to prevent a fuel spill. For non-automatic shut-off nozzles, this protector produces an audible gurgling sound to alert a boater that the tank is almost full. This protector’s compact polypropylene body is clearly labeled which end connects on the vent side. It is compatible with Ethanol blended fuels and it doesn’t need to be mounted to the hull. It comes with 2 hose clamps and connects to 5/8-inch hose. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years.
- Comes with 2 hose clamps and connects to 5/8-inch hose
- Polypropylene
- Compatible with Ethanol blended fuels
- With non-automatic shut-off nozzles, it produces an audible gurgling sound as an alert
- Helps an automatic shot-off fuel nozzle stop pumping
- Installs along tank's vent line
- Helps prevent fuel spills when filling up
Specifications:
| Materials & Construction | |
| Color | Unspecified |
| Material | Polypropylene |
| Outer Material | Polypropylene |
| Product Details | |
| Exterior Finish | painted |
| Global Trade Identification Number | 00022697167569 |
| Included Components | End Product & Information |
| Material | Polypropylene |
| Model Name | Attwood Boat Fuel Filters |
| Number of Items | 1 |
| Number of Ports | 2 |
| Specification Met | CE, DIN 2503, EN 13445 |
| Warranty Description | Please contact us if you experience any issues within 30 days of receipt. |
| Sizing & Dimensions | |
| Height | 5 inches |
| Item Dimensions | 7.75 x 10 x 5 inches |
| Item Package Dimensions | 5.55 x 5.04 x 1.57 inches |
| Length | 7.75 inches |
| Product Dimensions | 7.75 x 10 x 5 inches |
| Weight | 2.4 ounces |
| Width | 10 inches |
| Technical Specifications | |
| Number of Ports | 2 |
| Specification Met | CE, DIN 2503, EN 13445 |
