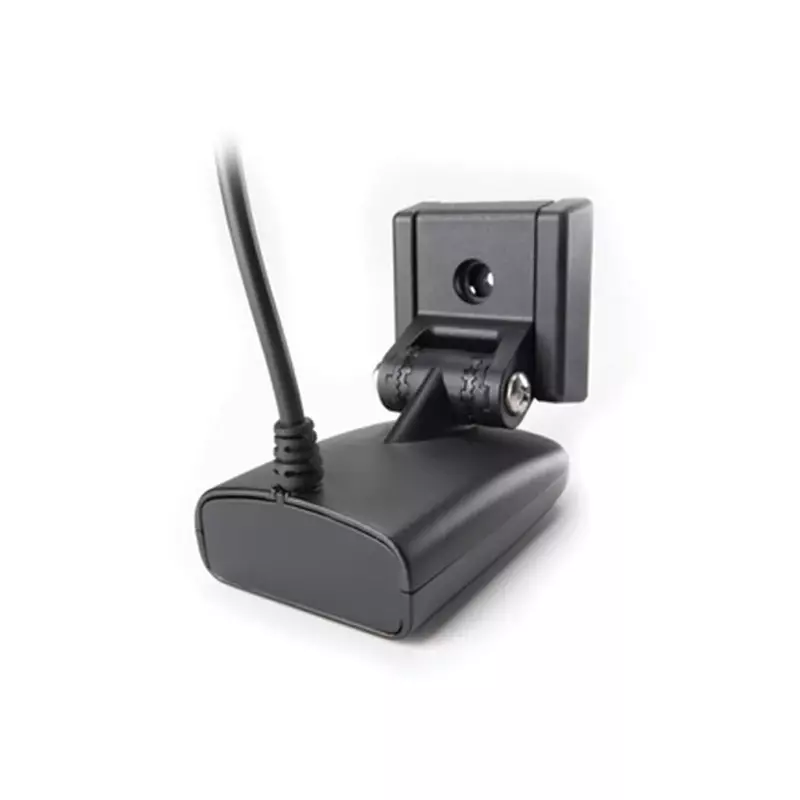

Humminbird 710200-1 XNT 9 SI 180 T - Transom Mount Side Imaging Down Imaging Transducer

Humminbird XNT 9 SI 180 T New transom mount transducer design. Compact dual/side imaging. 20/74/84 degree, 200/83/455 kHz with built in temperature. New design is more secure and is not a prone to kick up at high force of waves. It has an improved running angle and a optional lock down screw to override the kick up. Has same hole pattern as some older version transducers For Use With: 797c WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Cable Length (Feet): 20' , Mounting Style: Transom , Pins: 7 , Speed Included: No , Temperature: Yes , Imaging: Standard/Down/Side , Chirp: No PRODUCT DESCRIPTION Transom Mount, Compact Dual/Side Imaging. 20/60/180 degree, 200/83/455 kHz with built-in temperature. AMAZON.COM The Humminbird XNT 9 SI 180 T Transom Mount Transducer is a high-speed transducer designed to mount on the transom, or back, of the boat, in contact with the surface of the water, and operate in conjunction with a compatible Humminbird sonar or fish finder system. This unit is combination DualBeam PLUS transducer that features 20- and 74-degree cone angles operating on 200 kHz and 83 kHz frequencies respectively, as well as a side-imaging sonar with two 84-degree beams operating at 455 kHz. The XHS 9 HDSI 180 T includes a built-in temperature sensor, a 20-foot cable, and all the necessary high-speed hardware to get up and running right away. Although this unit has the same hole pattern as some older-version transducers, it utilizes a new design that is more secure and less prone to kick up at the high force of waves, as well as having an improved running angle, and an optional lock-down screw to override the kick up. The Humminbird XHS 9 HDSI 180 T transducer is specifically designed for use with Humminbird's 797c SI Combo fish finder and other side-imaging sonar systems. This transducer is backed by Humminbird's one-year limited warranty.

• 1-Year Limited Warranty
• Cable Length: 20 Feet
• Compatible with: HELIX 15/12/10/9 CHIRP MEGA SI+ GPS G4N, HELIX 12/10/9 CHIRP MEGA SI+ G3N, HELIX 12/10/9 CHIRP MEGA SI GPS G2N to the maximum capabilities of the transducer.
• Compatible with: HELIX 12 CHIRP SI GPS, HELIX 10/9 SI GPS, HELIX 7 CHIRP MEGA SI GPS G3/G4, 1199ci HD SI, 1198c SI, 1197c SI, 899ci HD SI, 898ci HD SI, 898c SI to the maximum capabilities of the transducer.
• Compatible with: HELIX 5 SI GPS, HELIX 5 CHIRP SI GPS G2, HELIX 7 SI GPS, HELIX 7 CHIRP SI GPS G2, HELIX 7 CHIRP SI GPS G2N, HELIX 9 SI GPS, 899CI HD SI, 798ci HD SI, 798ci SI, 698ci HD SI, 598ci HD SI, 398C SI to the maximum capability of the unit.
