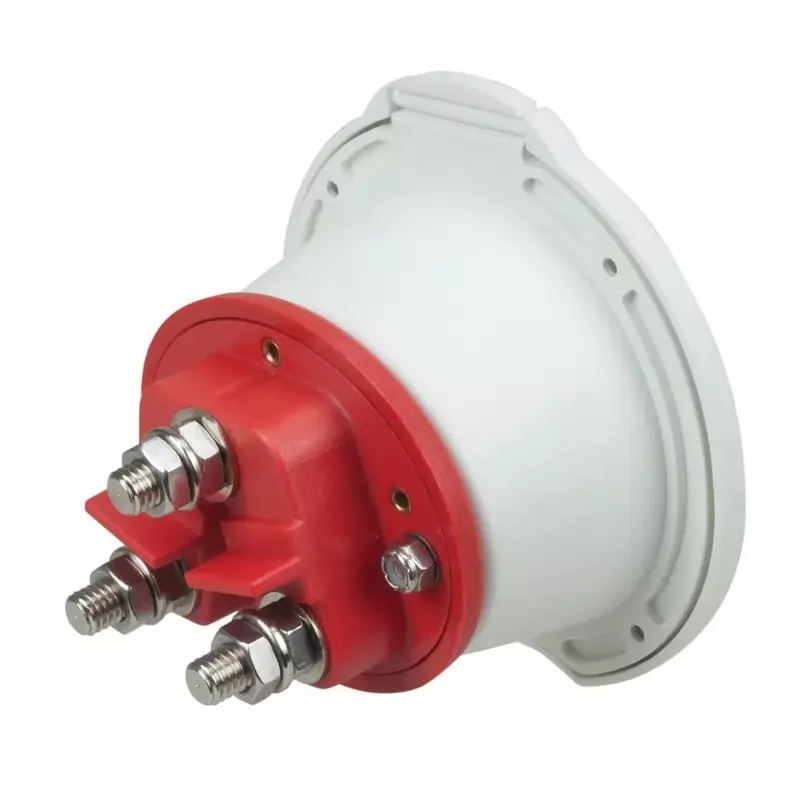

Perko 8521DPC Dual Battery Selector Switch with Cup Mount
Customize
Dual Battery Selector Switch - Cup Mount. The Perko Dual Battery Selector Switch allows the addition of an extra battery for accessories. This switch provides the flexibility of selection between batteries or combined operation of both batteries in parallel for starting or charging. It can also serve as an emergency main disconnect switch in the event of an electrical problem. All models are make before break design and are ignition protected. Features: For two or more batteries; Unique oval shape mounts in a round hole; Removable actuator key. For use with alternators and generators in 6-50 V.D.C. marine electrical systems. Face Dimensions: 3-7/8" x 3-1/4". Cup Diameter Size: 4-1/2". Cup Mount Installation Hole Size: 4". Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start. Ideal for tenders, skiffs, flats boats, inflatables or small boats. Mounts on consoles, lockers, storage bulkheads, interior gunnel walls or under bench seats.
- For use with alternators and generators 6-50 V.D.C. marine electrical systems
- Face Dimensions: 3-7/8" x 3-1/4"
- Cup Diameter Size: 4-1/2"
- Cup Mount Installation Hole Size: 4"
- Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Red Polycarbonate Polymer |
| Outer Material | Red Polycarbonate Polymer |
| Product Details | |
| Actuator Type | Manual |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Red Polycarbonate Polymer |
| Contact Type | Normally Open |
| Control Method | Touch |
| Global Trade Identification Number | 00085226784248 |
| International Protection Rating | IP54 |
| Item model number | 8521DPC |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Operation Mode | Off |
| Terminal | Screw |
| Sizing & Dimensions | |
| Height | 12 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 12 x 12 inches |
| Weight | 1.3 pounds |
| Width | 12 inches |
| Technical Specifications | |
| Contact Type | Normally Open |
| Current Rating | 1.4E+2 Amps |
| Operating Voltage | 50 Volts |
| Terminal | Screw |
| Wattage | 7E+3 |
