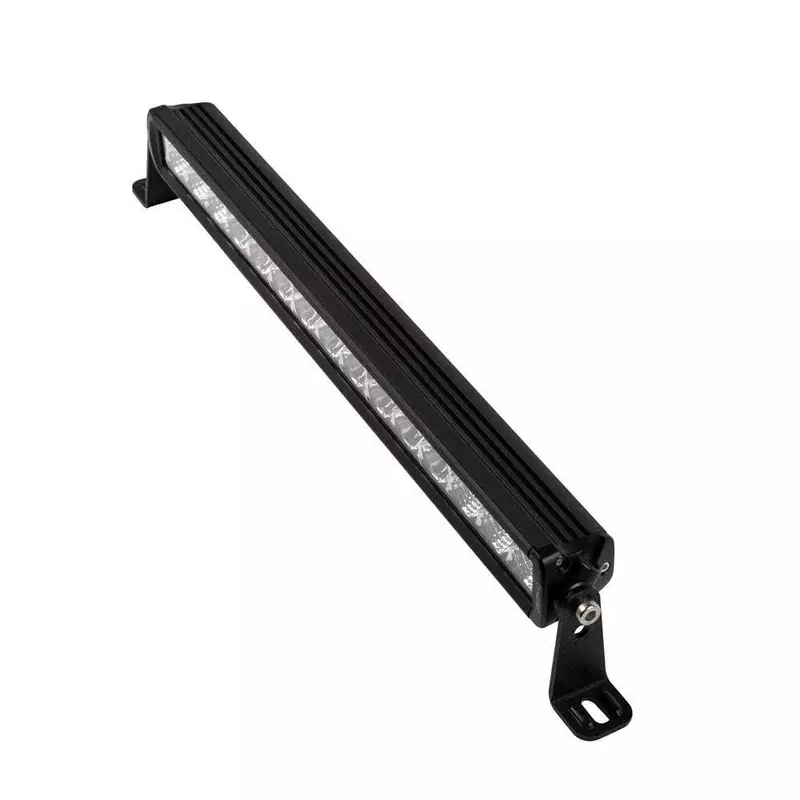

Heise - 20 1/4 inch Single Row Slimline Light Bar (HE-SL2014)
Customize
Heise - 20 1/4 inch Single Row Slimline Light Bar (HE-SL2014). Single Row Slimline LED Light Bar - 20-1/4" SPECS Input Voltage: 10–30V DC Wattage: 45W (15–3W OSRAM LEDs) Raw Lumens: 3600 LUX @ 10M: 1280 / Amazon listing reports Raw Lumens: 4050. Color Temperature: 6000K Beam Pattern: Combo/Flood(90°)/Spot(8°). CONSTRUCTION Housing Material: Powder Coated Aluminum Housing Color: Black Membrane: Gore Lens Material: PC Mounting Bracket: Die–cast Aluminum Mounting: Side and Bottom Hole Dimensions: Brackets turned inward – 20" Brackets turned outward – 22" Mounting Bolt Drill – .25" Height of Light Bar Itself: 2" Depth of Light Bar Itself: 2" Electronics: Integrated–Epoxy Encapsulated Hardware: Stainless 316. OPERATION Operating Temperature: –40°C to +60°C Current Consumption: 2.4 amps @ 13.8 volts IP Rating: IP67 Protections: Reverse Polarity. Recommended for vehicle exterior and off-road lighting applications. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Beam Pattern: Combo/Flood(90 Dig)/Spot(8 Dig)
- Color Temperature: 6000K
- Raw Lumens: 4050
- Wattage: 45W (15-3W OSRAM LEDs)
- Input Voltage: 10-30V DC
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Powder Coated Aluminum |
| Outer Material | Powder Coated Aluminum |
| Product Details | |
| Auto Part Position | Center |
| Beam Pattern | Spot-Flood Combo |
| Form Factor | Bar |
| Global Trade Identification Number | 00086429317363 |
| Included Components | Heise - 20 1/4 inch Single Row Slimline Light Bar (HE-SL2014) |
| Model Number | HE-SL2014 |
| Number of Pieces | 1 |
| Recommended Uses For Product | Vehicle Exterior |
| Remote Control Included | No |
| Style | Slimline |
| Water Resistance Level | Water Resistant |
| Sizing & Dimensions | |
| Length | 20.25 inches |
| Product Dimensions | 20.25 inches (length) |
| Size | 20.25 inches |
| Weight | 2 pounds |
| Technical Specifications | |
| Color Temperature | 6000K |
| Current Consumption | 2.4 amps @ 13.8 volts |
| Input Voltage | 10–30V DC |
| IP Rating | IP67 |
| Lens Material | PC |
| Mounting Bracket | Die–cast Aluminum |
| Operating Temperature | –40°C to +60°C |
| Protections | Reverse Polarity |
| Raw Lumens | 4050 |
| Voltage - Input Range (Volts) | 12/24v |
| Wattage | 45W |
