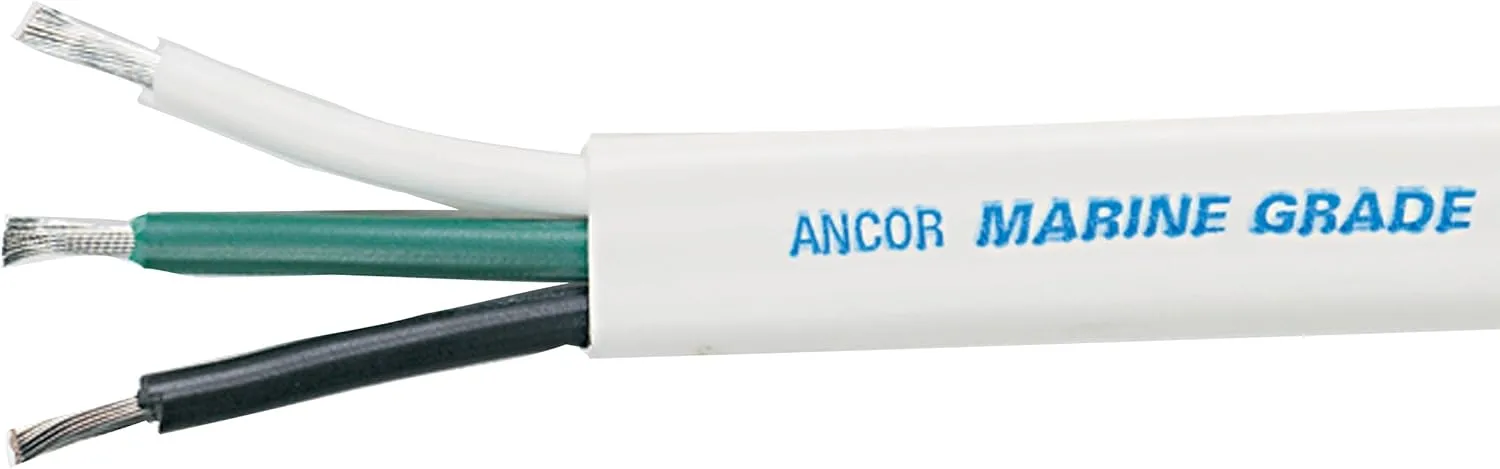

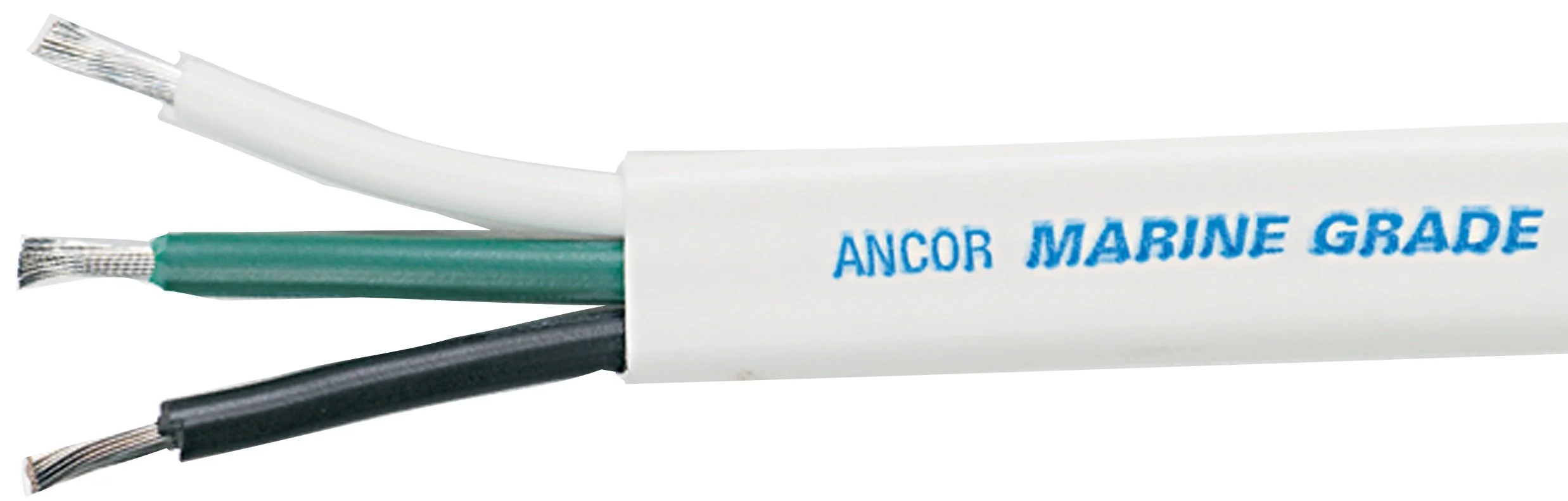

Ancor 131525 Triplex Cable, 14/3 AWG (3 x 2mm2), Flat - 250ft
Customize
White Triplex Cable - 14/3 AWG - Flat - 250'. Ancor Triplex Cable surpasses UL Boat Cable standards with ultra-flexible (Type 3/Class K) stranding to resist fatigue from vibration and flexing. The outer white jacket is easy to remove and provides excellent abrasion resistance. Proprietary premium vinyl insulation remains flexible in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Insulation is rated at 600 volts, 105°C dry and 75°C wet. Features three Marine Grade primary conductors (white, black and green) in a white common jacket. Tinned copper stranding provides added corrosion resistance for marine environments. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Sport type: Boating
- Exclusive insulation is rated at 600 Volts.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection.
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments.
Specifications:
| Materials & Construction | |
| Color | Black/Green/White |
| Gauge | 14.0 |
| Material | Synthetic |
| No. of wires | 3 |
| Number of Cable Strands | Multi Strand |
| Product Details | |
| Model Name | 62564 |
| Number of Items | 1 |
| Size | 250 Feet |
| Style | 14 Awg, Flat Triplex |
| Sizing & Dimensions | |
| Height | 9.5 inches |
| Length | 10.5 inches |
| Product Dimensions | 10.5 x 10.5 x 9.5 inches |
| Size | 250 Feet |
| Weight | 8 pounds |
| Width | 10.5 inches |
| Technical Specifications | |
| Included Components | Does not apply |
| Sport Type | Boating |
| Voltage | 600 Volts |
| Warranty | As labeled |
