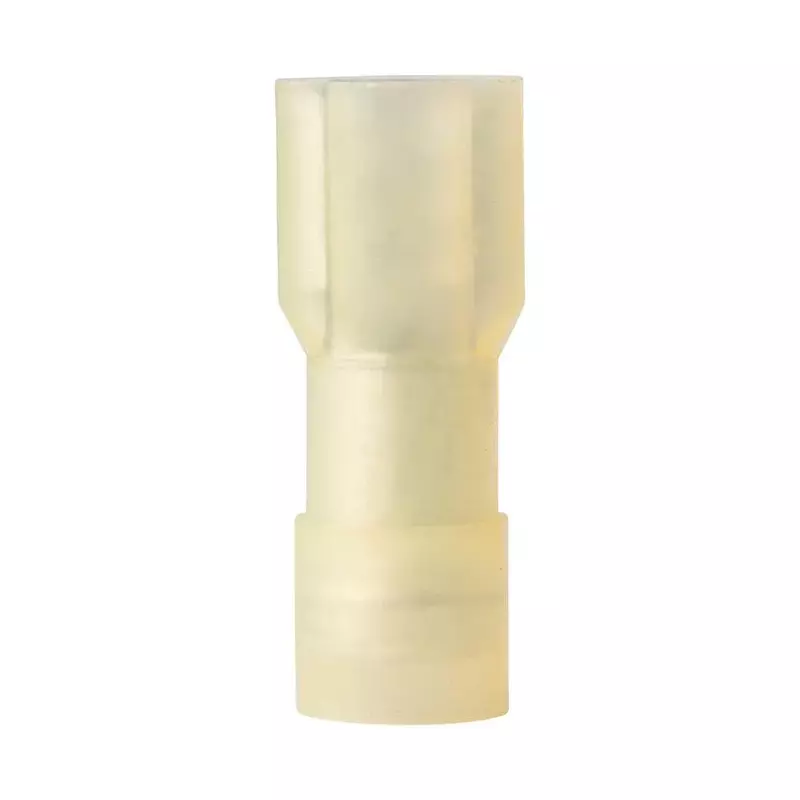

Ancor Nylon Fully Insulated Disconnects 12-10 Awg, Female 100 Pack 12 to 10-Gauge
ANCOR nylon fully insulated female disconnect terminals for 12-10 AWG — marine-grade tinned copper contacts, nylon insulators and double-crimp barrels. 0.250" tab, non-heat-shrink; 100-piece pack for electrical and marine wiring.
$49.99 $49.99
Customize
Available Quantity
5 Product Details
Nylon Fully Insulated Disconnect - Female - 12-10 - 100-Piece. Ancor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection. Features: 0.250 (6.4 mm) tab size; Nylon insulated with insulation grip; Double crimp, funnel entry; UL 310; Gauge: 12-10 AWG; Type: Disconnects; Package Qty: 100; Heat Shrink: No. Includes: marine-grade construction, tinned copper contacts, nylon insulation, and double-crimp design for secure electrical connections.
- UL 310
- Tinned copper gives the least electrical resistance but the most corrosion protection
- Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort
- Ancor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment
- 100 Pack of 12-10 AWG, Female fully insulated nylon disconnects
Specifications:
| Materials & Construction | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Nylon, Copper |
| Stud Size | 10 Gauge |
| Terminal | Ring Terminal |
| Product Details | |
| Gauge | 12-10 Awg |
| Included Components | Great Product |
| Model Number | 221428 |
| Size | 100 Pack |
| Style | 12-10 Awg, Female |
| Type | Disconnects |
| Sizing & Dimensions | |
| Height | 2.69 inches |
| Length | 1.75 inches |
| Product Dimensions | 1.75 x 4.38 x 2.69 inches |
| Product Weight | 0.04 Pounds |
| Size | 100 Pack |
| Weight | 0.64 ounces |
| Width | 4.38 inches |
| Technical Specifications | |
| Specification Met | ul |
| Temperature Rating | 221 degree fahrenheit |
| Warranty | Warranty |
