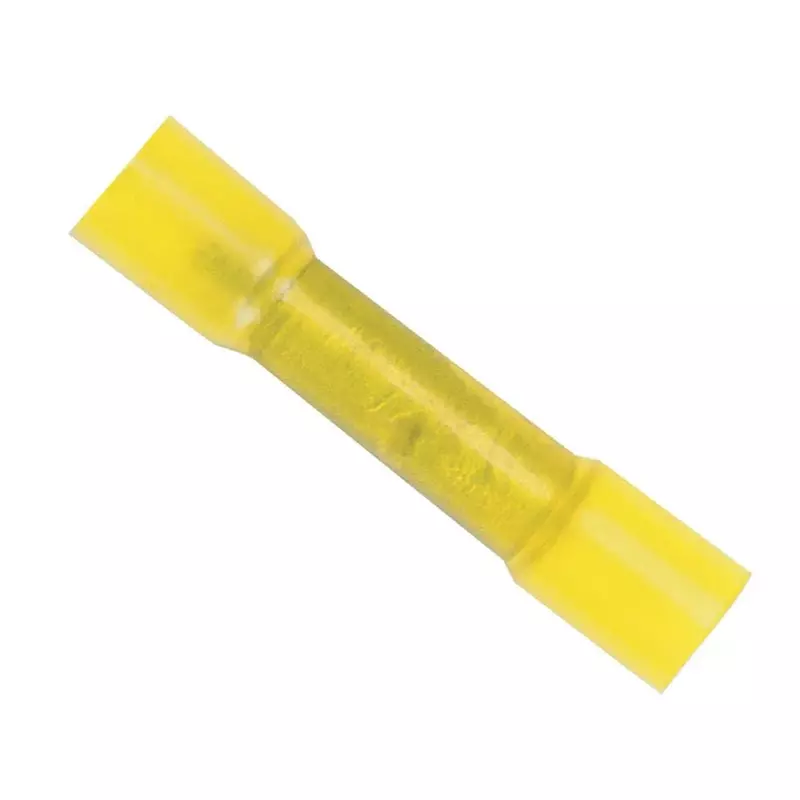

Ancor 309203 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Butt Connectors (12 to 10-Gauge, Yellow
ANCOR 309203 marine-grade heat-shrink butt connectors — nylon insulated with adhesive lining and tinned copper contacts. Shrinks to form a watertight seal and provides vibration/strain relief. For 12–10 AWG wires. 3-pack. UL & CSA listed.
$5.60 $5.60
Customize
Available Quantity
28 Product Details
Ancor 309203 Marine Grade Heat Shrink Butt Connectors combine cross-linked polyolefin tubing and heat-activated adhesive lining to provide a durable, watertight seal for 12–10 AWG connections. The nylon insulator offers marine-grade resistance to sunlight, water, oil and chemicals and provides strain relief and cut-through protection. Contacts are tinned copper for corrosion resistance and maximum current flow; brazed seam ensures strength. Highest shrink ratio (shrinks to 1/3 original size); shrinks at 257°F (125°C). Operating temperature range -40°C to 110°C. UL listed and CSA recognized. Pack quantity: 3. Ideal for marine and general electrical wiring applications.
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 3 Pack of 12-10 AWG Heat Shrink Butt Connectors
Specifications
Materials & Construction
- Color:12-10 AWG
- Contact Material:Copper
- Insulation Material:Nylon
- Material:Nylon, Copper
Product Details
- Connector Type:Butt Splice
- Gauge:12-10 AWG
- Heat Shrink:Yes
- Number of Items:1
- Package Qty:3
- Style:Heat Shrink
Sizing & Dimensions
- Height:4 inches
- Length:0.5 inches
- Product Dimensions:0.5 x 1.6 x 4 inches
- Size:3 Pack
- Weight:0.48 ounces
- Width:1.6 inches
Technical Specifications
- Specification Met:UL
- Temperature Rating:257 degree fahrenheit
- Terminal:Butt Terminal
