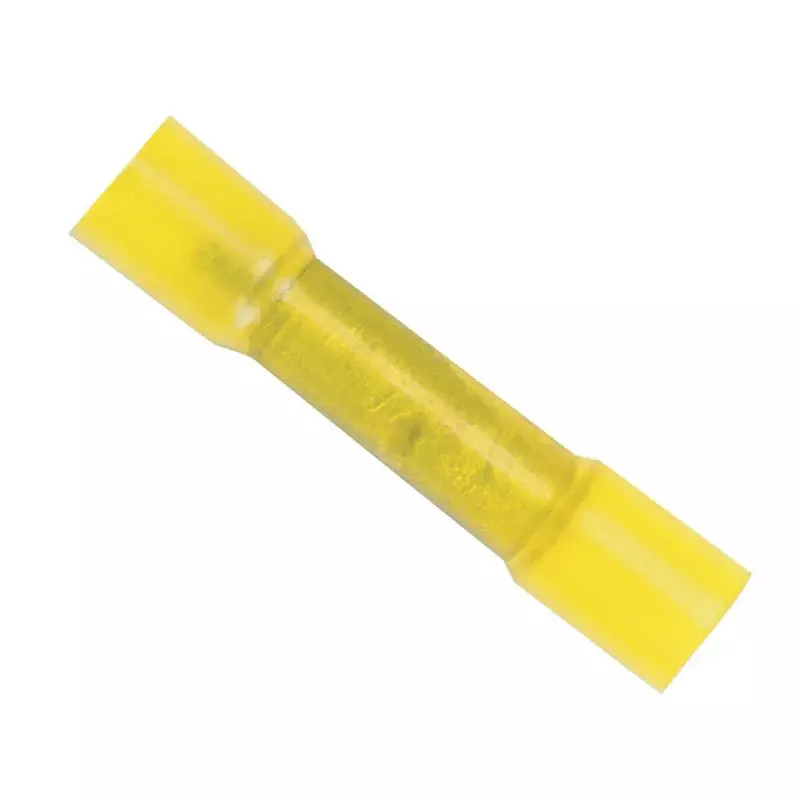

Ancor 309299 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Butt Connectors (12 to 10-Gauge, Yellow
Customize
Ancor 309299 12-10 Heat Shrink Butt Connectors — 100-Pack. Marine-grade nylon insulated, adhesive-lined heat shrink butt connectors for 12-10 AWG wires. Cross-linked polyolefin tubing provides superior strength and resists burning compared to PVC. Heat-activated adhesive lining creates an impervious seal to salt water, oil, acids and sunlight while providing strain relief. Nylon insulator affords marine-grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. Connectors are tinned for corrosion resistance, use pure copper contacts for maximum current flow, and have brazed seams for strength. Shrink ratio is up to 3:1 (shrinks at 257°F / 125°C). UL Listed and CSA Recognized. Wire range: 12-10 AWG. Package quantity: 100. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 100 Pack of 12-10 AWG Heat Shrink Butt Connectors
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance, Pure copper for maximum current flow
- UL listed and CSA recognized
Specifications:
| Materials & Construction | |
| Color | 12-10 AWG |
| Material | Copper |
| Product Details | |
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Style | Heat Shrink |
| Terminal | Butt Terminal |
| Sizing & Dimensions | |
| Height | 4.76 inches |
| Length | 0.94 inches |
| Product Dimensions | 0.94 x 8 x 4.76 inches |
| Size | 100 Pack |
| Weight | 0.705 pounds |
| Width | 8 inches |
| Technical Specifications | |
| Package Qty | 100 |
| Temperature Rating | 257 degree fahrenheit |
