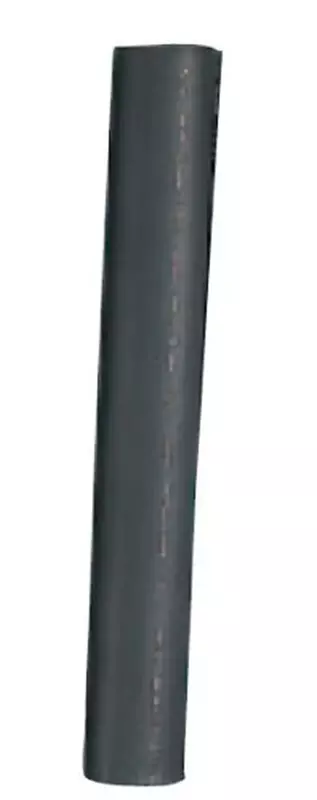

Ancor 326603 Marine Grade Electrical Adhesive Lined Heavy Wall Heat Shrink Battery Cable Tubing (3/4-Inch Diameter
Customize
Heavy Wall Heat Shrink Tubing - 3/4" x 3" - 3-Pack - Red. Package of 3 Red 3" (7.6 cm) long sections with a 3/4" (19 mm) diameter that shrinks to 1/4" (6.4 mm). Wire Range: 8-2/0 AWG. Features: Cross linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat-activated adhesive lining provides an impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. 3:1 Ratio. Shrinks at 257°F / 125°C. Operating temperature range of -40°C to 110°C. UL 224. From Rainforest/Amazon listing: Ancor 326603 Marine Grade Electrical Adhesive Lined Heavy Wall Heat Shrink Battery Cable Tubing (3/4-Inch Diameter, 3-Inches Long, Red, 3-Pack). Marine grade, adhesive lined, heavy wall construction suitable for battery cable and marine electrical applications.
- Product Type: Fishing Equipment
- Item Package Weight: 0.050 Pounds
- Item Package Dimensions: 11.176 L X 6.858 W X 2.286 H (Cm)
- Sport Type: Boating
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Model Name | 326603 |
| Number of Items | 1 |
| Size | 3-Inches Long |
| Sport Type | Boating |
| Style | Industrial |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 1 inches |
| Weight | 0.32 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Operating Temperature Range | -40°C to 110°C |
| Shrink Ratio | 3:1 |
| Shrink Temperature | 257°F / 125°C |
| Standards | UL 224 |
| Wire Range | 8-2/0 AWG |
