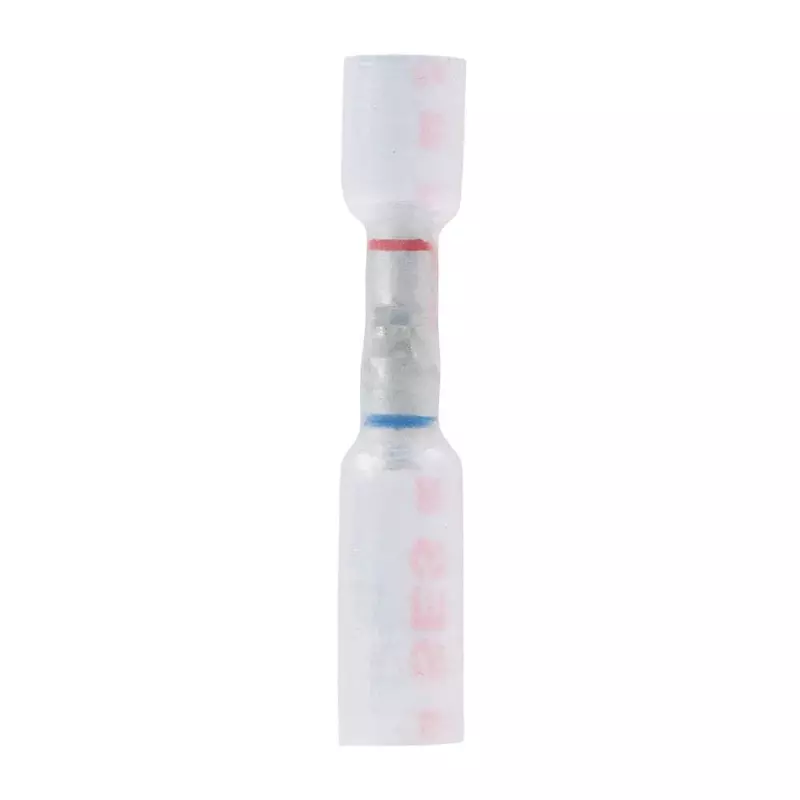

Ancor 320103 Heat Shrink Butt Connector, Step-Down, 22-18/22-14, 3-Pack
Customize
Ancor 320103 Heat Shrink Butt Connector, Step-Down, 22-18/22-14, 3-pack. Ancor's adhesive-lined heat shrink butt connectors provide a sealed, corrosion-resistant connection for marine and industrial wiring. Designed for step-down connections between gauge sizes or multi-wire connections. Features include a flared barrel with uniform copper wall for reliable mechanical crimps, crimp indicator on barrel for correct tool placement, colored barrel stripes to indicate crimp die size, clear heat-shrink tubing for crimp accuracy, and a 4:1 shrink ratio tubing to ensure a watertight seal. Includes 3 heat shrink butt connectors per package. Meets UL specification and offers temperature resistance to 221 degrees Celsius. Proposition 65 warning applies.
- 4:1 shrink ratio tubing to ensure a watertight seal between wires
- Flared barrel with uniform Copper wall ensures an easy and proper mechanical crimp
- Crimp indicator on barrel for proper placement of installation tool
- Clear heat shrink tubing ensures crimp accuracy
- Colored stripes on the barrel indicate which crimp die to Use, regardless of application
Specifications:
| Materials & Construction | |
| Color | Red, Blue |
| Material | Copper |
| Product Details | |
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Global Trade Identification Number | 00091887983289 |
| Included Components | Heat Shrink Butt Connectors (3) |
| Insulation Material | Polyolefin |
| Item Package Dimensions L x W x H | 6.3 x 2.99 x 1.3 inches |
| Number of Items | 1 |
| Part Number | 320103 |
| Size | 3 Pack |
| Specification Met | UL |
| Temperature Rating | 221 degree celsius |
| Terminal | Butt Terminal |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item Dimensions Lx Wx H | 1 x 1 x 1 inches |
| Length | 1 inches |
| Product Dimensions | 1"L x 1"W x 1"H |
| Product Weight | 0.05 Pounds |
| Weight | 0.8 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Temperature Rating (C) | 221 degree celsius |
