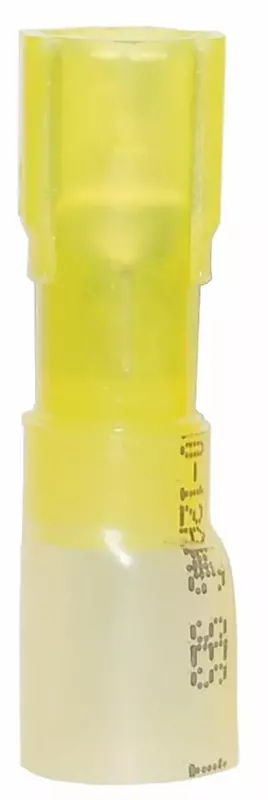

Ancor 320825 Heat Shrink Disconnect, Female, 12-10, 25pc
Customize
12-10 Female Heatshrink Disconnects - 25-Pack Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief. Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Gauge: 12-10 AWG , Type: Disconnects , Package Qty: 25 , Heat Shrink: Yes Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.
- UL 310 and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 25 Pack of 12-10 AWG female heat shrink disconnects
Specifications:
| Materials & Construction | |
| Color | 12-10 AWG |
| Contact Material | Copper |
| Material | Copper |
| Product Details | |
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Gauge | 12-10 Awg |
| Heat Shrink | Yes |
| Included Components | Heat Shrink Female Disconnects (25) |
| Maximum Voltage | 1.2E+2 Volts |
| Number of Items | 25 |
| Package Qty | 25 |
| Size | 25 Pack |
| Specification Met | CSA, UL |
| Style | .250 Tab - Female |
| Temperature Rating | 221 degree fahrenheit |
| Terminal | Butt Terminal |
| Type | Disconnects |
| Unit Count | 25.0 Count |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 2 x 1 inches |
| Size | 25 Pack |
| Weight | 0.16 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Maximum Voltage | 1.2E+2 Volts |
| Specification Met | CSA, UL |
| Temperature Rating | 221 degree fahrenheit |
