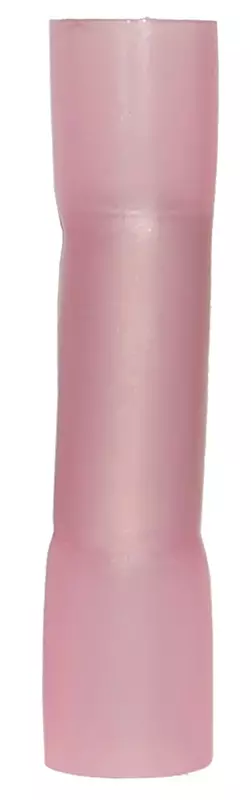

Ancor 309325 Heat Shrink Butt Connector, #8, 25pc
ANCOR Heat Shrink Butt Connector #8 — 25-pack. Heat-activated adhesive in sleeve forms a water-tight seal for vibration and strain relief; nylon insulation, pure copper contact, tinned for corrosion resistance; UL recognized.
$56.99 $56.99
Customize
Available Quantity
9 Product Details
Ancor Heat Shrink Butt Connector - #8 (25-Pack). Ancor heat shrink connectors feature heat-activated adhesive built into the sleeve of the heat shrink tubing to form a water-tight seal when heated. These butt connectors provide excellent vibration and strain relief, pure copper contact for maximum current flow, and are tinned for corrosion resistance. Insulation is nylon; connectors are UL recognized and CSA acknowledged. Gauge: 8 AWG. Heat shrink: Yes. Package Qty: 25. Included components: Heat Shrink Butt Connectors. Ideal for marine, automotive, and general electrical wiring and connecting applications where a sealed, durable connection is required.
- Ul listed and csa recognized
- Shrinks to form a water tight seal and the ultimate vibration and strain relief
- Heat activated adhesive built into the sleeve of the heat shrink tubing. Brazed seam for maximum strength
- Pure Copper for maximum current flow
- Tinned for corrosion resistance
Specifications:
| Materials & Construction | |
| Color | 8 AWG |
| Material | Copper |
| Outer Material | Nylon |
| Product Details | |
| Connector Terminal Type | Butt Terminal |
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Included Components | Heat Shrink Butt Connectors (100) |
| Insulation Material | Nylon |
| Model Number | 309325 |
| Number of Items | 1 |
| Part Number | 309325 |
| Specification Met | UL |
| Style | Heat Shrink |
| Temperature Rating | 221 degree fahrenheit |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 0.91 inches |
| Length | 2.72 inches |
| Product Dimensions | 2.72 x 4.41 x 0.91 inches |
| Size | 25 Pack |
| Weight | 3.2 ounces |
| Width | 4.41 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 221 degree fahrenheit |
