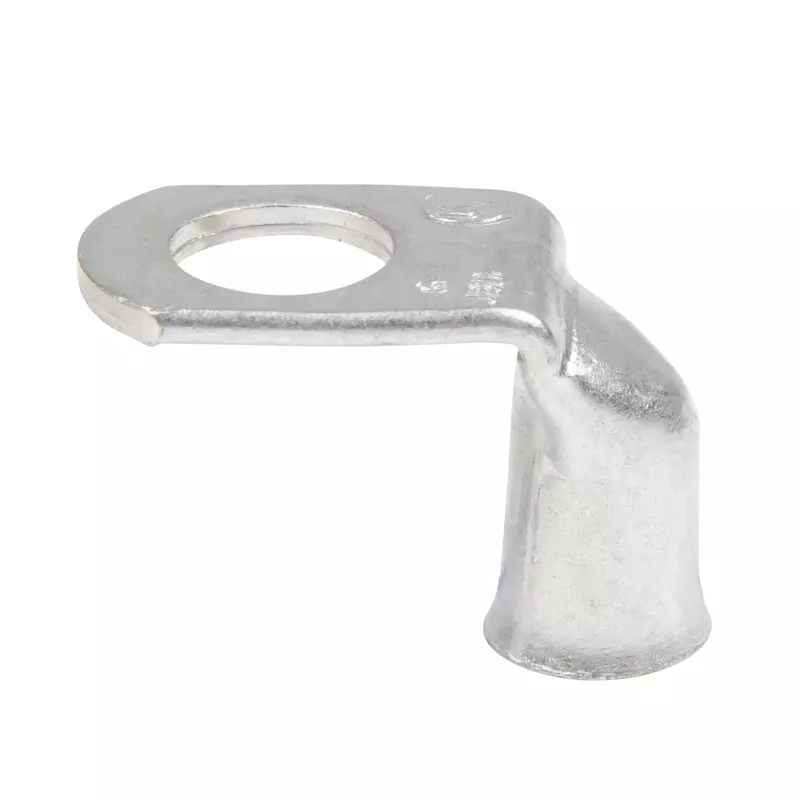

Ancor Marine Grade Products 262245 Tinned Lug 90degree #6 5/16', 2pc
ANCOR marine-grade 90° tinned copper crimp lug for #6 AWG wire with 5/16" stud. Seamless barrel and closed-end design resist corrosion for reliable marine electrical connections. 2-piece pack.
$7.99 $7.99
Customize
Available Quantity
18 Product Details
Ancor Marine Grade® lugs are manufactured from heavy-duty annealed tinned copper for maximum current flow and corrosion resistance. The 90° bend enables easier wire routing in tight spaces. Seamless barrel design provides maximum strength when crimped and the closed end seals out moisture. UL 486A rated. Product details: Type: Lugs; Post Size: 5/16"; Package Qty: 2; Heat Shrink: No; Gauge: 6 AWG. Includes 2 copper lugs per package. Ideal for marine and boating electrical systems where salt and moisture resistance are critical.
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 5/16", 7.9 mm
- 90 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 6 AWG 5/16", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Gauge | 6.0 |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Material | Copper |
| Model Name | Ancor boating wire terminals |
| Number of Items | 1 |
| Size | 2 Pack |
| Specification Met | UL |
| Stud Size | 5/16 inch |
| Temperature Rating | 90 degree celsius |
| Terminal | Screw Terminal |
| Type | Lugs |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 2 x 1 inches |
| Size | 2 Pack |
| Weight | 0.35 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 90 degree celsius |
