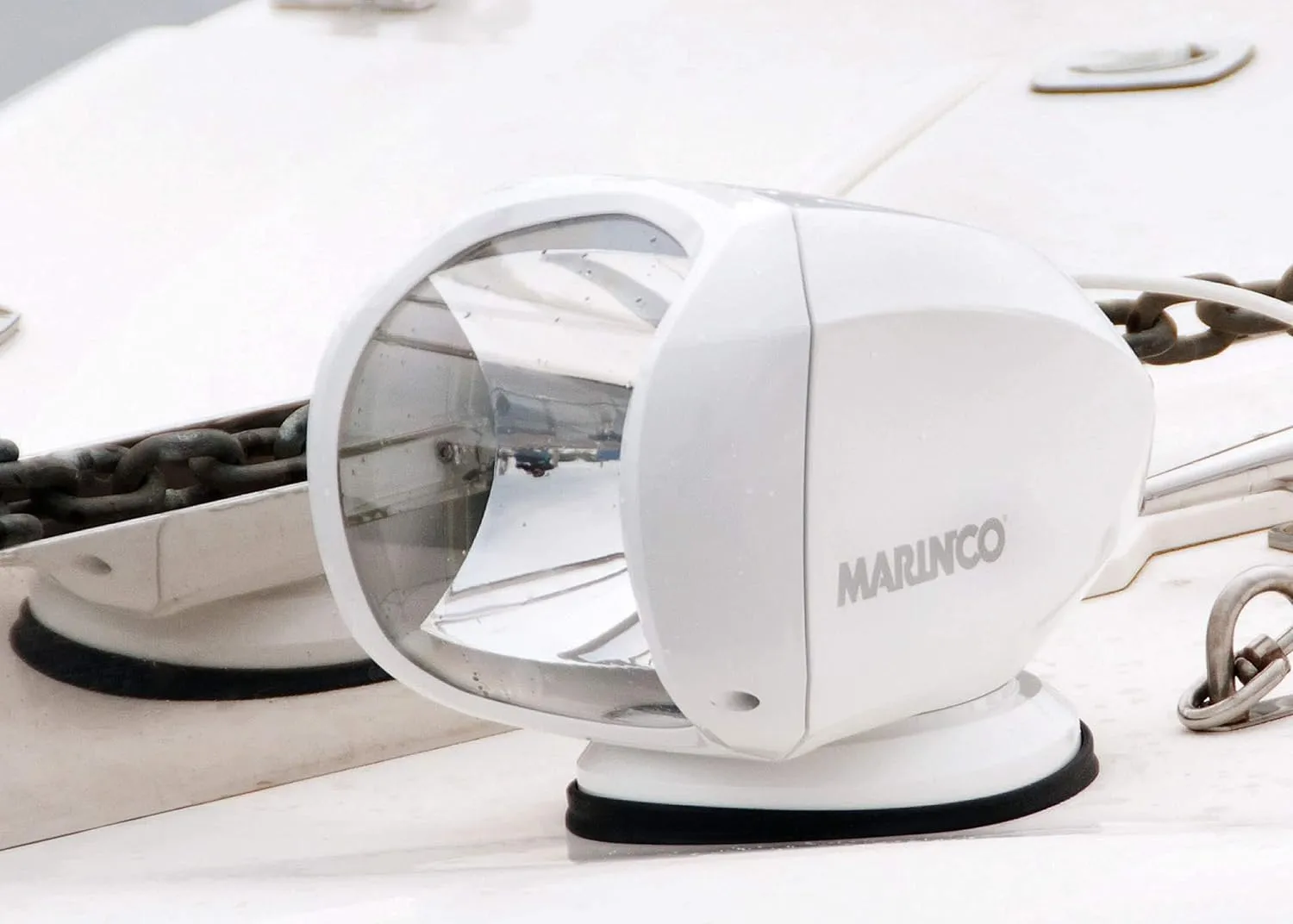

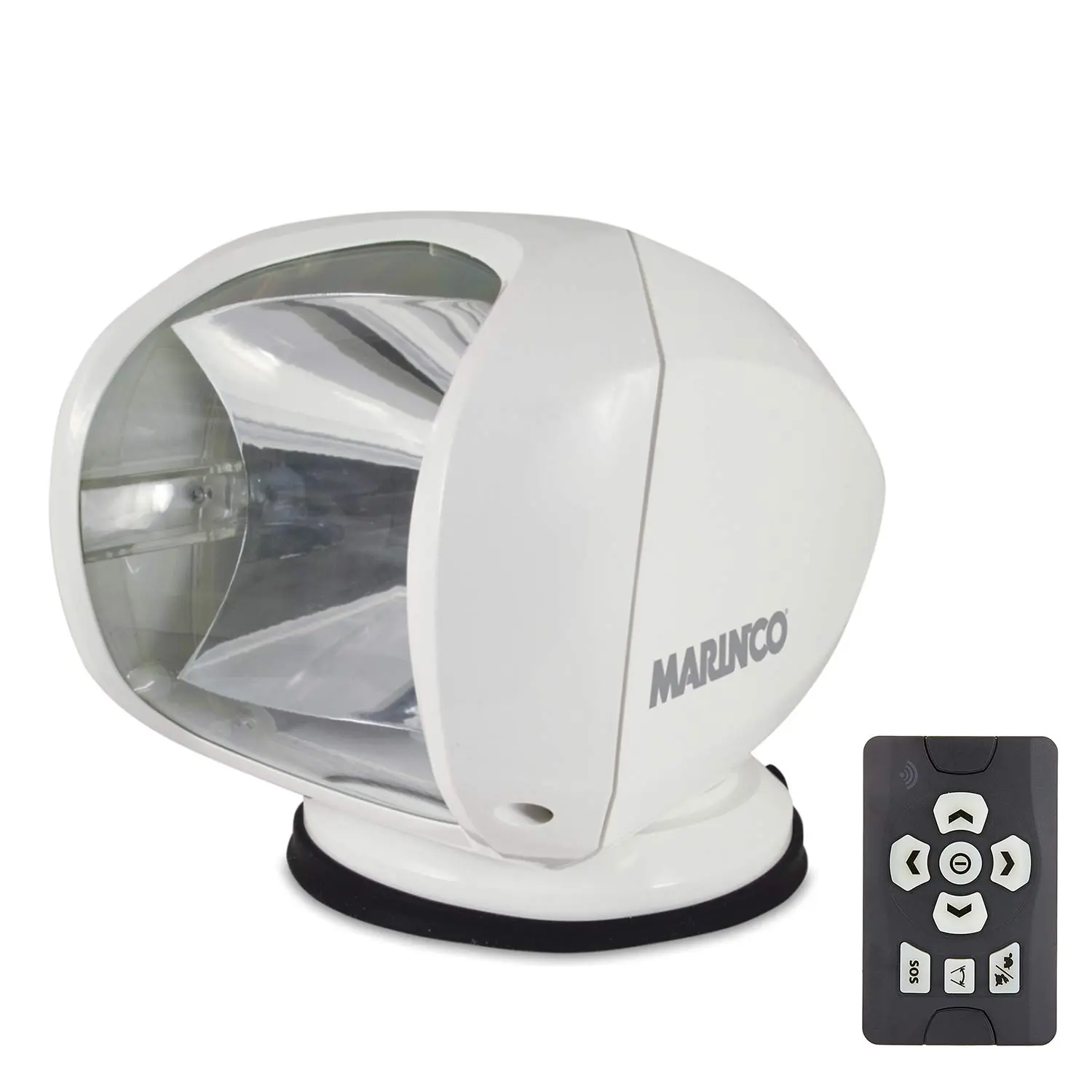

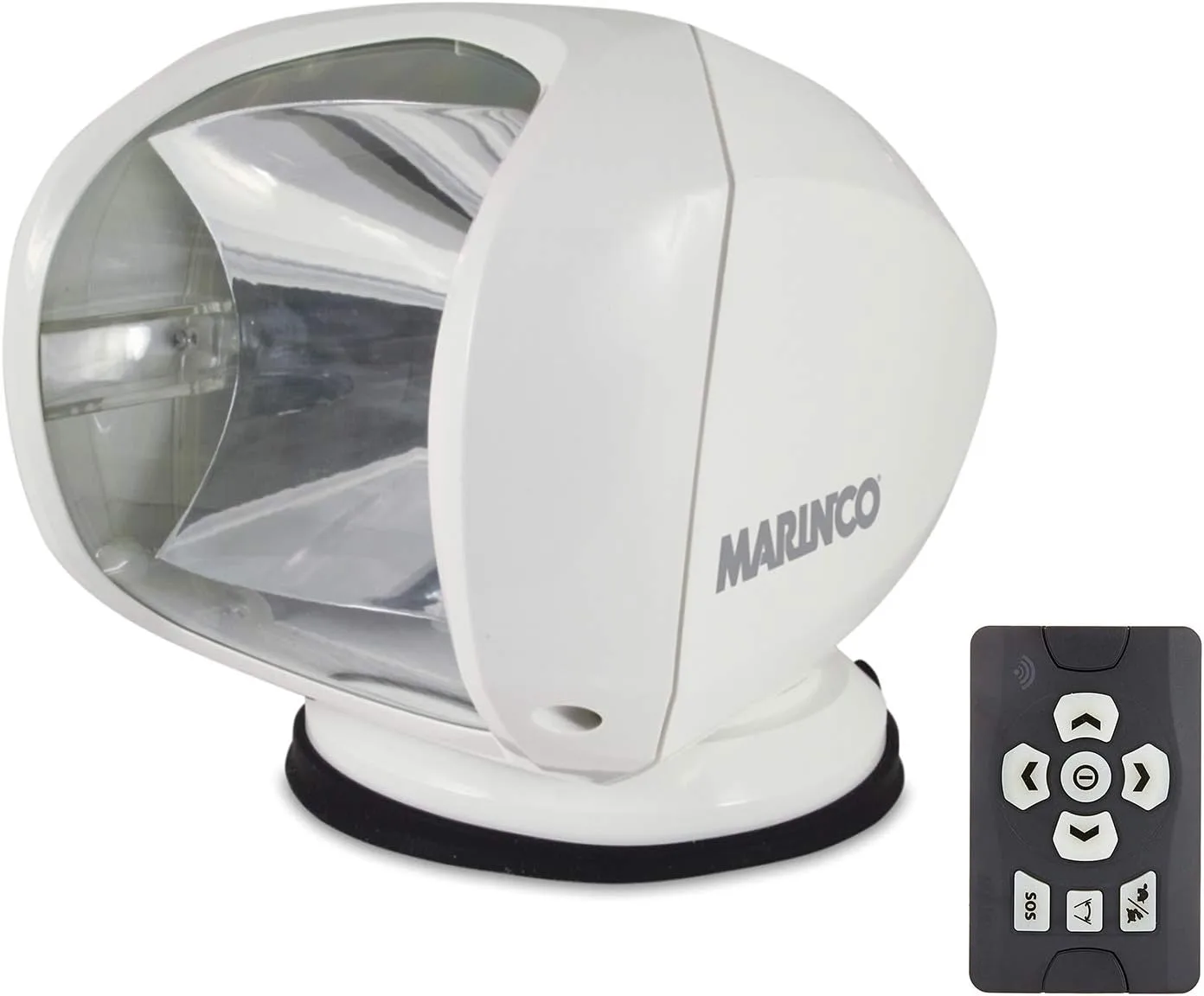

Marinco SPL-12W Precision Spot Light, 12/24 Volt, 100W, White
Customize
Wireless Remote Spot Light. Universal 12/24V circuit with bright 100W, H3 halogen bulb. UV resistant, IP56 weatherproof ABS housing and Lexan lens O-ring sealed housing, designed for the harsh marine environment - moisture, salt, shock and vibration tested. Universal snap-in mounting system (can be mounted upside down). Super-quiet, all-weather motor with limit stops provides a full range of coverage 370° sweep and 120° Tilt (75° up and 45° down). One touch auto sweep and S.O.S. function. Wireless dash mount remote standard; (hard wired & handheld remotes are optional). 3-Year limited warranty. Bulb: 100W, H3 Halogen. Power (Input voltage): 12/24V. Current draw (idle/in use): 0.03 amps / 7.0 amps. Peak Beam Intensity: 210,000 Cp. Peak Beam Distance: 917' (280M). Lux @ 66' (20M): 525 Lux. Coverage at 66' (20M): 132 sq ft (12 sq m). Rotation: 370° (built in limit stops). Tilt: 120° Tilt (75° up & 45° down). Wireless range: 200' (65M). Dimensions: 7.5"W x 7.5"H x 9.25"D (19cm x19cm x 23.5cm). Weight: 3.30lbs (1.5 kg). Housing material: UV resistant PC/ASA. Lens material: UV resistant Lexan. Operating temp range: 5°F - 113°F (-15°C -45°C). IP Rating: IP56. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Universal snap-in mounting system
- Double O-ring sealed housing, designed for the harsh marine environment; moisture, salt, shock and vibration tested
- UV resistant, IP56 Weatherproof ABS housing and Lexan lens
- Universal 12/24 Volt circuit with bright 100W, H3 halogen bulb

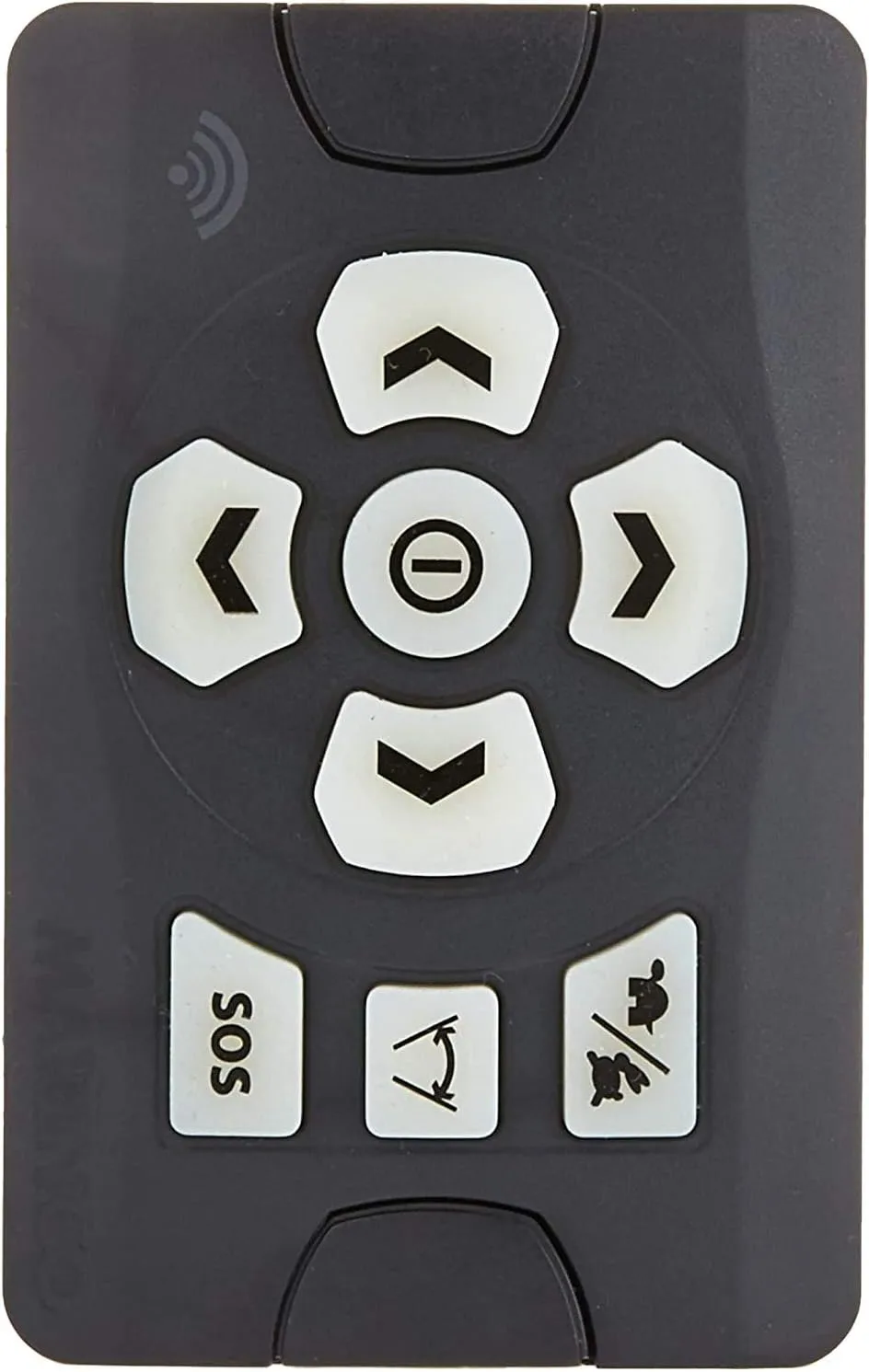

- Wireless dash mount remote standard (hard wired and handheld remotes are optional)
- Double O-ring sealed housing
- Replaceable 100W, H3 Halogen lamp
- Universal 12 & 24V circuit, double O-ring sealed housing, ultra-quiet motor
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Product Details | |
| Bulb Type | Halogen |
| Bulb Watts | 100w |
| Candle Power | 210,000 |
| Finish Type | Glossy |
| Item Hardness | 9H |
| Model | SPL-12W |
| Position | Right |
| Special Features | Waterproof |
| Unit Count | 1.0 Count |
| Wireless | Yes |
| Sizing & Dimensions | |
| Height | 10 inches |
| Length | 8.37 inches |
| Product Dimensions | 8.37 x 10 x 8 inches |
| Weight | 4.6 pounds |
| Width | 8 inches |
| Technical Specifications | |
| Peak Beam Distance | 917' (280M) |
| Peak Beam Intensity | 210,000 Cp |
| Voltage | 24 Volts |
| Voltage - Input Range (Volts) | 12/24v |
| Water Resistance Level | Waterproof |
