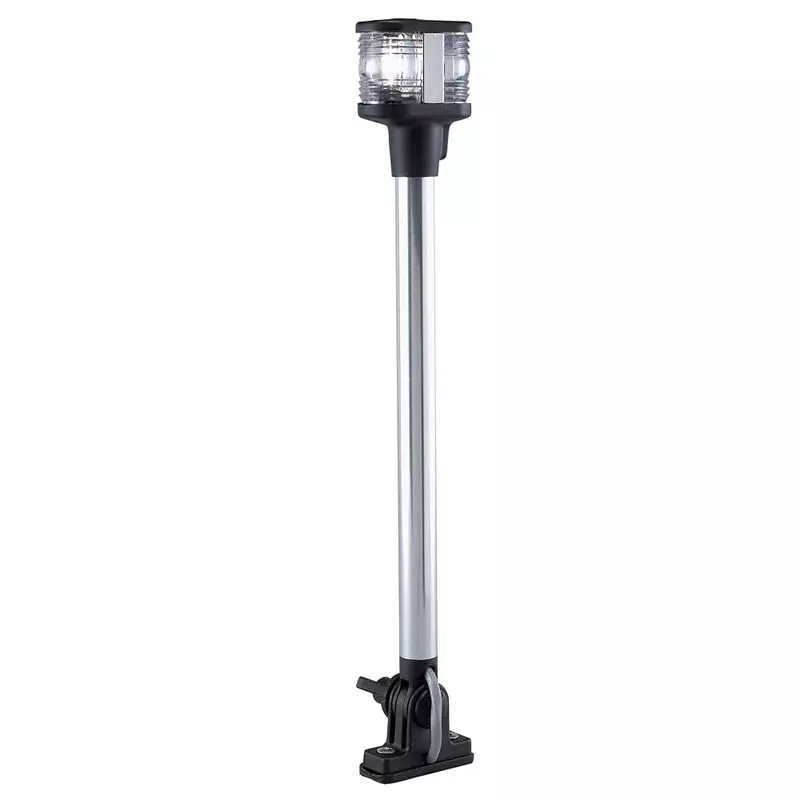

Perko 1181DP0CHR 12V Horizontal-Mount Fold-Down Combination Masthead/White All-Round Navigation Light - 14.25" Height
Customize
Fold Down Combination Masthead/White All-Round Light - Horizontal Mount Certified For Use on Sail or Power Driven Vessels Under 20M (65.6') in Length Features: Horizontal Mount Reduced Glare Design Black Polymer Top with Clear Polymer Lens Black Polymer Base Polymer Adapters for Flat or "V" Type Mount, Contains Notch for Through-Base Wiring Fold-Down Adjustable Angle Specifications: Bulb: 12 Volt (Included) Pole: 3/4" Dia. Anodized Base Dimensions : 2" x 1-1/2" Screw Size: #8, Housing: Black , Lens Color: White , Visible Range (Miles): 3nm , Voltage - Input Range (Volts): 12v , LED: No. Perko's 1181DP0CHR Fold-Down Combination Masthead/White All-Round Light is certified for use on sail or power driven vessels under 20 meters in length. This Combination/Masthead light has a horizontal mount and folds down 90 degrees in either direction opposite of the plane attachment plate. This light features a zinc alloy polymer top, base and lens. It also features a 3/4" anodized aluminum tube. Two 12 volt bulbs are included with the light. The vertical height of the light is 14-1/4" and it has a base dimension of 2" x 1-1/2". The required screw size for installation is #8.
- Required Screw Size: #8
- Vertical Height: 14-1/4"; Base Dimensions: 2" x 1-1/2"
- 3/4" anodized aluminum tube
- Features a zinc alloy polymer top, base and lens
- Horizontal mount; Light folds down 90 degrees in either direction opposite of the plane attachment plate
Specifications:
| Materials & Construction | |
| Color | Silver |
| Lens Color | White |
| Material | Glass |
| Outer Material | Polymer/Alloy (as described in marketing content) |
| Product Details | |
| Assembly Required | No |
| Auto Part Position | Top |
| Automotive Fit Type | Universal Fit |
| Housing | Black |
| Item model number | 1181DP0CHR |
| Lens Material | Glass |
| Manufacturer Part No | 1181DP0CHR |
| Special Feature | Waterproof |
| Specific Uses For Product | LightsAndFixtures |
| Unit Count | 1.0 Count |
| UPC | 085226018817 |
| Vehicle Service Type | Boat |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 14 inches |
| Product Dimensions | 14 x 6 x 6 inches |
| Size | 14 x 6 x 6 inches |
| Weight | 0.141 ounces |
| Width | 6 inches |
| Technical Specifications | |
| Bulb | 12 Volt (Included) |
| LED | No |
| Pole | 3/4" Dia. Anodized |
| Screw Size | #8 |
| Visible Range (Miles) | 3nm |
| Voltage - Input Range (Volts) | 12v |
