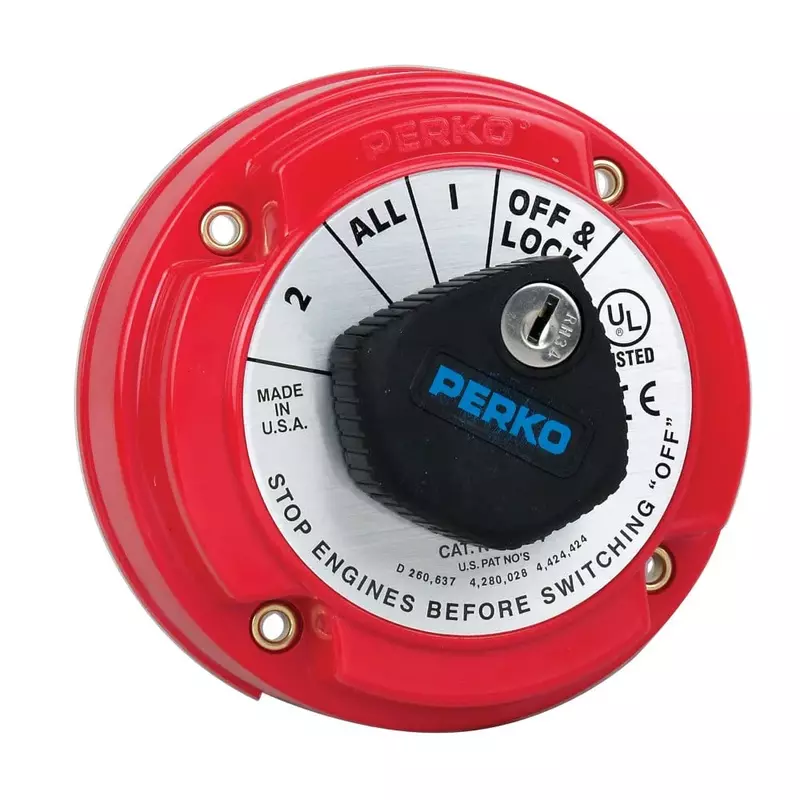

Perko 8504DP Medium Duty Battery Selector Switch with Alternator Field Disconnect and Key Lock , 5-1/4" Dia. x 2-5/8"
PERKO 8504DP medium-duty battery selector switch with alternator field disconnect and key lock. 5-1/4" dia x 2-5/8" depth. Polycarbonate body, brass terminals, ignition protected. 250A continuous / 360A intermittent. 2 positions. Lockable.
$142.53 $142.53
Customize
Available Quantity
2 Product Details
Perko 8504DP medium-duty battery selector switch with alternator field disconnect (AFD) and key lock. Designed for 12, 24, and 32 volt marine electrical systems. Polycarbonate body with brass terminals; ignition protected. Interrupts alternator field current when used with non-unitized alternators if turned OFF while engine is running. Continuous capacity 250 AMPS, 360 AMPS 5 minutes intermittent. Terminal stud size: 5/16". 2 positions. Lockable. Includes quality boat handles. Durable construction with screw terminal connectors and make-before-break contact type. IP54 rated.
- For use with 12, 24, and 32 volt marine electrical systems
- Capacity 250 Amps continuous, 360 Amps intermittent
- Easy Installation
- Built with quality materials
- Fit type: Universal Fit
- Compatible with vehicle type: all-terrain-vehicles
Specifications:
| Materials & Construction | |
| Body Material | Polycarbonate |
| Color | Black |
| Contact Material | Brass |
| Material | Brass |
| Product Details | |
| Actuator Type | Rotary |
| Afd | Yes |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminal |
| Connector Type Detail | Screw Terminal |
| Contact Material | Brass |
| Contact Type | Make-before-break |
| Continuous Amperage | 250a |
| Control Method | Touch |
| Controller Type | Ring |
| Current Rating | 250 Amps |
| Included Components | QUALITY BOAT HANDLES |
| Lockable | Yes |
| Number of Positions | 2 |
| Terminal | marine |
| Terminal Type | marine |
| Warranty Description | LIMITED WARRANTY |
| Sizing & Dimensions | |
| Height | 5.25 inches |
| Length | 2.63 inches |
| Product Dimensions | 2.63 x 5.25 x 5.25 inches |
| Size | 5-1/4" Dia. x 2-5/8" |
| Weight | 0.95 pounds |
| Width | 5.25 inches |
| Technical Specifications | |
| Actuator Type | Rotary |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Control Method | Touch |
| Controller Type | Ring |
| Current Rating | 250 Amps |
| International Protection Rating | IP54 |
| Number of Positions | 2 |
| Operating Voltage | 50 Volts |
