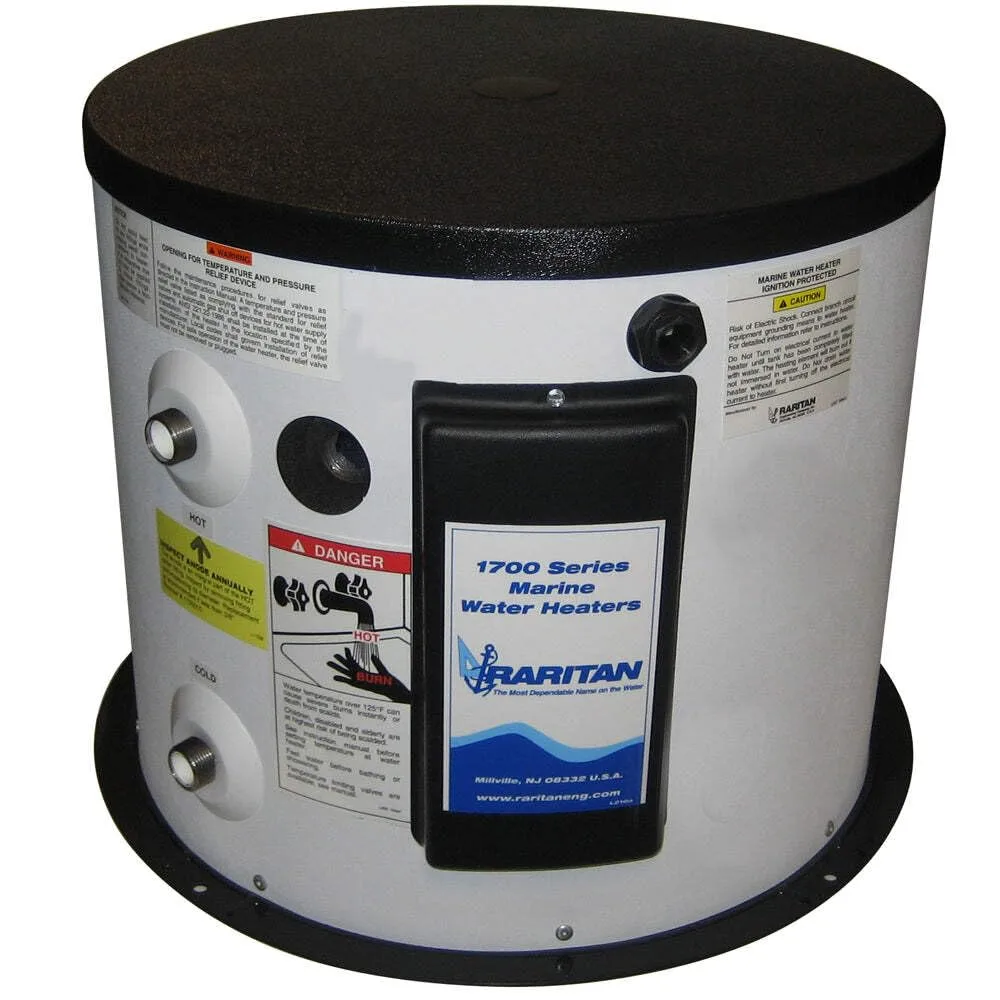

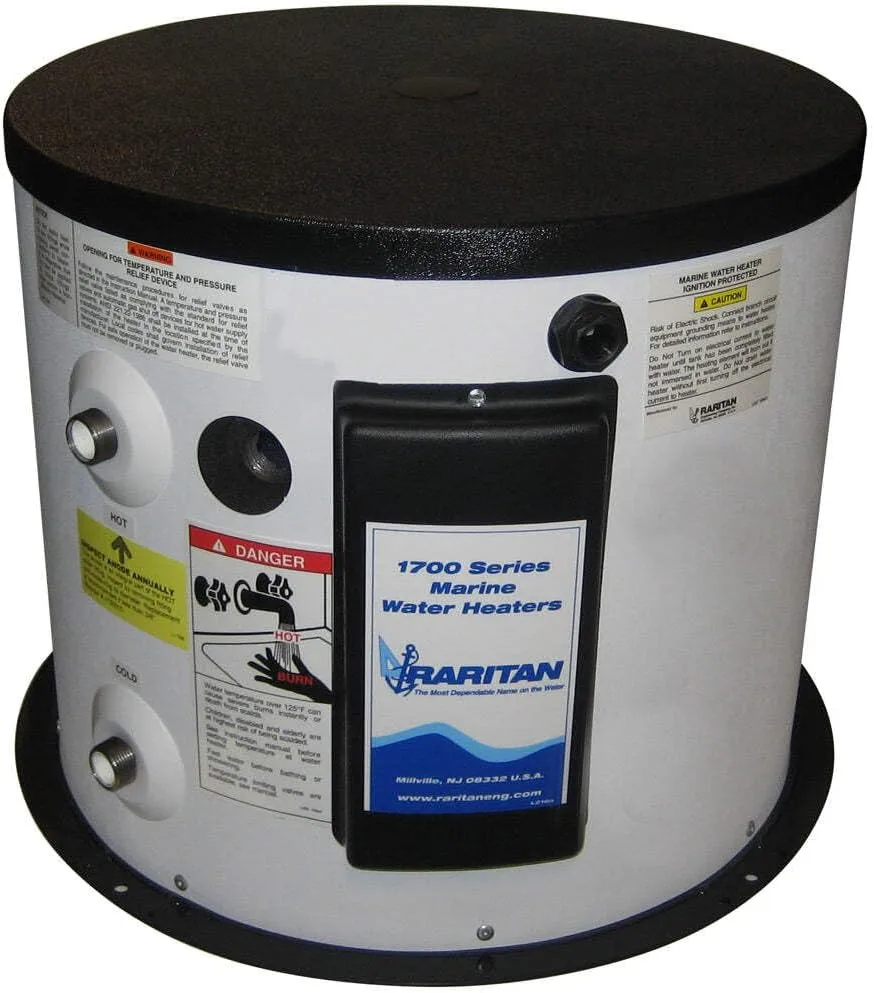

Raritan 12-Gallon Hot Water Heater w/o Heat Exchanger - 120v
Customize
1700 Series Water Heater 120v 12 Gallon W/O Engine Heat Exchanger. The 1700 Series water heater provides hot water for galley and shower. Dense foam insulation provides better and longer heat retention than traditional fiberglass. The tank itself is protected by a 75 PSI T&P (temperature and pressure) relief valve. The cylindrical tank design enables it to withstand more pressure than a cube shaped tank. Heat exchanger models can be connected to the engine cooling system to provide hot water when underway or when generator power is not available. Raritan's heat exchanger is over seven feet in length and evenly coiled throughout the tank interior for rapid, efficient hot water. Raritan water heaters use an ignition-protected thermostat adjustable from 110° to 160°F with a safety shut down limit of 190°F. All models have plumbing connections on the same side to simplify installation. Hot and cold water connections are 3/4" male NPT. Benefits include simple installation, proven long-life design, glass-lined steel tank for long life and high efficiency, attractive polymer jacket resisting corrosion, replaceable magnesium anode, CFC-free foam insulation, and a five-year limited warranty on the tank with a two-year limited warranty on the unit.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Glass-lined steel |
| Outer Material | Glass-lined steel |
| Product Details | |
| Efficiency | High Efficiency |
| Included Components | Great Product |
| Is Electric | Yes |
| Item Depth | 23 inches |
| Item Dimensions Lx Wx H | 23 x 23 x 21 inches |
| Item Package Dimensions L x W x H | 23 x 23 x 21 inches |
| Maximum Pressure | 75 Pound per Square Inch |
| Model Name | 171201 |
| Mounting Type | Floor |
| Number of Items | 1 |
| Size | One Size |
| Special Feature | Dense Foam Insulation, 75 PSI T&P Relief Valve |
| Style | Adjustable |
| Voltage | 120 Volts |
| Warranty Description | Warranty |
| Wattage | 12 KW |
| Sizing & Dimensions | |
| Height | 21 inches |
| Length | 23 inches |
| Product Dimensions | 23 x 23 x 21 inches |
| Size | 12 Gallons |
| Weight | 50 pounds |
| Width | 23 inches |
| Technical Specifications | |
| Maximum Pressure | 75 Pound per Square Inch |
| Voltage | 120 Volts |
| Warranty | Warranty |
| Wattage | 12 KW |
