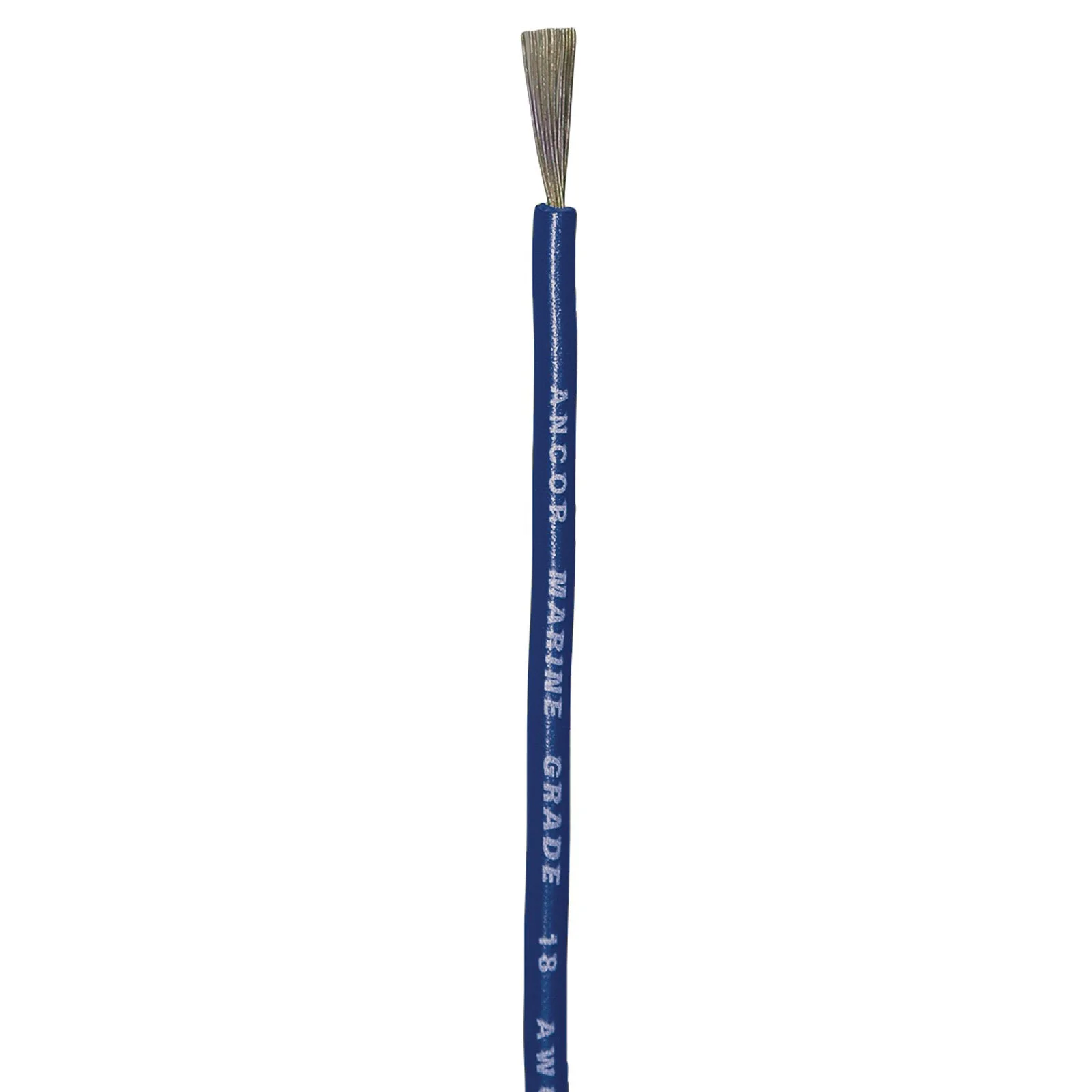

Ancor 100150 Marine Grade Electrical Primary Tinned Copper Boat Wiring (18-Gauge, Dark Blue, 500-Feet)
Customize
Dark Blue 18 AWG Tinned Copper Wire - 500' Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. Manufactured from individual copper strands and tinned to perform in the harshest marine environments. 500 Feet of Dark Blue 18 AWG marine grade wire. Wire Gauge: 18 AWG. Nominal O.D. (inches): 7/64. Nominal O.D. (mm): 3. Ideal for boat electrical systems, battery and DC wiring where corrosion resistance and flexibility are required.
- Sport type: Boating
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- 500 Feet of Dark Blue 18 AWG marine grade wire
Specifications:
| Materials & Construction | |
| Color | Dark Blue |
| Material | Tinned Copper |
| Product Details | |
| Included Components | Does not apply |
| No. of wires | 1 |
| Number of Cable Strands | Multi Strand |
| Style | 18 Awg |
| Voltage | 600 Volts |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 7 x 5 inches |
| Size | 500 Feet |
| Weight | 5.2 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Style Detail | 18 Awg |
| Warranty | As labeled |
