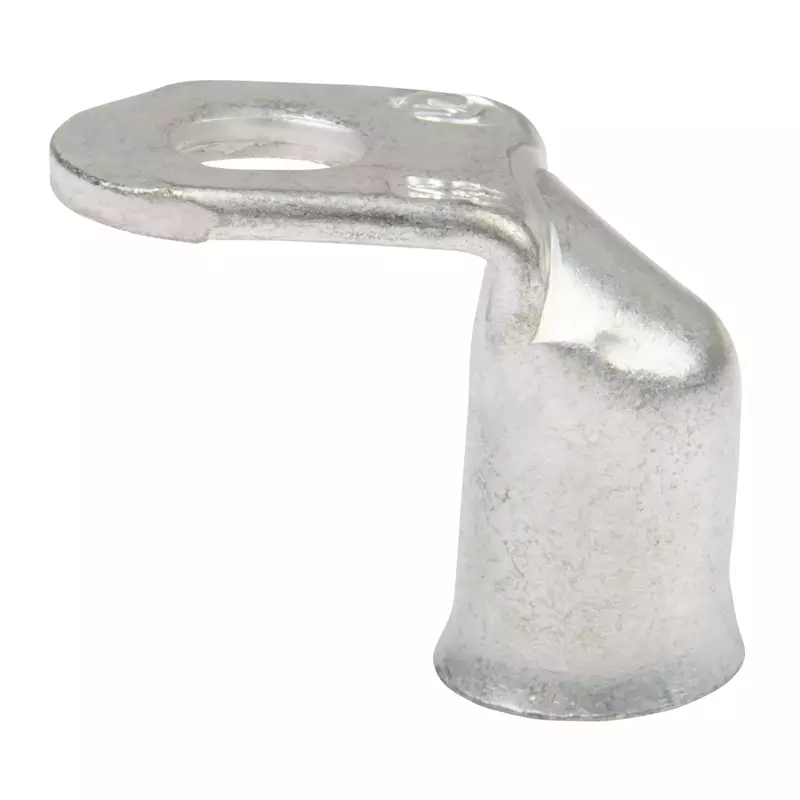

Ancor 262716 Tinned Lug 90degree #3/0 3/8" , 2pc
ANCOR 90° tinned copper lug for 3/0 AWG with 3/8" stud. Marine-grade, 100% tin-plated copper resists corrosion. Seamless barrel for strong crimps. Non-insulated. 2-piece pack.
$15.99 $15.99
Customize
Available Quantity
2 Product Details
Ancor Marine Grade® 90° tinned copper lugs (2-piece) for 3/0 AWG with 3/8" stud. Manufactured from heavy-duty annealed tinned copper to maximize current flow and resist corrosion from salt and moisture. Features a seamless barrel design for maximum strength when crimped and a closed end to seal out moisture. UL 486A rated. 90° bend for ease of wire routing. Package Qty: 2. Heat Shrink: No. Gauge: 3/0 AWG. Type: Lugs. Post Size: 3/8".
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 3/8", 9.5 mm
- 104 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 3/0 AWG 3/8", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Copper |
| Outer Material | Non-Insulated |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Gauge | 3/0 Awg |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Number of Items | 1 |
| Specification Met | Ul |
| Stud Size | 3/8 |
| Temperature Rating | 221 degree celsius |
| Terminal | Screw Terminal |
| Type | Lugs |
| Unit Count | 1.0 Count |
| UPC | 091887991802 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 2 x 1 inches |
| Size | 2 Pack |
| Weight | 1.6 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Specification Met | Ul |
| Temperature Rating | 221 degree celsius |
