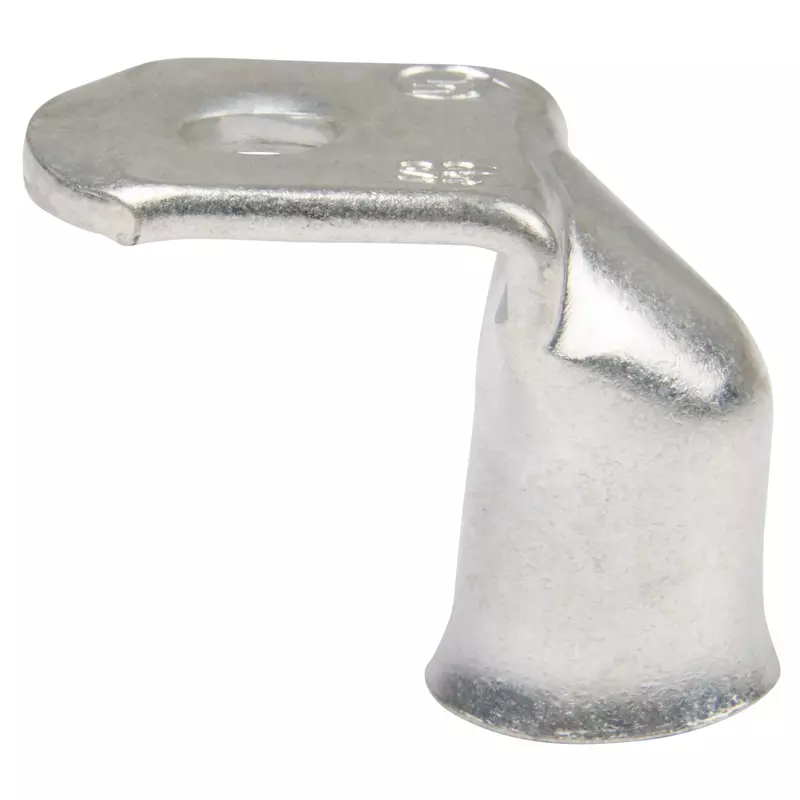

Ancor 262725 Tinned Lug 90degree #4/0 5/16", 2pc Silver
ANCOR 90° tinned copper crimp lug, 4/0 AWG with 5/16" stud — marine-grade, 100% tin-plated copper resists corrosion; seamless barrel for strong crimps; 2-piece pack, UL 486A.
$18.99 $18.99
Customize
Available Quantity
6 Product Details
Ancor Marine Grade® lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow. 100% tin plated copper resists corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. UL 486A. 90° bend for ease of wire routing. Type: Lugs. Post Size: 5/16". Package Qty: 2. Heat Shrink: No. Gauge: 4/0 AWG. Item Dimensions LxWxH: 2 x 1 x 1 inches. Item Weight: 0.1 Pounds. Package Weight: 0.08 Kilograms.
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 5/16", 7.9 mm
- 97 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 4/0 AWG 5/16", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Contact Material | Copper |
| Gauge | 4/0 Awg |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Heat Shrink | No |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Number of Items | 1 |
| Package Qty | 2 |
| Stud Size | 5/16 |
| Terminal | Screw Terminal |
| Type | Lugs |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 2 inches |
| Package Dimensions | 3.5 x 1.57 x 0.94 inches |
| Product Dimensions | 2 x 1 x 1 inches |
| Size | 2 Pack |
| Weight | 1.6 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Specification Met | Ul |
| Temperature Rating | 221 degree celsius |
| Unit Count | 1.0 Count |
